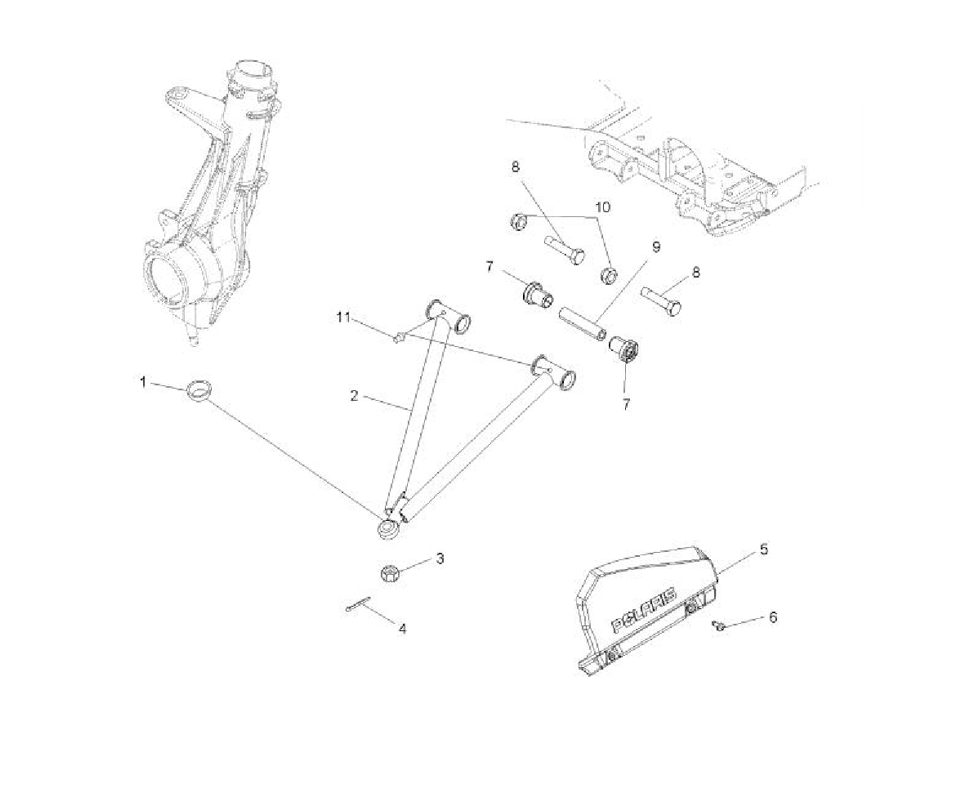

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN TOURING 500 EFI (DN50AF) (BOARDWALK BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
15412658 BOOT-BALLJOINT,GREASELESS,STRTBOOT-BALLJOINT,GREASELESS,STRT
-
21542397-067 WELD-A-FRAME,FLARED, LEFT HAND, BLACKWELD-A-FRAME,FLARED, LEFT HAND, BLACK
-
21542398-067 WELD-A-FRAME,FLARED, RIGHT HAND, BLACKWELD-A-FRAME,FLARED, RIGHT HAND, BLACK
-
37542438 NUT, CASTLENUT, CASTLE
-
47661203 PIN,COTTERPIN,COTTER
-
55436999-070 SHIELD-CV,FRONT,BASIC, LEFT HAND, BLACKSHIELD-CV,FRONT,BASIC, LEFT HAND, BLACK
-
55437000-070 SHIELD-CV,FRONT,BASIC, RIGHT HAND, BLACKSHIELD-CV,FRONT,BASIC, RIGHT HAND, BLACK
-
67622084 SCREWSCREW
-
75436832 BUSHING-CONTROL ARM,1.285BUSHING-CONTROL ARM,1.285
-
87518523 SCR-3/8-24X3 3/4 HXFLG GR5-YSCR-3/8-24X3 3/4 HXFLG GR5-Y
-
95134882 SHAFT-A-ARM,SHORTSHAFT-A-ARM,SHORT
-
107547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
117080433 FITTING,LUBRICATION,THREADED(10FITTING,LUBRICATION,THREADED(10
