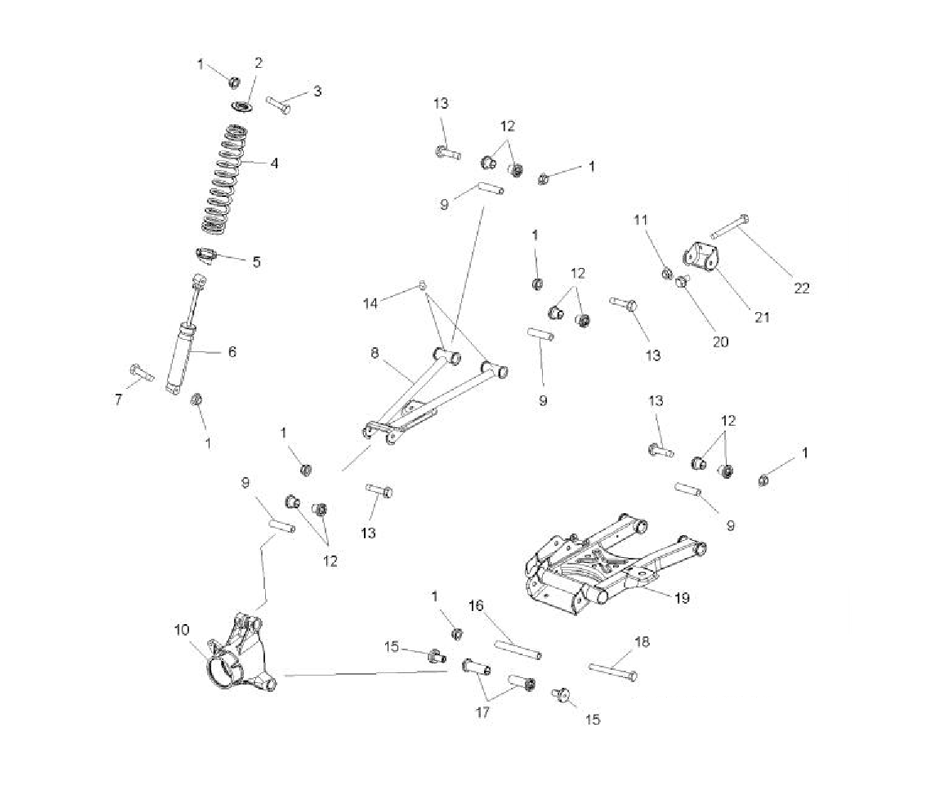

SUSPENSION - REAR для Polaris SPORTSMAN TOURING 500 EFI (DN50AF) (BOARDWALK BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
17547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
25251753 RETAINER-SPRING,STEEL (BUILT 3/03/08 AND BEFORE)RETAINER-SPRING,STEEL (BUILT 3/03/08 AND BEFORE)
-
25251753 RETAINER-SPRING,STEEL (BUILT 3/04/08 AND AFTER)RETAINER-SPRING,STEEL (BUILT 3/04/08 AND AFTER)
-
37515433 SCREWSCREW
-
47043375-067 SPRING-COMP,REAR,120#/IN, BLACKSPRING-COMP,REAR,120#/IN, BLACK
-
55630551 CAM,ADJUST,SPRINGCAM,ADJUST,SPRING
-
67043374 SHOCK-RR,IRSSHOCK-RR,IRS
-
77515415 SCREWSCREW
-
81015848-067 WELD-UPPER CONTROL ARM, LEFT HAND, BLACKWELD-UPPER CONTROL ARM, LEFT HAND, BLACK
-
81015849-067 WELD-UPPER CONTROL ARM, RIGHT HAND, BLACKWELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
-
95134882 SHAFT-A-ARM,SHORTSHAFT-A-ARM,SHORT
-
105134984 CARRIER-BEARING,WHEEL(MACH)LEFT HANDCARRIER-BEARING,WHEEL(MACH)LEFT HAND
-
105134985 CARRIER-BEARING,WHEEL(MACH)RIGHT HANDCARRIER-BEARING,WHEEL(MACH)RIGHT HAND
-
117547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
125436832 BUSHING-CONTROL ARM,1.285BUSHING-CONTROL ARM,1.285
-
137518523 SCR-3/8-24X3 3/4 HXFLG GR5-YSCR-3/8-24X3 3/4 HXFLG GR5-Y
-
147080433 FITTING,LUBRICATION,THREADEDFITTING,LUBRICATION,THREADED
-
155136102 BUSHING-PIVOT,WEAR,10.33 DBUSHING-PIVOT,WEAR,10.33 D
-
165136101 TUBE-PIVOT,107.26MM,10.33IDTUBE-PIVOT,107.26MM,10.33ID
-
175437229 BUSHING-CONTROL ARM,WEARBUSHING-CONTROL ARM,WEAR
-
187518522 SCR-3/8-24X6-1/2 HXFLG,GR5-YSCR-3/8-24X6-1/2 HXFLG,GR5-Y
-
191016022-067 WELD-CONTROL,LOWER, LEFT HAND, BLACKWELD-CONTROL,LOWER, LEFT HAND, BLACK
-
191016023-067 WELD-CONTROL,LOWER, RIGHT HAND, BLACKWELD-CONTROL,LOWER, RIGHT HAND, BLACK
-
207517632 SCREWSCREW
-
215249289 BRKT-CONTROL-ARM,PIVOTBRKT-CONTROL-ARM,PIVOT
-
227518365 BOLT-3/8-16X7 HEX FLANGE GR5BOLT-3/8-16X7 HEX FLANGE GR5
