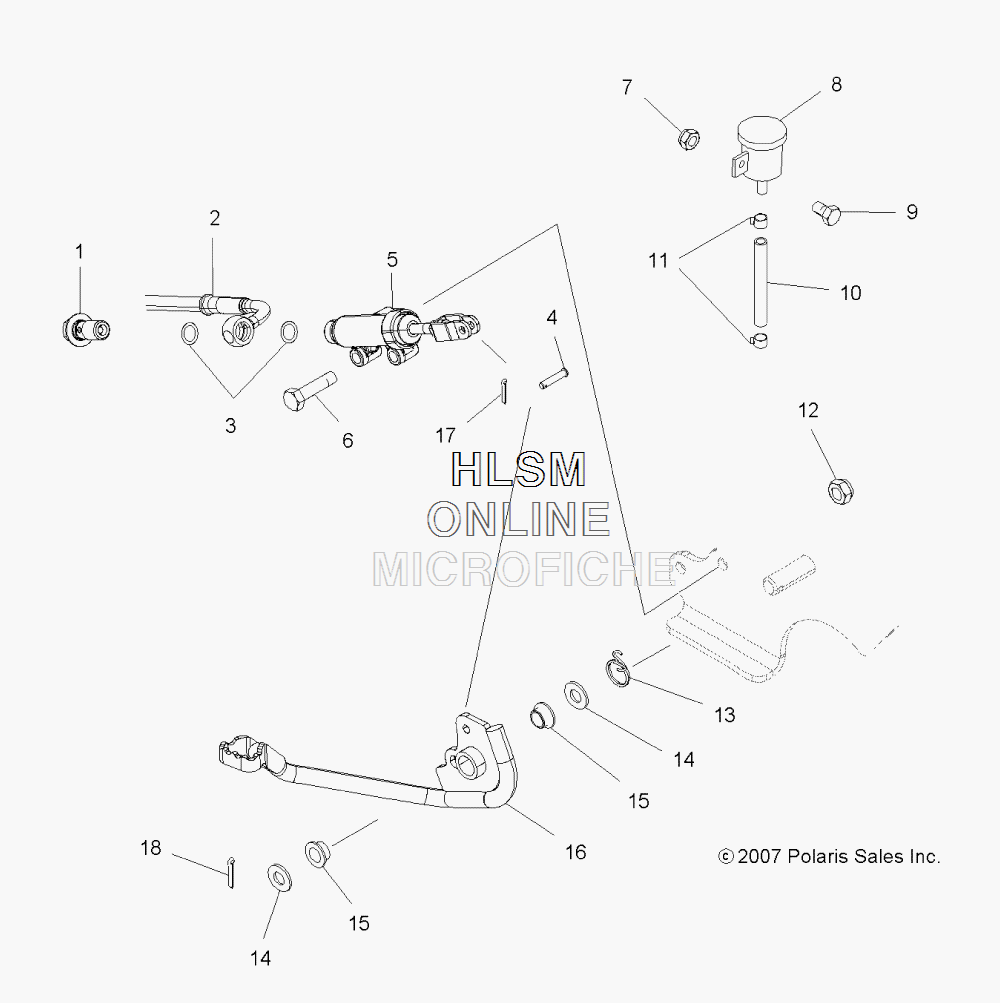

BRAKE - PEDAL W/MASTER CYLINDER для Polaris SPORTSMAN TOURING 500 EFI QUAD (DN50EA) (STEALTH BLACK) - 2008 года выпуска
-
№АртикулНазвание
-
11910499 BOLT, BANJOBOLT, BANJO
-
21911104 LINE, BRAKE, FOOT TO J/BLINE, BRAKE, FOOT TO J/B
-
35413212 SEALSEAL
-
47661830 PIN, CLEVISPIN, CLEVIS
-
51910995 ASM., MASTER CYLINDER, FOOTASM., MASTER CYLINDER, FOOT
-
67515306 SCREWSCREW
-
77542122 NUT, NYLOKNUT, NYLOK
-
81910674 ASM., RESERVOIR, BRAKE, REARASM., RESERVOIR, BRAKE, REAR
-
97512240 SCREWSCREW
-
101911107 HOSE, RESERVOIRHOSE, RESERVOIR
-
117080003 CLAMP, HOSECLAMP, HOSE
-
127542324 NUT, NYLOKNUT, NYLOK
-
137043126 SPRING, TORSIONSPRING, TORSION
-
147555919 WASHERWASHER
-
155433189 BUSHING, PEDAL, PIVOTBUSHING, PEDAL, PIVOT
-
161015631-067 PEDAL, BRAKE (BLACK)PEDAL, BRAKE (BLACK)
-
177661900 PIN, COTTERPIN, COTTER
-
187661401 PIN, COTTERPIN, COTTER
