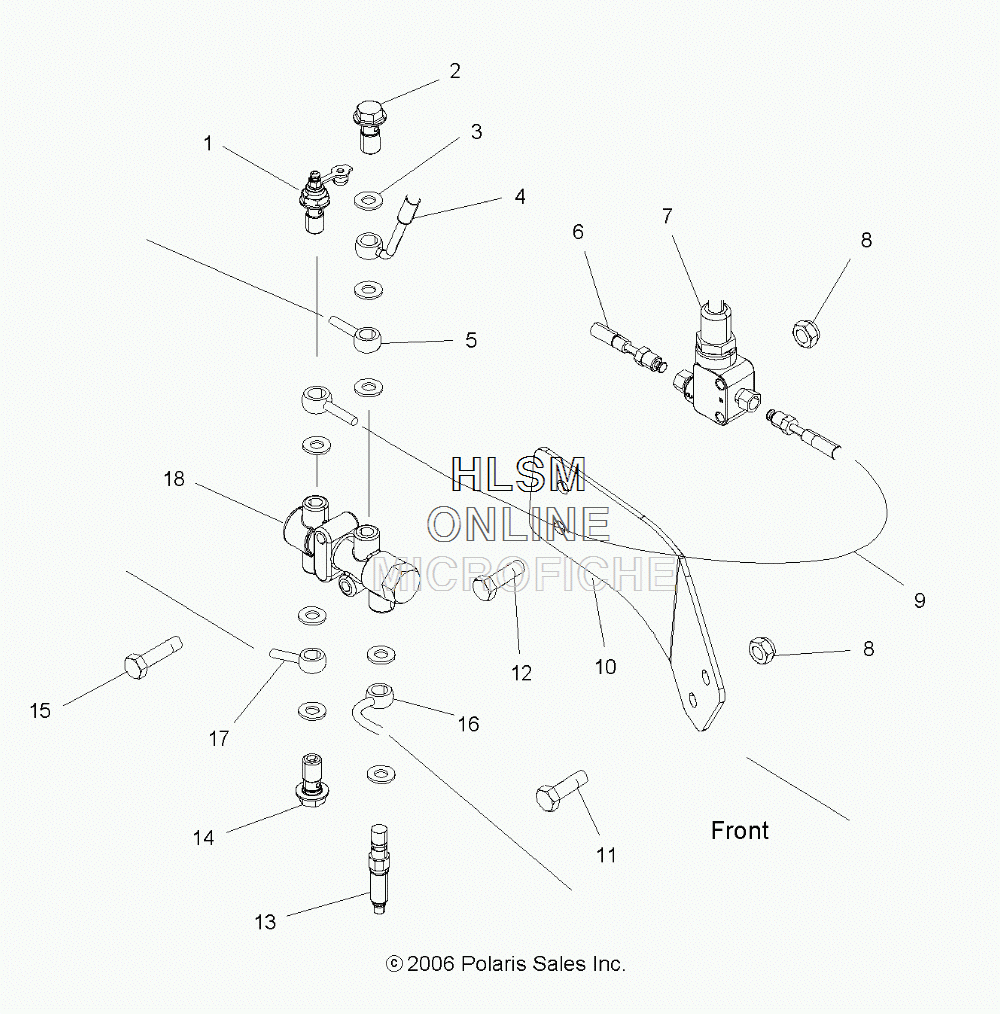

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN TOURING 500 EFI QUAD (DN50EA) (STEALTH BLACK) - 2008 года выпуска
-
№АртикулНазвание
-
11911112 BOLT, BANJO W/BLEEDERBOLT, BANJO W/BLEEDER
-
21911194 BOLT, BANJO, DOUBLEBOLT, BANJO, DOUBLE
-
35413212 SEALSEAL
-
41911103 LINE, HAND TO J/BLINE, HAND TO J/B
-
51911106 LINE, BRAKE, REAR, AUX.LINE, BRAKE, REAR, AUX.
-
61911105 LINE, REARLINE, REAR
-
71911109 VALVE, REDUCINGVALVE, REDUCING
-
87542122 NUT, NYLOKNUT, NYLOK
-
91911200 LINE, J/B TO P/VALVELINE, J/B TO P/VALVE
-
105250742-067 PLATE, VALVE (BLACK)PLATE, VALVE (BLACK)
-
117512242 SCREWSCREW
-
127512130 SCREWSCREW
-
134011478 SWITCH, PRESSURESWITCH, PRESSURE
-
141910958 BOLT, BANJOBOLT, BANJO
-
157517451 SCREWSCREW
-
161911183 LINE, FRONT BRAKELINE, FRONT BRAKE
-
171911104 LINE, FOOT TO J/BLINE, FOOT TO J/B
-
181911185 BLOCK, DISTRIBUTIONBLOCK, DISTRIBUTION
