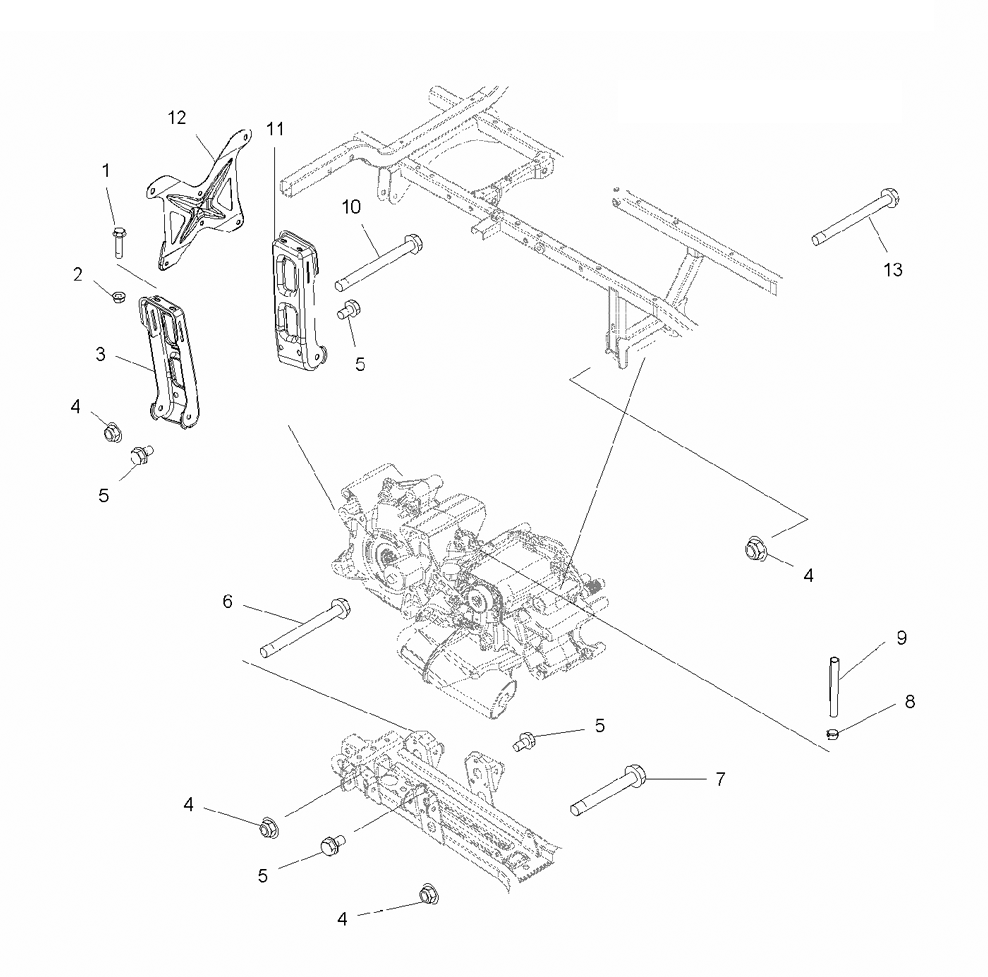

GEARCASE MOUNTING для Polaris SPORTSMAN X2 500 EFI (TN50AX) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
17518876 SCR-5/16-18X2, HX/FL, GR 5-YSCR-5/16-18X2, HX/FL, GR 5-Y
-
27542343 NUT, FLANGENUT, FLANGE
-
35250542-067 SUPPORT-RR, RIGHT HAND, BLACKSUPPORT-RR, RIGHT HAND, BLACK
-
47547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
57517632 SCREWSCREW
-
67518365 BOLT-3/8-16X7 HEX FLANGE GR5BOLT-3/8-16X7 HEX FLANGE GR5
-
77518279 SCR-3/8-16X4 FLG HX GR5 ZSCR-3/8-16X4 FLG HX GR5 Z
-
87080307 CLAMP, HOSECLAMP, HOSE
-
98450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
107518365 BOLT-3/8-16X7 HEX FLANGE GR5BOLT-3/8-16X7 HEX FLANGE GR5
-
115250541-067 SUPPORT-RR, LEFT HAND, BLACKSUPPORT-RR, LEFT HAND, BLACK
-
125250178-067 BRKT-SUPPORT, RR, BLACKBRKT-SUPPORT, RR, BLACK
-
137517642 SCREWSCREW
