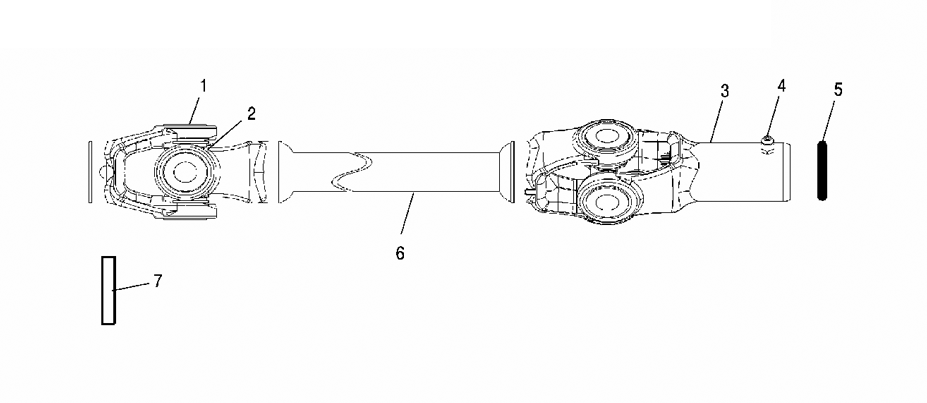

SHAFT - PROP - FRONT для Polaris SPORTSMAN X2 500 EFI (TN50AX) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
-1332368 ASM-PROPSHAFT, FRONT [INCL. 1-4,6] [BUILT 10/29/07 AND BEFORE]ASM-PROPSHAFT, FRONT [INCL. 1-4,6] [BUILT 10/29/07 AND BEFORE]
-
-1332617 ASM-PROPSHAFT, FRONT [INCL. 1-4,6] [BUILT 10/30/07 AND AFTER]ASM-PROPSHAFT, FRONT [INCL. 1-4,6] [BUILT 10/30/07 AND AFTER]
-
13260133 YOKE [BUILT 10/29/07 AND BEFORE]YOKE [BUILT 10/29/07 AND BEFORE]
-
12203704 FITTING-YOKE (PO10-2LJC) [BUILT 10/30/07 AND AFTER]FITTING-YOKE (PO10-2LJC) [BUILT 10/30/07 AND AFTER]
-
22202015 KIT, CROSS AND BEARING, NONGREASE [BUILT 10/29/07 AND BEFORE]KIT, CROSS AND BEARING, NONGREASE [BUILT 10/29/07 AND BEFORE]
-
22203705 KIT, CROSS AND BEARING, NONGREASE [BUILT 10/30/07 AND AFTER]KIT, CROSS AND BEARING, NONGREASE [BUILT 10/30/07 AND AFTER]
-
33260131 YOKE [BUILT 10/29/07 AND BEFORE]YOKE [BUILT 10/29/07 AND BEFORE]
-
32203698 YOKE-SLIP W/FITTING [INCL. 4] [BUILT 10/30/07 AND AFTER]YOKE-SLIP W/FITTING [INCL. 4] [BUILT 10/30/07 AND AFTER]
-
47080424 FITTING, LUBRICATION [BUILT 10/29/07 AND BEFORE]FITTING, LUBRICATION [BUILT 10/29/07 AND BEFORE]
-
55411092 O-RINGO-RING
-
61332401 SHAFT-PROP, 24.11, SVC [BUILT 10/29/07 AND BEFORE]SHAFT-PROP, 24.11, SVC [BUILT 10/29/07 AND BEFORE]
-
77661913 PIN, SPRINGPIN, SPRING
