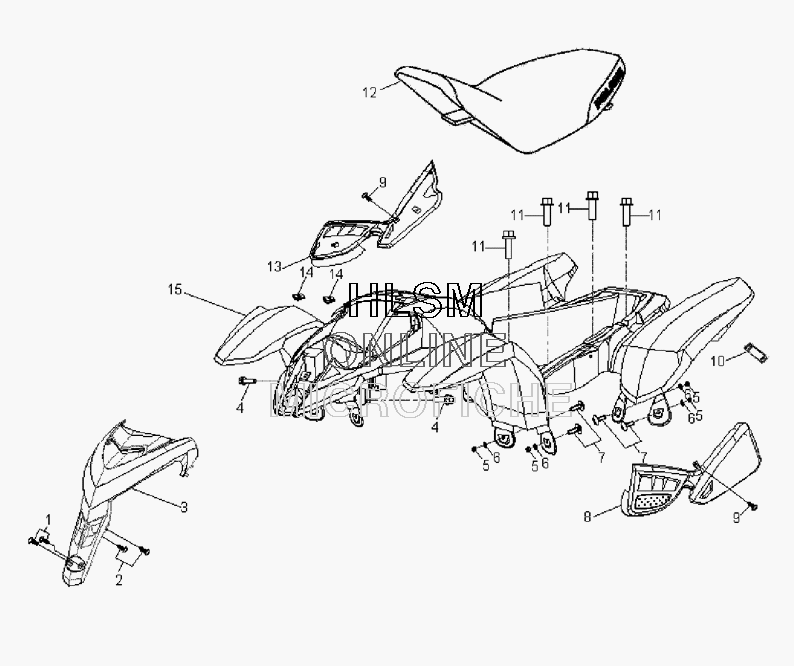

CAB - SEAT для Polaris OUTLAW 50 (A09KA05AB) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
10451812 SCREW-TAPPING, 4MMSCREW-TAPPING, 4MM
-
20451766 SCREW-TAPPING, 4MMSCREW-TAPPING, 4MM
-
30451317-133 COVER-FRONT, PRED Y-6, WHITECOVER-FRONT, PRED Y-6, WHITE
-
40450824 BOLT-W/WSHR, HEXBOLT-W/WSHR, HEX
-
50450741 NUT, LOCKNUT, LOCK
-
60450710 WASHER-PLAINWASHER-PLAIN
-
70450622 BOLT-PHILLIPSBOLT-PHILLIPS
-
80451325-133 PANEL-SIDE, LEFT HAND PRED Y-6, WHITEPANEL-SIDE, LEFT HAND PRED Y-6, WHITE
-
90450676 SCREW-TAPPINGSCREW-TAPPING
-
100451140 STRAP-BATTERYSTRAP-BATTERY
-
110452215 BOLT-HEXBOLT-HEX
-
120451328-070 ASM-SEAT, PRED Y-6, BLACKASM-SEAT, PRED Y-6, BLACK
-
130451326-133 PANEL-SIDE, RIGHT HAND PRED Y-6, WHITEPANEL-SIDE, RIGHT HAND PRED Y-6, WHITE
-
140450752 U-NUT(10)U-NUT(10)
-
150454222-293 ASM-CAB, OUTLAW 50, 4STRK, REDASM-CAB, OUTLAW 50, 4STRK, RED
