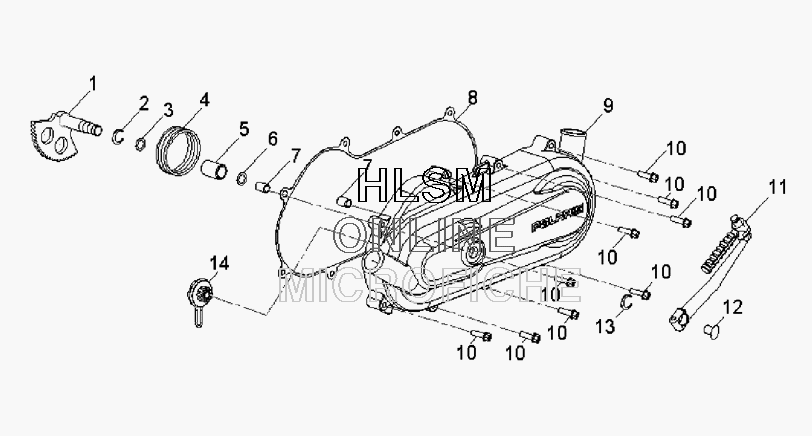

CLUTCH COVER для Polaris OUTLAW 50 (A09KA05AB) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
10453835 ASM-SHAFT, KICK START, PRED 50ASM-SHAFT, KICK START, PRED 50
-
20453836 CLIP-SPRINGCLIP-SPRING
-
30453837 O'RINGO'RING
-
40450184 SPRING-REST, STARTER SHAFTSPRING-REST, STARTER SHAFT
-
50453469 BUSHING-KICK STARTBUSHING-KICK START
-
60453838 WASHERWASHER
-
70452342 PIN-DOWELPIN-DOWEL
-
80453422 GASKET-CLUTCH COVERGASKET-CLUTCH COVER
-
90453839 COVER-CLUTCH, PREDATOR 50COVER-CLUTCH, PREDATOR 50
-
100452331 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
110453840 ASM-KICK START, PREDATOR 50ASM-KICK START, PREDATOR 50
-
120453470 COVER-SPINDLE, KICK STARTCOVER-SPINDLE, KICK START
-
130452339 CLIP RETAINERCLIP RETAINER
-
140451745 ASM-KICK PINIONASM-KICK PINION
