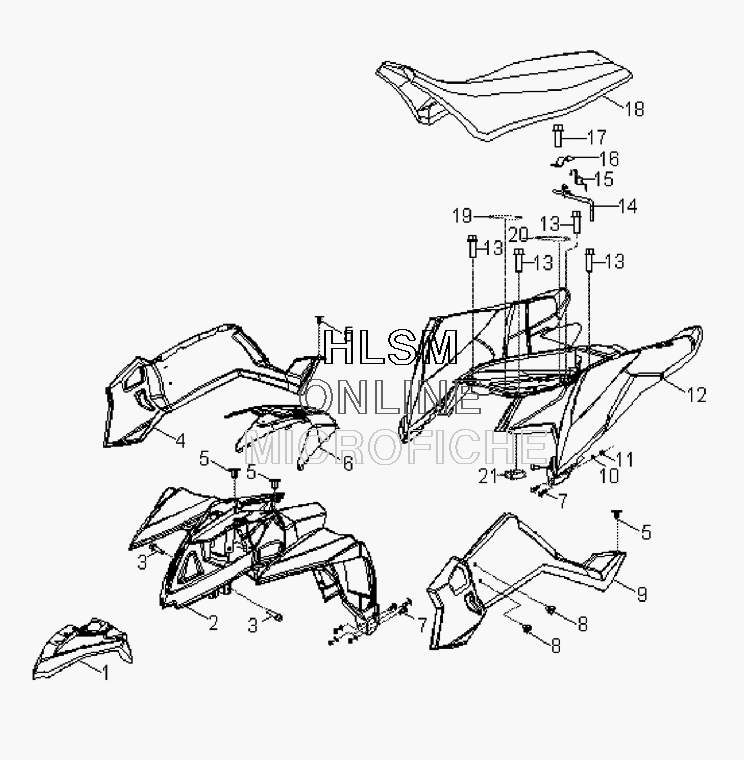

CAB - SEAT для Polaris OUTLAW 90 (A09KA9AD) (PINK) - 2009 года выпуска
-
№АртикулНазвание
-
10453326-133 COVER-FRONT, WHITECOVER-FRONT, WHITE
-
20454219-544 ASM-CAB, FRONT, OUTLW, W/DECAL, PNKASM-CAB, FRONT, OUTLW, W/DECAL, PNK
-
30450824 BOLT-W/WSHR, HEX(10)BOLT-W/WSHR, HEX(10)
-
40453324-133 PANEL-SIDE, RIGHT HAND, WHITEPANEL-SIDE, RIGHT HAND, WHITE
-
50451076 RIVET, PLASTICRIVET, PLASTIC
-
60453325-133 COVER-FUEL TANK, WHITECOVER-FUEL TANK, WHITE
-
70450622 BOLT-PHILLIPSBOLT-PHILLIPS
-
87661855 RIVET-TUFLOK, .315-.325X.787 (50RIVET-TUFLOK, .315-.325X.787 (50
-
90453323-133 PANEL-SIDE, LEFT HAND, WHITEPANEL-SIDE, LEFT HAND, WHITE
-
100450710 WASHER-PLAINWASHER-PLAIN
-
110450741 NUT, LOCKNUT, LOCK
-
120454255-544 ASM-CAB, REAR, OUTLAW, W/DCL, PINKASM-CAB, REAR, OUTLAW, W/DCL, PINK
-
130450340 BOLT-HEXBOLT-HEX
-
140453688 LATCH-SEAT, OUTLAWLATCH-SEAT, OUTLAW
-
150453689 SPRING-SEAT LATCH, OUTLAWSPRING-SEAT LATCH, OUTLAW
-
160453690 RETAINER-SEAT LATCH, OUTLAWRETAINER-SEAT LATCH, OUTLAW
-
170451703 SCREW, TAPPINGSCREW, TAPPING
-
180453327-133 SEAT-BASE W/FOAM, WHITESEAT-BASE W/FOAM, WHITE
-
190453686 O'RINGO'RING
-
200453687 O'RINGO'RING
-
210450346 FOAM, BATTERY PADFOAM, BATTERY PAD
