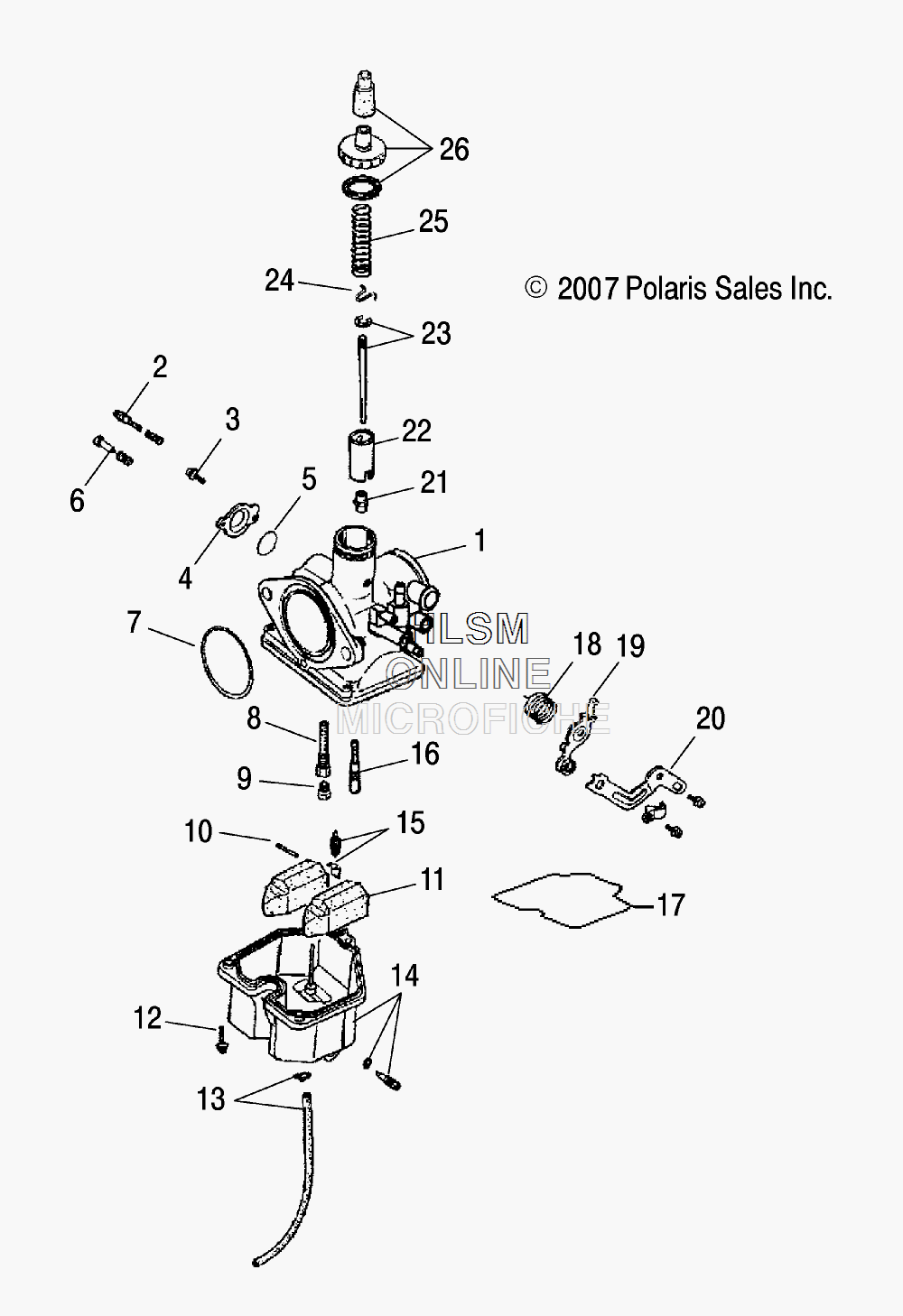

CARBURETOR для Polaris PHOENIX 200 QUAD (A09PB20EB) (WHITE) - 2009 года выпуска
-
№АртикулНазвание
-
10454068 ASM., CARBURETOR (INCL. ALL)ASM., CARBURETOR (INCL. ALL)
-
20452537 ASM., SCREWASM., SCREW
-
30452541 ASM., SCREWASM., SCREW
-
40452547 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
50452550 O-RINGO-RING
-
60452549 ASM., SCREWASM., SCREW
-
70452536 O-RINGO-RING
-
80452545 VALVE, NEEDLEVALVE, NEEDLE
-
90452854 JET, MAIN, CARB, 100JET, MAIN, CARB, 100
-
100452534 PIN, FLOATPIN, FLOAT
-
110452546 FLOATFLOAT
-
120452540 ASM., SCREWASM., SCREW
-
130452552 ASM., DRAIN TUBEASM., DRAIN TUBE
-
140452535 FLOAT, BODYFLOAT, BODY
-
150452533 VALVE, FLOATVALVE, FLOAT
-
160452553 JET, PILOTJET, PILOT
-
170453032 GASKET, CARB, FLOAT BOWLGASKET, CARB, FLOAT BOWL
-
180452543 SPRINGSPRING
-
190452538 CHOKE, LEVERCHOKE, LEVER
-
200453080 SUPPORT, CABLESUPPORT, CABLE
-
210452539 NEEDLE, JETNEEDLE, JET
-
220452554 THROTTLE, VALVETHROTTLE, VALVE
-
230452551 ASM., JET NEEDLEASM., JET NEEDLE
-
240452542 CLIP, NEEDLE (USE POSITION #4)CLIP, NEEDLE (USE POSITION #4)
-
250453758 SPRINGSPRING
-
260452544 ASM., CAPASM., CAP
