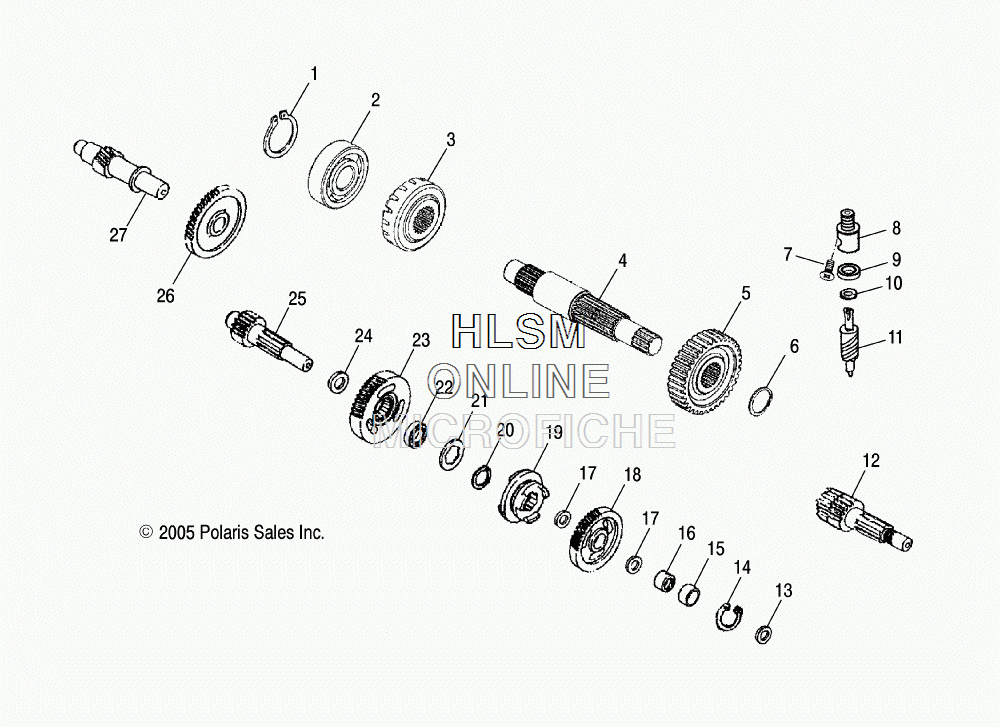

TRANSMISSION - DRIVE CHAIN для Polaris PHOENIX 200 QUAD (A09PB20EB) (WHITE) - 2009 года выпуска
-
№АртикулНазвание
-
10452339 CLIP, RETAINERCLIP, RETAINER
-
20452349 BEARING, BALLBEARING, BALL
-
30452531 GEAR, FINAL RINGGEAR, FINAL RING
-
40452528 SHAFTSHAFT
-
50452530 GEARGEAR
-
60453779 CLIP, CIRCLIP, CIR
-
70452851 BOLT, PHILLIPS, FLAT HEADBOLT, PHILLIPS, FLAT HEAD
-
80452850 JOINT, GEARJOINT, GEAR
-
90452849 SEAL, OILSEAL, OIL
-
100452848 WASHER, PLAINWASHER, PLAIN
-
110452847 GEAR, METERGEAR, METER
-
120452525 SHAFT, DRIVESHAFT, DRIVE
-
130452524 WASHER, FLATWASHER, FLAT
-
140450187 CLIP, CIRCLIP, CIR
-
150453120 COLLAR, SHAFTCOLLAR, SHAFT
-
160452516 BUSHINGBUSHING
-
170452513 WASHER, FLATWASHER, FLAT
-
180454229 ASM., SPUR GEARASM., SPUR GEAR
-
190454228 STATORSTATOR
-
200452789 RING, RETAINERRING, RETAINER
-
210452518 WASHER, SPLINEWASHER, SPLINE
-
220452521 BEARING, NEEDLEBEARING, NEEDLE
-
230452520 GEAR, REVERSEGEAR, REVERSE
-
240452522 WASHER, FLATWASHER, FLAT
-
250453551 SHAFT, TRANSMISSIONSHAFT, TRANSMISSION
-
260452527 GEAR, COUNTERGEAR, COUNTER
-
270452526 SHAFT, COUNTERSHAFT, COUNTER
-
240452514 ASM., SPUR GEAR (INCL. 16,18)ASM., SPUR GEAR (INCL. 16,18)
-
260452519 ASM., REVERSE GEAR (INCL. 22,23)ASM., REVERSE GEAR (INCL. 22,23)
