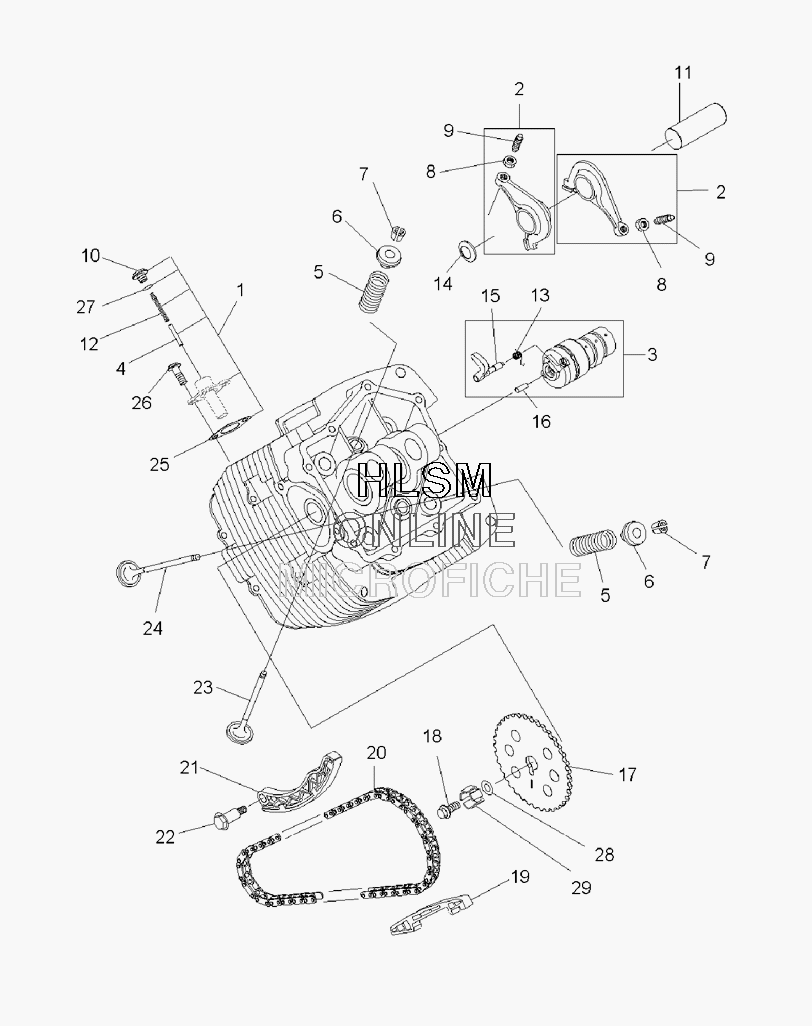

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 300 4X4 (A09LH27AX) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
13086493 TENSIONER,ASM. (INCL. 4,10,12,25,27)TENSIONER,ASM. (INCL. 4,10,12,25,27)
-
23089833 ASM-ROCKER ARM (INCL. 8,9)ASM-ROCKER ARM (INCL. 8,9)
-
33089828 CAMSHAFT-COMPLETE (INCL. 13,15,16)CAMSHAFT-COMPLETE (INCL. 13,15,16)
-
43087132 PINPIN
-
53089831 SPRING-VALVESPRING-VALVE
-
63087203 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
73084908 COLLET,VALVECOLLET,VALVE
-
83088846 NUTNUT
-
93089834 SCREW-ADJSCREW-ADJ
-
103087129 PLUGPLUG
-
113089832 SHAFT-ROCKERSHAFT-ROCKER
-
123087131 SPRING, TENSIONERSPRING, TENSIONER
-
133089830 SPRING-RETURNSPRING-RETURN
-
143085836 WASHER-WAVEWASHER-WAVE
-
153089829 LEVER-REVERSE,COMPLETELEVER-REVERSE,COMPLETE
-
163084899 PIN,DOWELPIN,DOWEL
-
173089835 SPROCKET-2SPROCKET-2
-
183089969 BOLTBOLT
-
193089837 GUIDE-CHAINGUIDE-CHAIN
-
203089836 CHAIN-TIMINGCHAIN-TIMING
-
213089838 LEVER-COMPLETELEVER-COMPLETE
-
223089980 BOLT-PIVOT LEVER COMPLETEBOLT-PIVOT LEVER COMPLETE
-
233085778 VALVE,INTAKEVALVE,INTAKE
-
243086441 VALVE-EXHAUSTVALVE-EXHAUST
-
253086448 GASKET-TENSIONERGASKET-TENSIONER
-
263087150 BOLT-FLANGEBOLT-FLANGE
-
273087130 GASKET, PLUGGASKET, PLUG
-
283089970 WASHERWASHER
-
293089975 PLATEPLATE
