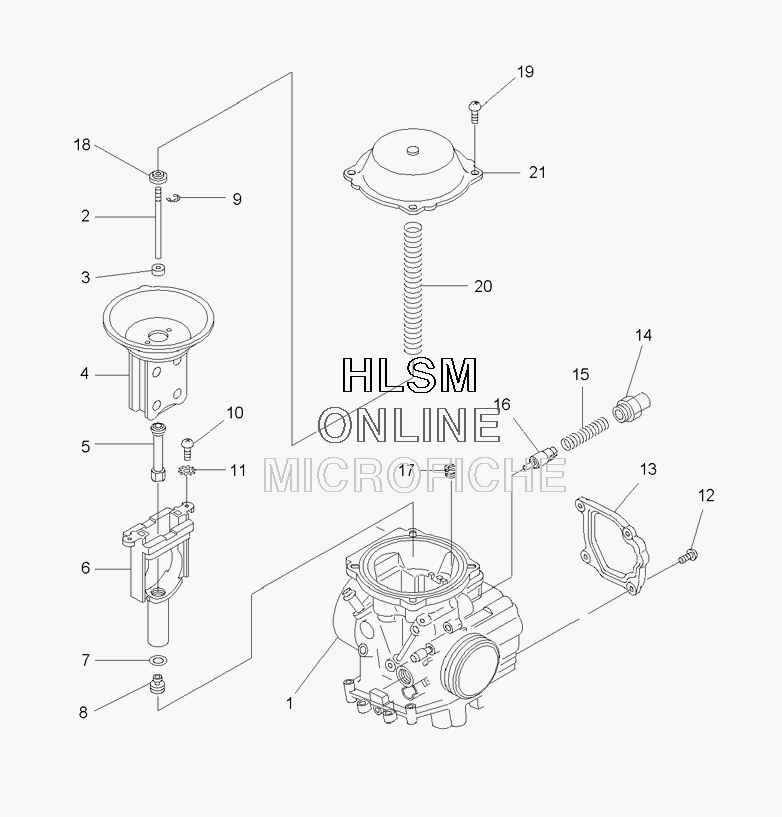

CARBURETOR - UPPER для Polaris SPORTSMAN 300 4X4 (A09LH27AX) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
13131637 ASM-CARB BST34-286E (INCL. 1-21)ASM-CARB BST34-286E (INCL. 1-21)
-
23131638 JET-NEEDLE J8-4HC57JET-NEEDLE J8-4HC57
-
33130752 RINGRING
-
43130506 DIAPHRAGMDIAPHRAGM
-
53131639 NEEDLE-JETNEEDLE-JET
-
63130504 JETBLOCK ASM.JETBLOCK ASM.
-
73130014 WASHERWASHER
-
83130527 MAIN JET,#140MAIN JET,#140
-
93130508 E-RINGE-RING
-
103130541 SCREWSCREW
-
113130540 WASHER,SPRINGWASHER,SPRING
-
123130535 SCREWSCREW
-
133130511 COVERCOVER
-
143130199 HOLDER,GUIDEHOLDER,GUIDE
-
153130538 SPRINGSPRING
-
163131228 PLUNGERPLUNGER
-
173131623 AIR-JET #140AIR-JET #140
-
183130507 RINGRING
-
193130924 SCREWSCREW
-
203131129 SPRINGSPRING
-
213130503 COVERCOVER
