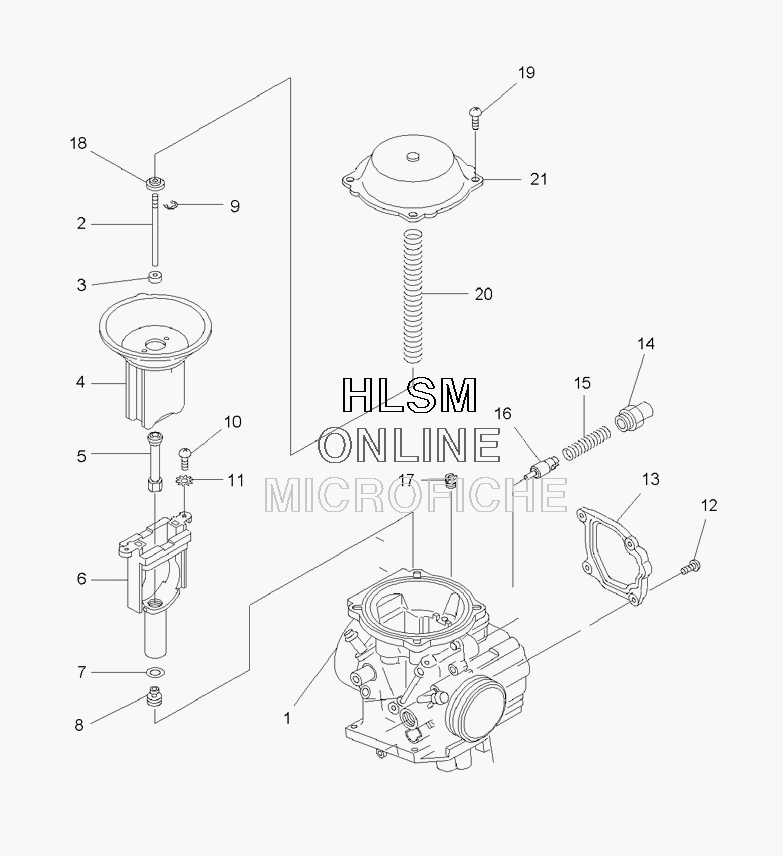

CARBURETOR - UPPER для Polaris SPORTSMAN 400 HO 4X4 (A09LH46AQ) (NBU) - 2009 года выпуска
-
№АртикулНазвание
-
13131691 ASM-CARB (INCL. ALL)ASM-CARB (INCL. ALL)
-
23131604 JET-NEEDLE (41B33)JET-NEEDLE (41B33)
-
33130752 RINGRING
-
43130732 DIAPHRAGMDIAPHRAGM
-
53131363 JET-NEEDLE(P-6)JET-NEEDLE(P-6)
-
63130504 BLOCK, JETBLOCK, JET
-
73130014 WASHERWASHER
-
83130572 MAIN JET,#157.5MAIN JET,#157.5
-
93130508 E-RINGE-RING
-
103130541 SCREWSCREW
-
113130540 WASHER,SPRINGWASHER,SPRING
-
123130535 SCREWSCREW
-
133130511 COVERCOVER
-
143131396 HOLDER-GUIDEHOLDER-GUIDE
-
153130538 SPRINGSPRING
-
163131606 PLUNGERPLUNGER
-
173130625 JET,AIR,PILOT,#160JET,AIR,PILOT,#160
-
183130507 RINGRING
-
193130924 SCREWSCREW
-
203130505 SPRINGSPRING
-
213130503 COVERCOVER
