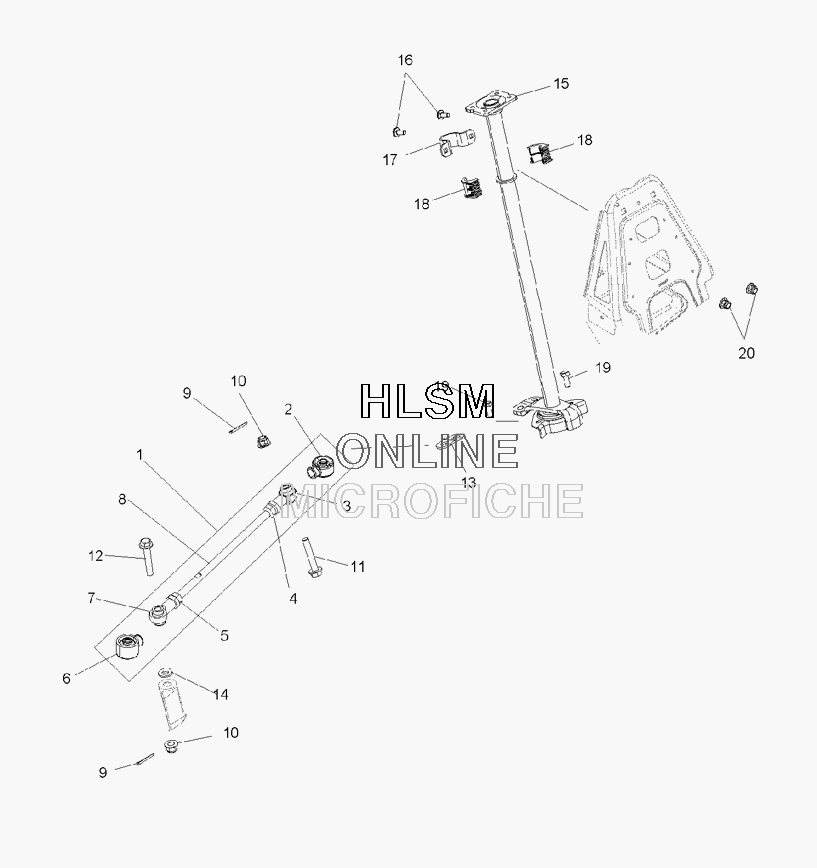

STEERING POST для Polaris SPORTSMAN 400 HO 4X4 (A09LH46AQ) (NBU) - 2009 года выпуска
-
№АртикулНазвание
-
11822955 ASM-TIE ROD,339.2 LONG (INCL. 2-8)ASM-TIE ROD,339.2 LONG (INCL. 2-8)
-
25411291 BOOT-SEAL,ROD END,1/2 INBOOT-SEAL,ROD END,1/2 IN
-
37061134 ROD-END,10MM,M12X1.5, RIGHT HANDROD-END,10MM,M12X1.5, RIGHT HAND
-
47547358 NUT-M12X1.5, RIGHT HAND,FULL JAMNUT-M12X1.5, RIGHT HAND,FULL JAM
-
57547357 NUT-NUT12X1.5, LEFT HAND,FULL JAMNUT-NUT12X1.5, LEFT HAND,FULL JAM
-
65411920 BOOT-SEAL,ROD END,10MMBOOT-SEAL,ROD END,10MM
-
77061135 ROD-END,10MM,M12X1.5, LEFT HANDROD-END,10MM,M12X1.5, LEFT HAND
-
85134603 ROD-TIE,1/2-M12 X 1.5ROD-TIE,1/2-M12 X 1.5
-
97661203 PIN,COTTERPIN,COTTER
-
107547313 NUT-M10X1.5,HXFLG, NYLON INSNUT-M10X1.5,HXFLG, NYLON INS
-
117518605 BOLT-M10X1.5X55,HX HD FLGBOLT-M10X1.5X55,HX HD FLG
-
127518682 BOLT-M10X1.5X60,HXHDFLGBOLT-M10X1.5X60,HXHDFLG
-
135248353 RETAINER-TIE RODRETAINER-TIE ROD
-
147556099 WASHERWASHER
-
151015959 POST, STEERINGPOST, STEERING
-
167518479 BOLT-M8X1.25X20,CARRIAGEBOLT-M8X1.25X20,CARRIAGE
-
175246732 BRKT-UPPER BUSHING-BRKT-UPPER BUSHING-
-
185433866 BUSHING-UPPER,1 INBUSHING-UPPER,1 IN
-
197518471 BOLT-M8X1.25X25,HXHD,W/PATCHBOLT-M8X1.25X25,HXHD,W/PATCH
-
207547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
