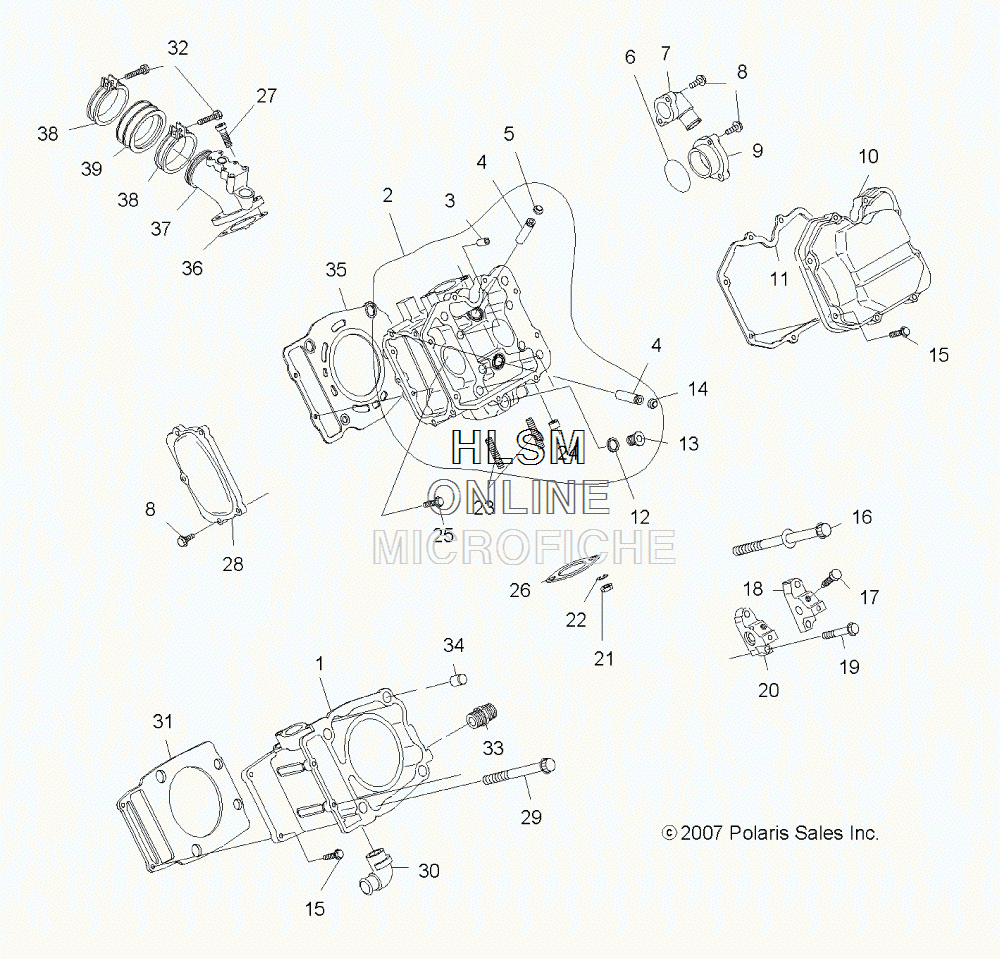

CYLINDER HEAD W/ CYLINDER для Polaris SPORTSMAN 500 EFI TRACTOR (A09MN50ET) (STEALTH BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
13089256 ASM., CYLINDER (INCL. 30)ASM., CYLINDER (INCL. 30)
-
23085527 HEAD, CYLINDER (INCL. 3-5,12-14,23,24)HEAD, CYLINDER (INCL. 3-5,12-14,23,24)
-
33084857 PIN, STRAIGHTPIN, STRAIGHT
-
43084994 GUIDE, VALVEGUIDE, VALVE
-
53084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
63084867 O-RINGO-RING
-
73084870 ADAPTERADAPTER
-
83084877 BOLT, FLANGEBOLT, FLANGE
-
93084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
103085073 COVER, ROCKERCOVER, ROCKER
-
113085074 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
123084861 GASKETGASKET
-
133084860 PLUGPLUG
-
143084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
153087158 BOLT, FLANGEBOLT, FLANGE
-
163084875 BOLTBOLT
-
173085854 BOLT, ROCKER SHAFTBOLT, ROCKER SHAFT
-
183084864 SUPPORT, VALVE ROCKER SHAFTSUPPORT, VALVE ROCKER SHAFT
-
193084876 BOLTBOLT
-
203084863 SUPPORT, VALVE ROCKER SHAFTSUPPORT, VALVE ROCKER SHAFT
-
213087199 NUTNUT
-
223080051 WASHER, SPRINGWASHER, SPRING
-
233085326 STUDSTUD
-
243084862 PLUG, BLINDPLUG, BLIND
-
253086781 BOLT, FLANGEBOLT, FLANGE
-
263085075 GASKETGASKET
-
273081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
283089242 COVER, CAMSHAFTCOVER, CAMSHAFT
-
293084873 BOLT, FLANGEBOLT, FLANGE
-
303084130 PIPE, ELBOW, 2PIPE, ELBOW, 2
-
313089966 GASKET, CYLINDERGASKET, CYLINDER
-
323081497 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
333089956 UNION, OIL FILTERUNION, OIL FILTER
-
343087266 PIPE, KNOCKPIPE, KNOCK
-
353085371 GASKET, HEADGASKET, HEAD
-
363085655 GASKET, INTAKE ADAPTORGASKET, INTAKE ADAPTOR
-
373089898 PIPE, INTAKEPIPE, INTAKE
-
383084045 BANDBAND
-
393089748 ADAPTERADAPTER
