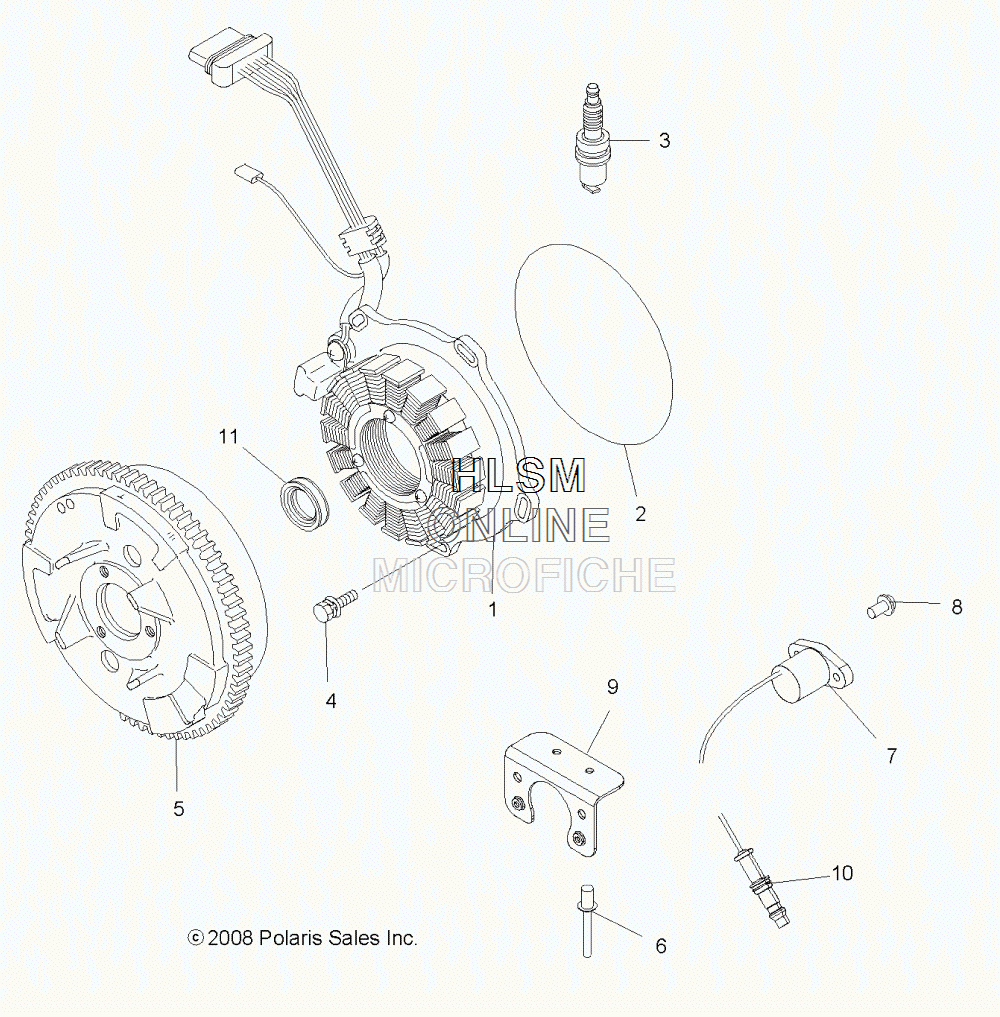

IGNITION SYSTEM для Polaris SPORTSMAN 500 EFI TRACTOR (A09MN50ET) (STEALTH BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
13089959 ASM., PLATE (INCL. STATOR, PLATE, TRIGGER COIL, SEAL)ASM., PLATE (INCL. STATOR, PLATE, TRIGGER COIL, SEAL)
-
23084978 O-RINGO-RING
-
33070172 PLUG, SPARK, BKR6EPLUG, SPARK, BKR6E
-
43081657 BOLT AND WASHERBOLT AND WASHER
-
53089905 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
67661637 RIVETRIVET
-
74011834 COIL, IGNITIONCOIL, IGNITION
-
87518196 SCREWSCREW
-
95249815 BRACKET, COIL MOUNTBRACKET, COIL MOUNT
-
104011691 WIRE, SPARK PLUGWIRE, SPARK PLUG
-
113084973 SEAL, OILSEAL, OIL
