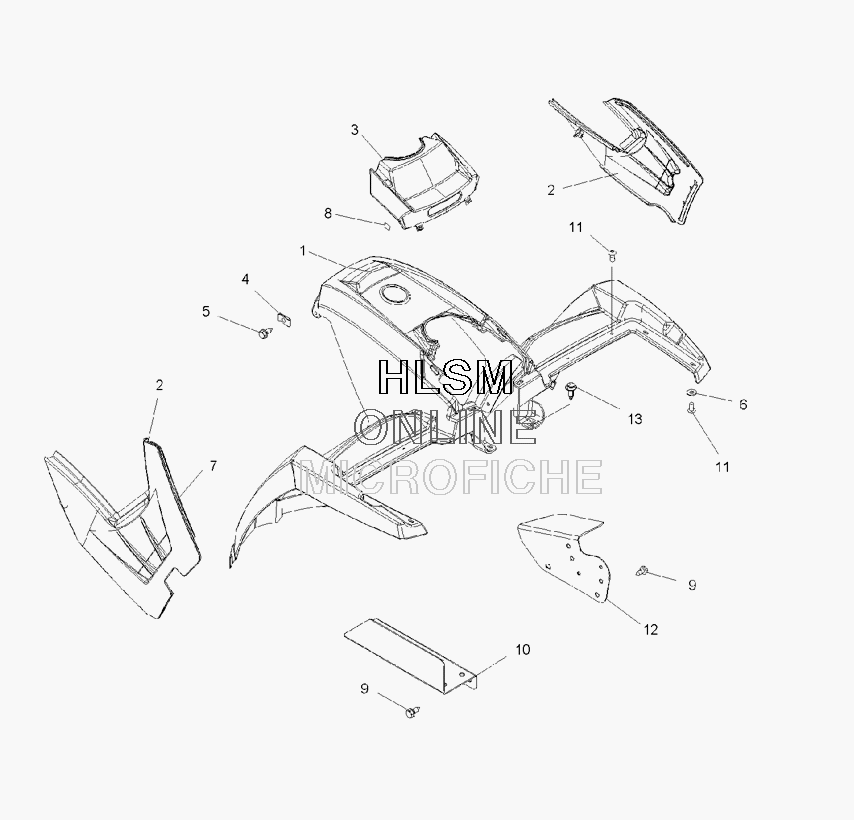

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 800 EFI HO (A09MN76AX) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
15437844-498 CAB-FR.SVC.DECALS,SGBRSH GREENCAB-FR.SVC.DECALS,SGBRSH GREEN
-
25435559-177 PANEL-SIDE, LEFT HAND, BLACKMTPANEL-SIDE, LEFT HAND, BLACKMT
-
22632936-177 ASM-PANEL/FOIL, RIGHT HAND, BLACK MET (INCL. 7)ASM-PANEL/FOIL, RIGHT HAND, BLACK MET (INCL. 7)
-
35436715-498 COVER-FR, SAGEBRUSH GREEN METCOVER-FR, SAGEBRUSH GREEN MET
-
47670057 NUT, SPEEDNUT, SPEED
-
57517219 SCREWSCREW
-
67556034 WASHERWASHER
-
75813031 FOIL-SIDE PANEL, L-SHAPEFOIL-SIDE PANEL, L-SHAPE
-
75813041 FOIL-SIDE PANEL, RIGHT HANDFOIL-SIDE PANEL, RIGHT HAND
-
75813055 FOIL-SIDE PANEL, FRONTFOIL-SIDE PANEL, FRONT
-
87661893 CLIP-TRIM, METALCLIP-TRIM, METAL
-
97517386 SCREWSCREW
-
105248100-329 GUARD-SPLASH, SPMN, RIGHT HAND, E-COATGUARD-SPLASH, SPMN, RIGHT HAND, E-COAT
-
117512026 SCREWSCREW
-
125246872 GUARD, SPLASH LEFT HANDGUARD, SPLASH LEFT HAND
-
137661855 RIVET-TUFLOK, .315-.325X.787RIVET-TUFLOK, .315-.325X.787
