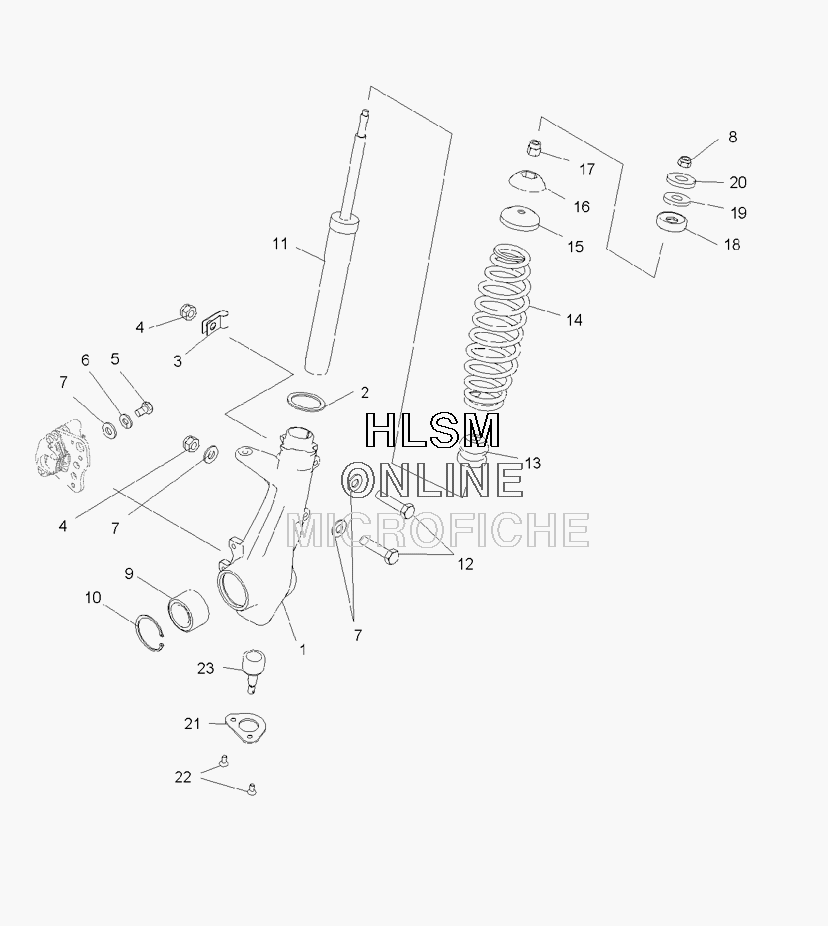

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 800 EFI HO (A09MN76AX) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
11822825 ASM-HUBSTRUT, LEFT HAND, 4X4 (INCL. 9, 10, 21, 22, 23)ASM-HUBSTRUT, LEFT HAND, 4X4 (INCL. 9, 10, 21, 22, 23)
-
11822826 ASM-HUBSTRUT, RIGHT HAND, 4X4 (INCL. 9, 10, 21, 22, 23)ASM-HUBSTRUT, RIGHT HAND, 4X4 (INCL. 9, 10, 21, 22, 23)
-
25211115 WASHERWASHER
-
37080367 CLAMP, CABLECLAMP, CABLE
-
47542324 NUT, NYLOKNUT, NYLOK
-
57512365 SCREW, CAPSCREW, CAP
-
67552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77558402 WASHER, FLATWASHER, FLAT
-
87547104 NUTNUT
-
93514634 BEARING-WHEEL, 35X64X37MMBEARING-WHEEL, 35X64X37MM
-
107710507 RING, RET., 2.500 INTERNALRING, RET., 2.500 INTERNAL
-
117041762 STRUT-FRONT, 18X30MM, 184.7MM LTSTRUT-FRONT, 18X30MM, 184.7MM LT
-
127515339 BOLTBOLT
-
135412665 BUMPER-MCU, 17.8MM IDBUMPER-MCU, 17.8MM ID
-
147042301-067 SPRING-COMP, 75-111#/IN, 13.5, BLACKSPRING-COMP, 75-111#/IN, 13.5, BLACK
-
155243364 RETAINER-SPRINGRETAINER-SPRING
-
165432871 PIVOT, BALL, BOTTOMPIVOT, BALL, BOTTOM
-
175132062 SPACER-1/2-20SPACER-1/2-20
-
185432872 PIVOT, BALL, TOPPIVOT, BALL, TOP
-
195810291 SPACER, RUBBERSPACER, RUBBER
-
207555749 WASHERWASHER
-
215211121 BRKT, BALL JOINT-BRKT, BALL JOINT-
-
227512284 BOLT, SOCKETBOLT, SOCKET
-
237061158 BALLJOINT-GREASELESS, STRUTBALLJOINT-GREASELESS, STRUT
