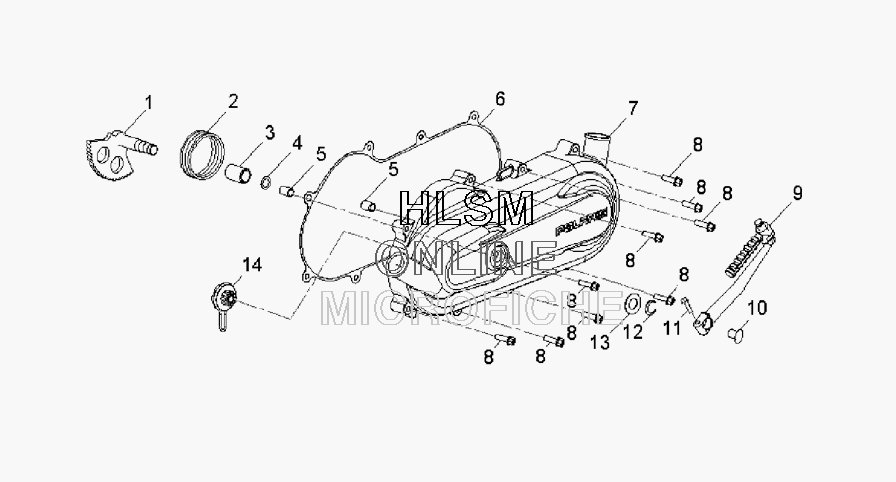

CLUTCH COVER AND KICK START для Polaris SPORTSMAN 90 (A09FA09AA) (SAGE BRUSH) - 2009 года выпуска
-
№АртикулНазвание
-
10453468 ASM-KICK SHAFTASM-KICK SHAFT
-
20450184 SPRING-REST,STARTER SHAFTSPRING-REST,STARTER SHAFT
-
30450185 BUSHINGBUSHING
-
40452394 O-RINGO-RING
-
50452342 PIN-DOWELPIN-DOWEL
-
60453422 GASKET-CLUTCH COVERGASKET-CLUTCH COVER
-
70453421 COVER-CLUTCHCOVER-CLUTCH
-
80452331 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
90450569 CRANK,KICK,ASM.CRANK,KICK,ASM.
-
100451746 CAP-SHAFT,KICK STARTERCAP-SHAFT,KICK STARTER
-
110450189 BOLT-HEXBOLT-HEX
-
120450187 CIRCLIP-EXTERNALCIRCLIP-EXTERNAL
-
130450186 WASHERWASHER
-
140451745 ASM-KICK PINIONASM-KICK PINION
