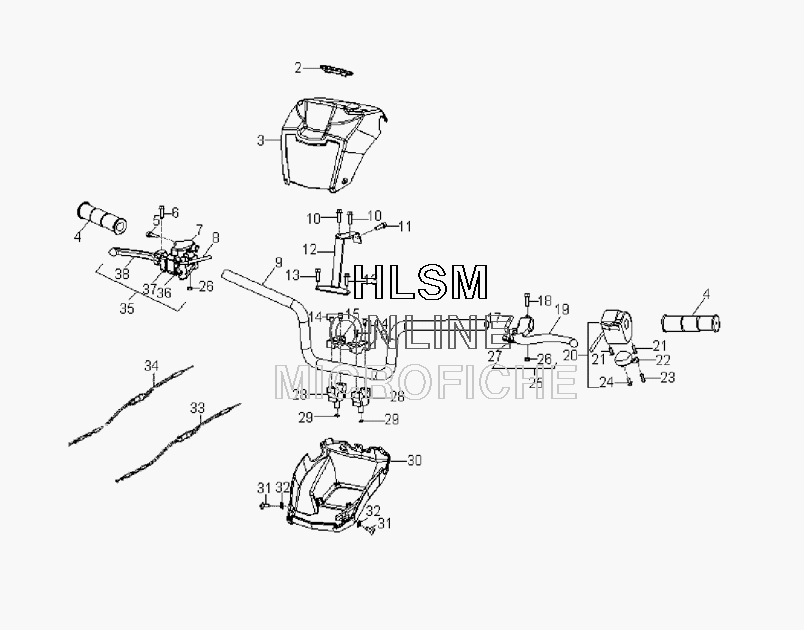

HANDLEBAR для Polaris SPORTSMAN 90 (A09FA09AA) (SAGE BRUSH) - 2009 года выпуска
-
№АртикулНазвание
-
20451707 BEZEL,SPEEDOMETERBEZEL,SPEEDOMETER
-
30454215-498 POD-UPPER,SPORTSMAN,BLUEPOD-UPPER,SPORTSMAN,BLUE
-
40453370 GRIP, HANDGRIPGRIP, HANDGRIP
-
50451788 BOLT-PHILLIPS,5MMBOLT-PHILLIPS,5MM
-
60450806 BOLT-BRAKE LVR, RIGHT HANDBOLT-BRAKE LVR, RIGHT HAND
-
70453721 LEVER-TROTTLE, RIGHT HANDLEVER-TROTTLE, RIGHT HAND
-
80453736 WIRE-SWITCH,BRAKEWIRE-SWITCH,BRAKE
-
90453722-067 HANDLEBAR, BLACKHANDLEBAR, BLACK
-
100452421 SCREWSCREW
-
110450614 RIVETRIVET
-
120453735 BRKT-MOUND,POD, BLACKBRKT-MOUND,POD, BLACK
-
130450040 SCREW-TAPPINGSCREW-TAPPING
-
140450148 BOLT-SOCKET,HEXBOLT-SOCKET,HEX
-
150450461 CLAMP, RIGHT HAND,TOPCLAMP, RIGHT HAND,TOP
-
160450460 CLAMP, LEFT HAND,TOPCLAMP, LEFT HAND,TOP
-
170453815 SENSOR-BRAKESENSOR-BRAKE
-
180450807 BOLT-BRAKE LVR, LEFT HANDBOLT-BRAKE LVR, LEFT HAND
-
190450693 LEVER,BRAKE, LEFT HANDLEVER,BRAKE, LEFT HAND
-
200453816 ASM-SWITCH, LEFT HAND (INCL. 21-24ASM-SWITCH, LEFT HAND (INCL. 21-24
-
210451148 BOLTBOLT
-
220453566 ASM-CHOKE,MANUALASM-CHOKE,MANUAL
-
230453708 BOLTBOLT
-
240451149 BOLTBOLT
-
250454043 ASM-LEVER,BRAKE, LEFT HAND (INCL. 17-19,26,27)ASM-LEVER,BRAKE, LEFT HAND (INCL. 17-19,26,27)
-
260450808 NUT-LOCKNUT-LOCK
-
270454042 LOCK-BRAKE,PARKLOCK-BRAKE,PARK
-
280450459 CLAMP-SADDLE,HANDLE BARCLAMP-SADDLE,HANDLE BAR
-
290450276 NUT-LOCKNUT-LOCK
-
300453347-070 POD-LOWER, BLACKPOD-LOWER, BLACK
-
310450514 SCREW-TAPPINGSCREW-TAPPING
-
320450752 U-NUTU-NUT
-
330453499 CABLE-CHOKECABLE-CHOKE
-
340453500 CABLE-THROTTLECABLE-THROTTLE
-
350453740 ASM-LEVER, LEFT HAND (INCL. 5-8,26,36-38)ASM-LEVER, LEFT HAND (INCL. 5-8,26,36-38)
-
360452202 ARM-THROTTLEARM-THROTTLE
-
370450994 BRKT-BRAKE CABLEBRKT-BRAKE CABLE
-
380450694 LEVER,BRAKE, RIGHT HANDLEVER,BRAKE, RIGHT HAND
