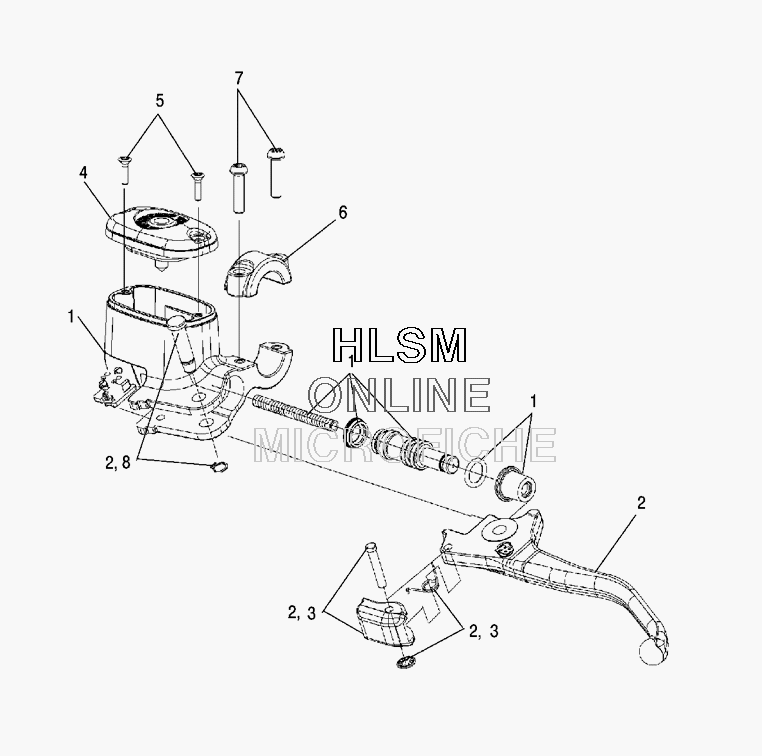

BRAKE - FRONT MASTER CYLINDER для Polaris SPORTSMAN TOURING 500 EFI (A09DN50AB) (BLUE) - 2009 года выпуска
-
№АртикулНазвание
-
-2203051 KIT-M/C ASM 11/16'',HBKIT-M/C ASM 11/16'',HB
-
12203052 KIT-PISTONANDRES. BODY,11/16'',HB (INCL. PISTON, SEALS, SPRING, BODY)KIT-PISTONANDRES. BODY,11/16'',HB (INCL. PISTON, SEALS, SPRING, BODY)
-
22203053 KIT-LEVER AND PARK LEVER,HB (INCL. BRAKE LEVER, PARK LEVER, SPRING, RING)KIT-LEVER AND PARK LEVER,HB (INCL. BRAKE LEVER, PARK LEVER, SPRING, RING)
-
32203054 KIT-PARK LEVER,HB (INCL. PIN, LEVER, SPRING, RING)KIT-PARK LEVER,HB (INCL. PIN, LEVER, SPRING, RING)
-
42203055 KIT-M/C COVER,HB (INCL. COVER W/SEAL)KIT-M/C COVER,HB (INCL. COVER W/SEAL)
-
52203056 KIT-M/C COVER SCREWS,HB (INCL. 2 SCREWS)KIT-M/C COVER SCREWS,HB (INCL. 2 SCREWS)
-
62203093 KIT-CLAMP,HB,11/16'' (INCL. CLAMP ONLY)KIT-CLAMP,HB,11/16'' (INCL. CLAMP ONLY)
-
72203058 KIT-SCREWS,CLAMP,HB (INCL. 2 SCREWS)KIT-SCREWS,CLAMP,HB (INCL. 2 SCREWS)
-
82203059 KIT-PIVOT PIN,HB (INCL. BRAKE LEVER, PIN, SNAP, RING)KIT-PIVOT PIN,HB (INCL. BRAKE LEVER, PIN, SNAP, RING)
