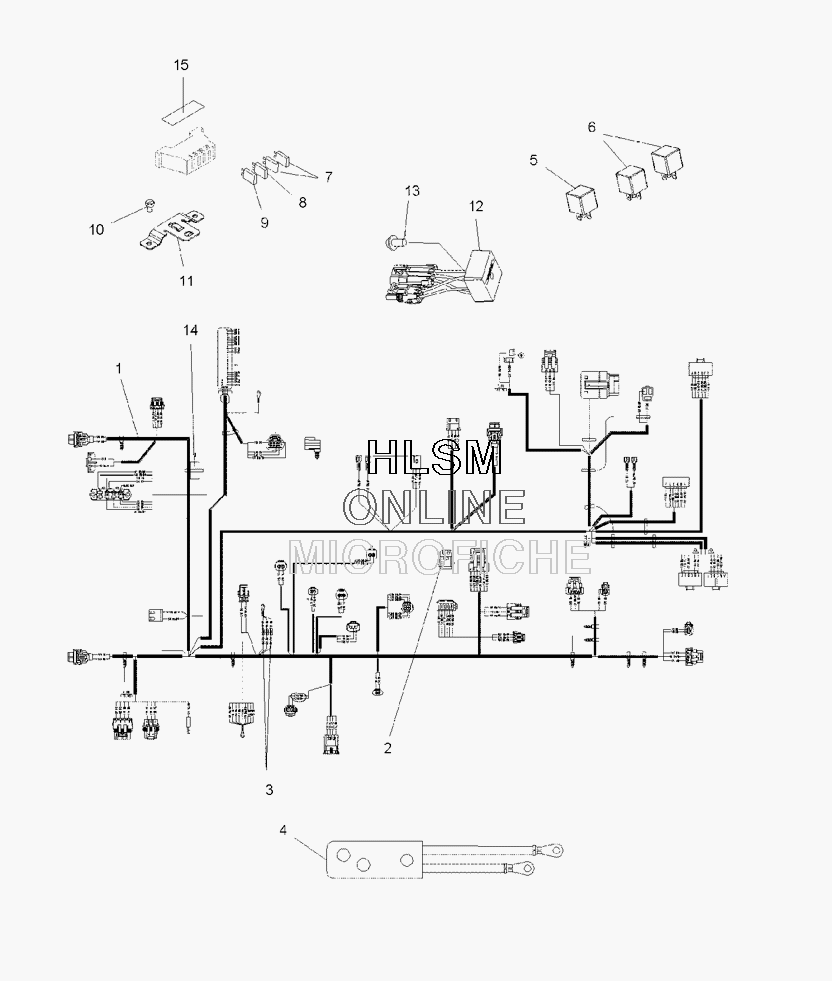

WIRE HARNESS для Polaris SPORTSMAN TOURING 500 EFI (A09DN50AB) (BLUE) - 2009 года выпуска
-
№АртикулНазвание
-
12411126 HARNESS-MAIN,SINGLE,X2HARNESS-MAIN,SINGLE,X2
-
24010924 MODULE-RESISTORMODULE-RESISTOR
-
32202607 KIT-FUSIBLE LINK,0.8 MMKIT-FUSIBLE LINK,0.8 MM
-
32202670 KIT-FUSIBLE LINK,1.0MMKIT-FUSIBLE LINK,1.0MM
-
42410860 HARNESS-WINCH,PREWIRE,X2HARNESS-WINCH,PREWIRE,X2
-
54011141 RELAY-SEALED,SPST,NO MNT TABRELAY-SEALED,SPST,NO MNT TAB
-
64011998 RELAY-MICRO,SPDT,35/20A,SLD,12RELAY-MICRO,SPDT,35/20A,SLD,12
-
74011683 FUSE-ATC 20 AMPFUSE-ATC 20 AMP
-
84011682 FUSE-ATC 15 AMPFUSE-ATC 15 AMP
-
94011681 FUSE-ATC 5 AMPFUSE-ATC 5 AMP
-
107512024 SCREWSCREW
-
115250236 BRKT-FUSE BLOCKBRKT-FUSE BLOCK
-
124012193 RELAY, SOLID STATE, 9ARELAY, SOLID STATE, 9A
-
137518418 SCR-1/4-20X1.50-HX/TAP-R,MAGSCR-1/4-20X1.50-HX/TAP-R,MAG
-
142410692 BREAKER-CIRCUIT,10 AMP,SEALEDBREAKER-CIRCUIT,10 AMP,SEALED
-
157171032 DECAL-FUSE BLOCKDECAL-FUSE BLOCK
