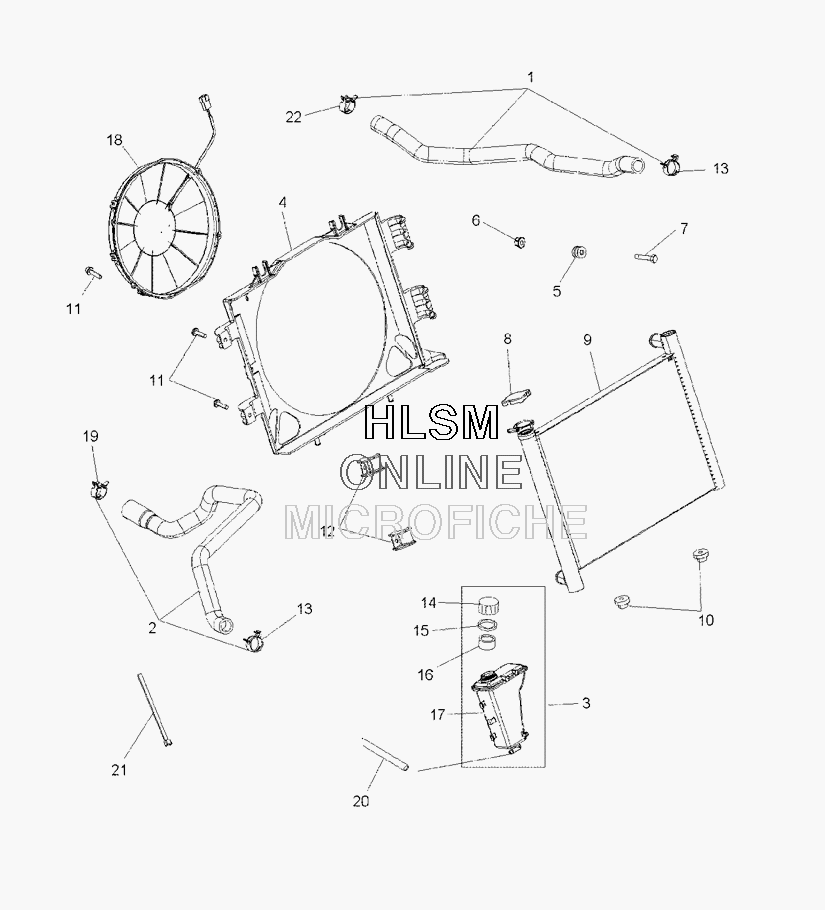

COOLING SYSTEM для Polaris SPORTSMAN XP 850 (A09ZN85AQ) (NBU) - 2009 года выпуска
-
№АртикулНазвание
-
11240407 ASM-HOSE,RADIATOR,ENG OUT,25MM (INCL. 13,22, HOSE)ASM-HOSE,RADIATOR,ENG OUT,25MM (INCL. 13,22, HOSE)
-
21240408 ASM-HOSE,RADIATOR,ENG IN,25MM (INCL. 13,19, HOSE)ASM-HOSE,RADIATOR,ENG IN,25MM (INCL. 13,19, HOSE)
-
31240406 ASM-BOTTLE,COOLANT RECOVERY (INCL. 14-17, 20)ASM-BOTTLE,COOLANT RECOVERY (INCL. 14-17, 20)
-
45437627 SHROUD-FANSHROUD-FAN
-
55413509 ASM-GROMMET AND INSERTASM-GROMMET AND INSERT
-
67547274 NUT-M6 FLANGE,NYLOKNUT-M6 FLANGE,NYLOK
-
77518530 BOLT-M6X1.0X30,HXHD,FLG, BLACKBOLT-M6X1.0X30,HXHD,FLG, BLACK
-
81240466 CAP-PRESSURE 13 PSICAP-PRESSURE 13 PSI
-
91240404 RADIATOR-11 FPI,25MM FITTINGSRADIATOR-11 FPI,25MM FITTINGS
-
105413510 GROMMET-MOUNT,LOWER RADIATORGROMMET-MOUNT,LOWER RADIATOR
-
117518918 SCREW-M6X15,THRD FRMSCREW-M6X15,THRD FRM
-
125437628 CLIP-SHROUD,FANCLIP-SHROUD,FAN
-
137081520 CLAMPCLAMP
-
145430743 CAP, OVERFLOWCAP, OVERFLOW
-
155810279 GASKETGASKET
-
165433774 CAP,PLUG9X(GRN),FLEX TEMPCAP,PLUG9X(GRN),FLEX TEMP
-
175437257 ASM-BOTTLE,COOLANT RECOVERYASM-BOTTLE,COOLANT RECOVERY
-
182411119 FAN-12'' ASSEMBLYFAN-12'' ASSEMBLY
-
197081521 CLAMPCLAMP
-
208450728-27 HOSEHOSE
-
217080492 CABLE TIE,11 INCHCABLE TIE,11 INCH
-
227080844 CLAMP,SPRINGBAND 35/12, BLACKCLAMP,SPRINGBAND 35/12, BLACK
