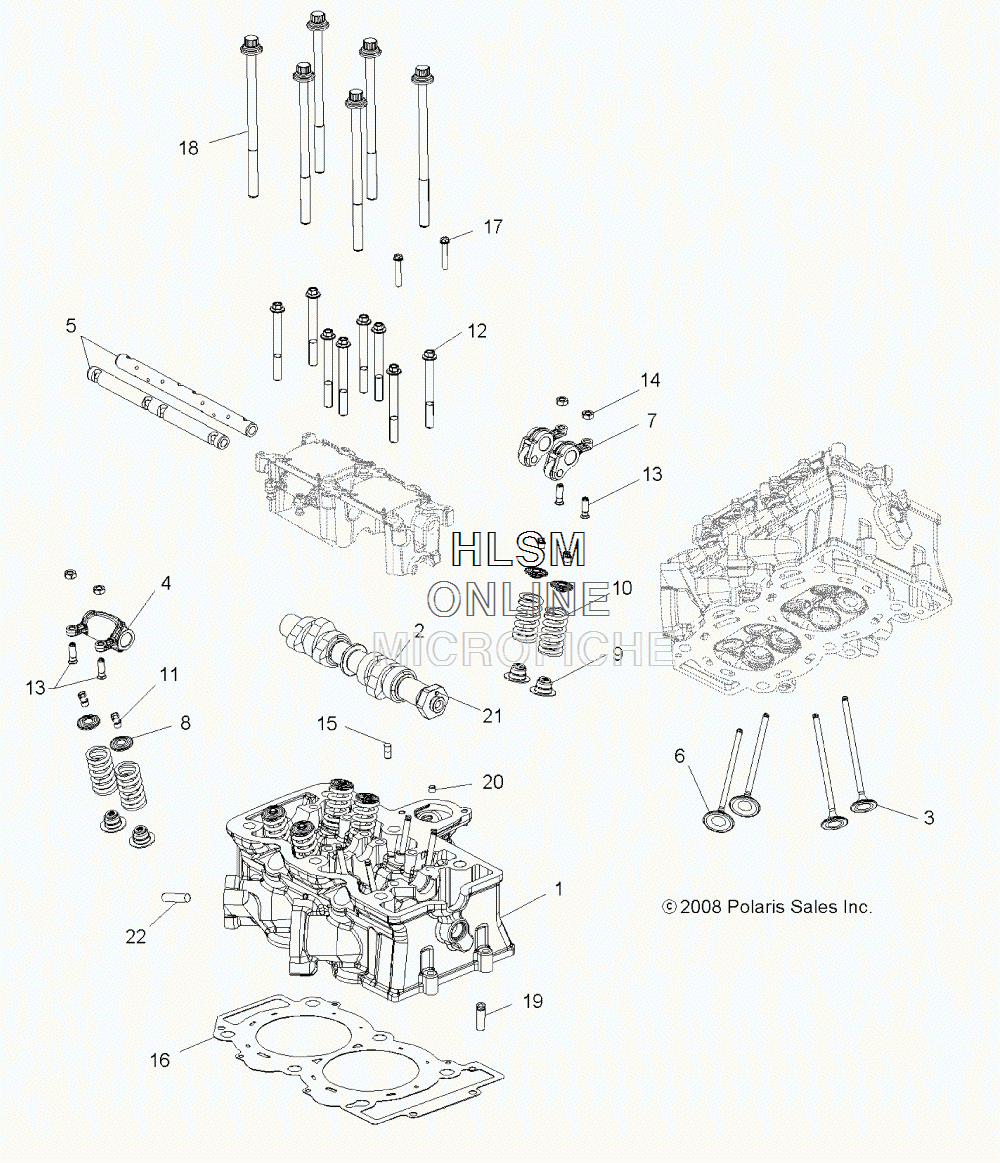

CYLINDER HEAD - CAM - VALVES для Polaris SPORTSMAN XP EPS 850 INTL (A09ZX85CFS) (STEALTH BLACK) - 2009 года выпуска`
-
№АртикулНазвание
-
13022097 ASM., CYLINDER HEAD (INCL. CAMSHAFT CARRIER)ASM., CYLINDER HEAD (INCL. CAMSHAFT CARRIER)
-
23022092 ASM., CAM SHAFT (INCL. 21)ASM., CAM SHAFT (INCL. 21)
-
33022100 VALVE, EXHAUSTVALVE, EXHAUST
-
41203578 ASM., ARM ROCKER, EXHAUST (INCL. ARM, SCREW, NUT)ASM., ARM ROCKER, EXHAUST (INCL. ARM, SCREW, NUT)
-
43022113 ARM, ROCKER EXHAUSTARM, ROCKER EXHAUST
-
53021826 SHAFT, ROCKERSHAFT, ROCKER
-
63022099 VALVE, INTAKEVALVE, INTAKE
-
71203579 ASM., ARM ROCKER, INTAKE (INCL. ARM, SCREW, NUT)ASM., ARM ROCKER, INTAKE (INCL. ARM, SCREW, NUT)
-
73022112 ROCKER ARM INTAKEROCKER ARM INTAKE
-
83021865 RETAINER, VALVERETAINER, VALVE
-
93610133 SEAL, VALVESEAL, VALVE
-
107043352 SPRING, VALVESPRING, VALVE
-
117081470 KEEPER, VALVEKEEPER, VALVE
-
127518799 SCREWSCREW
-
135136463 SCREW, LASH ADJUSTERSCREW, LASH ADJUSTER
-
147547335 NUT, LOCKNUT, LOCK
-
152540080 JET, OILJET, OIL
-
165813345 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
177518578 SCREWSCREW
-
187518274 BOLTBOLT
-
193022094 GUIDE, VALVEGUIDE, VALVE
-
205132835 PIN, DOWELPIN, DOWEL
-
215135619 PIN, DOWELPIN, DOWEL
-
225132040 STUD, EXHAUST MOUNTSTUD, EXHAUST MOUNT
