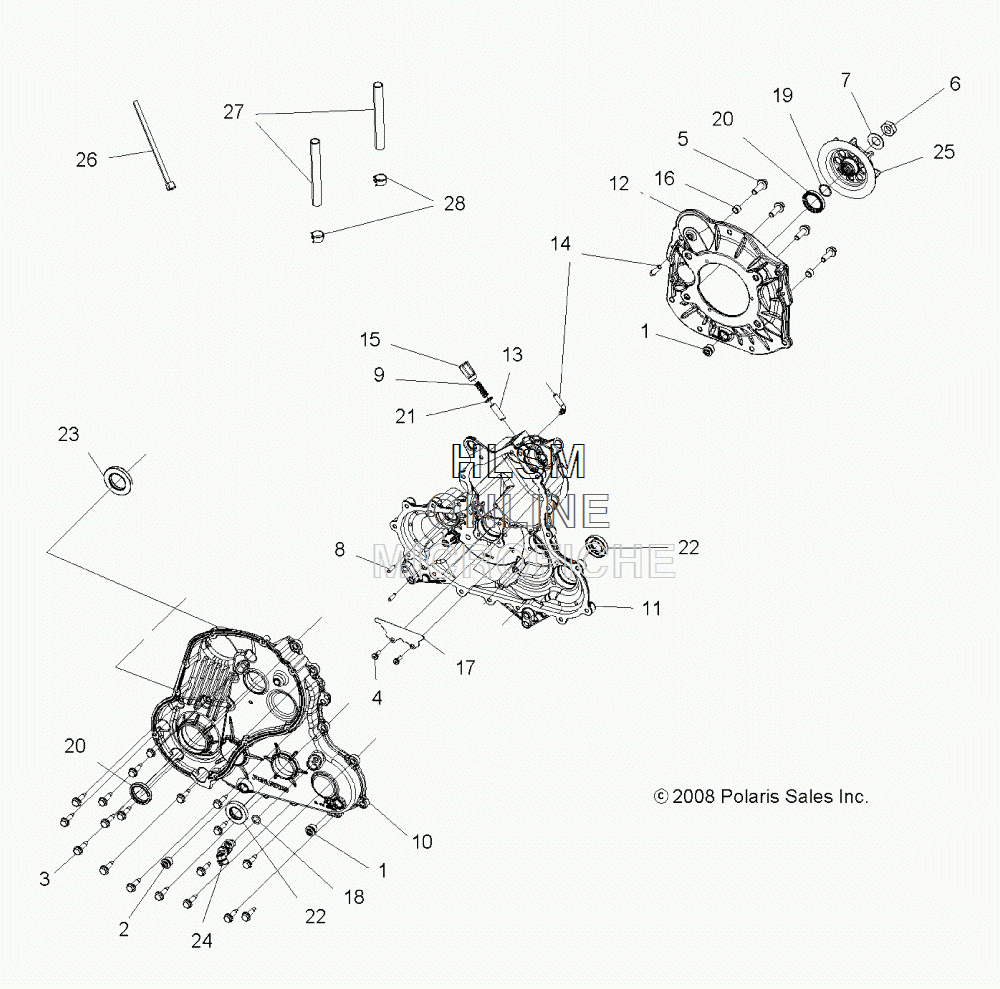

GEARCASE для Polaris SPORTSMAN XP EPS 850 INTL (A09ZX85CFS) (STEALTH BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
-1332745 ASM., TRANSMISSION, DRIVE SYSTEMASM., TRANSMISSION, DRIVE SYSTEM
-
13234755 PLUG, SOCKET HEAD (BUILT 2/12/10 AND BEFORE)PLUG, SOCKET HEAD (BUILT 2/12/10 AND BEFORE)
-
13234755 PLUG, SOCKET HEAD (BUILT 2/13/10 AND AFTER)PLUG, SOCKET HEAD (BUILT 2/13/10 AND AFTER)
-
23234756 PLUG, SOCKET HEAD W/MAGNETPLUG, SOCKET HEAD W/MAGNET
-
33234898 SCREW, HEXSCREW, HEX
-
43234309 SCREW, TORXSCREW, TORX
-
53234634 SCREW, HEXSCREW, HEX
-
63234788 NUT, HEXNUT, HEX
-
73234638 WASHERWASHER
-
83234330 PINPIN
-
93234790 SPRING, COMPRESSIONSPRING, COMPRESSION
-
103234689 GEARCASE, GTO COVERGEARCASE, GTO COVER
-
113234690 GEARCASE, MAINGEARCASE, MAIN
-
123234691 BELL HOUSING (DOES NOT INCL. 1 BUILT 2/13/10 AND AFTER)BELL HOUSING (DOES NOT INCL. 1 BUILT 2/13/10 AND AFTER)
-
133234695 BULLET, DETENTBULLET, DETENT
-
143234230 TUBE, VENTTUBE, VENT
-
153234715 PLUG, DETENTPLUG, DETENT
-
163234765 PIPE, KNOCKPIPE, KNOCK
-
173234725 DEFLECTOR, OILDEFLECTOR, OIL
-
183234302 O-RINGO-RING
-
193234728 O-RINGO-RING
-
203234739 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
213234729 O-RINGO-RING
-
223234892 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
233234769 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
244012167 SENSOR, SPEEDSENSOR, SPEED
-
255136575 COUPLERCOUPLER
-
267080492 CABLE TIECABLE TIE
-
278450003-1525 LINE, FUELLINE, FUEL
-
287080307 CLAMP, HOSECLAMP, HOSE
