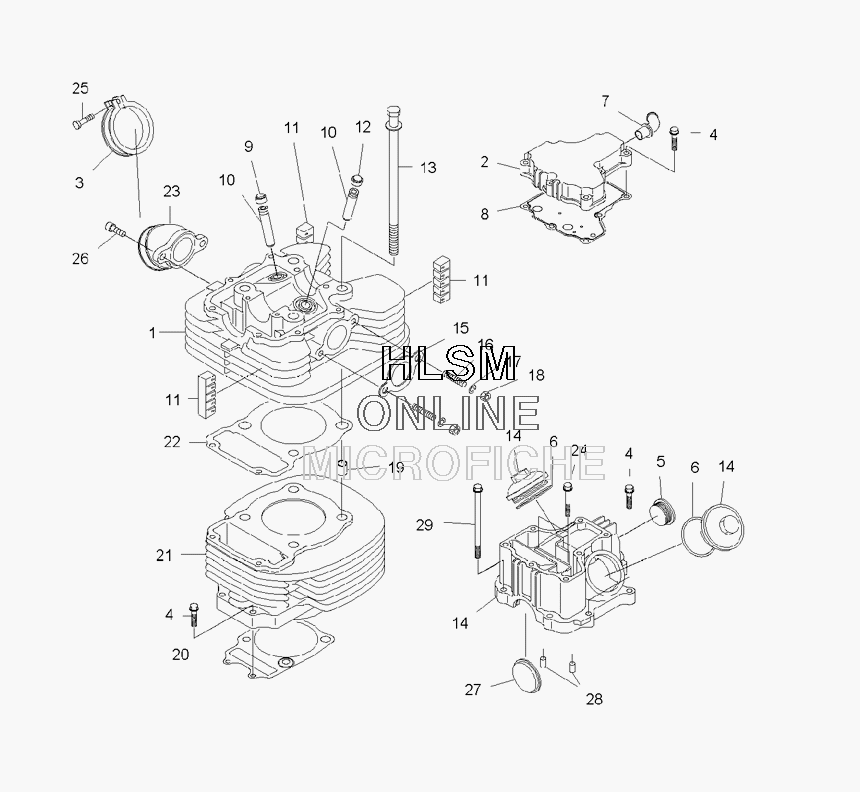

CYLINDER HEAD ASSEMBLY для Polaris TRAIL BLAZER 330 (A09BA32AA) - 2009 года выпуска
-
№АртикулНазвание
-
13089270 ASM-CYLINDER HEAD (INCL. 9, 10, 12, 14, 16, 28)ASM-CYLINDER HEAD (INCL. 9, 10, 12, 14, 16, 28)
-
23089271 ASM., COVER-BREATHER (INCL. 7)ASM., COVER-BREATHER (INCL. 7)
-
33083166 ASM-ADAPTER BAND (INCL. 25)ASM-ADAPTER BAND (INCL. 25)
-
43084874 BOLT, FLANGEBOLT, FLANGE
-
53089272 ASM., PLUGASM., PLUG
-
63086414 O-RINGO-RING
-
73085850 ASM., PIPEASM., PIPE
-
83087034 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
93084858 SEAL,INTAKE VALVESEAL,INTAKE VALVE
-
103084994 GUIDE,VALVEGUIDE,VALVE
-
113084798 FIN DAMPER AFIN DAMPER A
-
123084859 SEAL,EXHAUST VALVESEAL,EXHAUST VALVE
-
133086418 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
143087259 COVER-VALVECOVER-VALVE
-
153086421 GASKET, EXHAUSTGASKET, EXHAUST
-
163085326 STUDSTUD
-
173080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
183086787 NUTNUT
-
193087266 KNOCK,PIPEKNOCK,PIPE
-
203086407 GASKET-CYLINDERGASKET-CYLINDER
-
213087236 CYLINDER UNITCYLINDER UNIT
-
223087238 GASKET, HEADGASKET, HEAD
-
233087050 ASM., ADAPTERASM., ADAPTER
-
243087159 BOLT-FLANGEBOLT-FLANGE
-
253081497 SCREW,PAN HEADSCREW,PAN HEAD
-
263081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
273086416 GASKET-CAMGASKET-CAM
-
283087275 PIPE KNOCKPIPE KNOCK
-
293087160 BOLT-FLANGEBOLT-FLANGE
