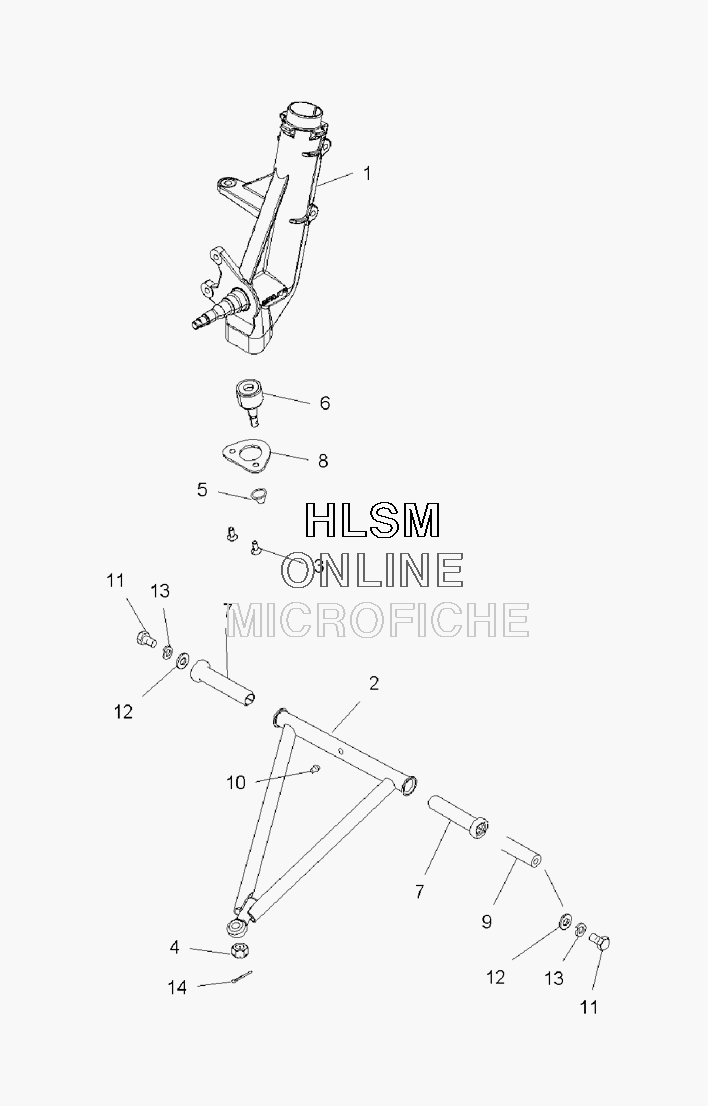

SUSPENSION - A ARM AND STRUT MOUNTING для Polaris TRAIL BLAZER 330 (A09BA32AA) - 2009 года выпуска`
-
№АртикулНазвание
-
15135135 SUPPORT-STRUT/SPINDLE (MACH) LEFT HANDSUPPORT-STRUT/SPINDLE (MACH) LEFT HAND
-
15135136 SUPPORT-STRUT/SPINDLE (MACH) RIGHT HANDSUPPORT-STRUT/SPINDLE (MACH) RIGHT HAND
-
22202276-385 KIT-A-FRAME, LEFT HAND, SLVR (1542175) (INCL. 7, 9-13)KIT-A-FRAME, LEFT HAND, SLVR (1542175) (INCL. 7, 9-13)
-
22202277-385 KIT-A-FRAME, RIGHT HAND, SLVR (1542176) (INCL. 7, 9-13)KIT-A-FRAME, RIGHT HAND, SLVR (1542176) (INCL. 7, 9-13)
-
37512284 BOLT, SOCKETBOLT, SOCKET
-
47542438 NUT, CASTLENUT, CASTLE
-
55412658 BOOT-BALLJOINT, GREASELESS, STRTBOOT-BALLJOINT, GREASELESS, STRT
-
67061158 BALLJOINT-GREASELESS, STRUTBALLJOINT-GREASELESS, STRUT
-
75434551 BUSHING-A-ARM, LONG, BLACKBUSHING-A-ARM, LONG, BLACK
-
85211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
95133806 SHAFT-A-ARMSHAFT-A-ARM
-
107080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
117512492 SCREWSCREW
-
127555832 WASHERWASHER
-
137552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147661203 PIN, COTTERPIN, COTTER
