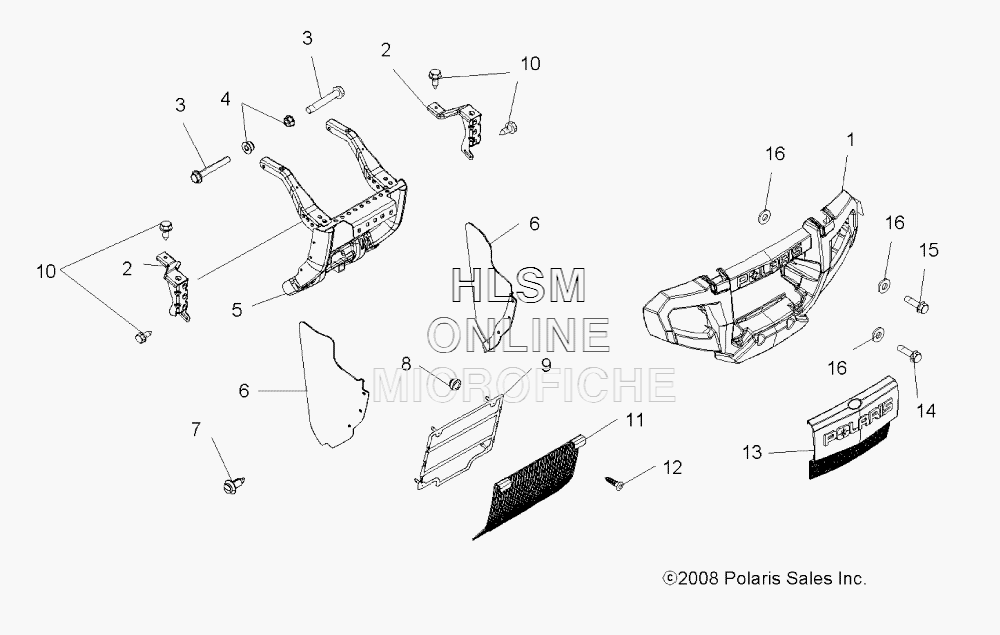

BODY- FRONT BUMPER AND MOUNTING для Polaris SPORTSMAN 500 EFI TRACTOR (A10MN50ET) (TURBO SILVER) - 2010 года выпуска
-
№АртикулНазвание
-
15437086-070 BUMPER, FRONT (BLACK)BUMPER, FRONT (BLACK)
-
21014591-067 SUPPORT, RACK (BLACK) (LEFT)SUPPORT, RACK (BLACK) (LEFT)
-
21014592-067 SUPPORT, RACK (BLACK) (RIGHT)SUPPORT, RACK (BLACK) (RIGHT)
-
37518341 BOLT, FLANGEBOLT, FLANGE
-
47542343 NUT, FLANGENUT, FLANGE
-
51017051-067 GUARD, BRUSH W/RECEIVER, FRONT (BLACK)GUARD, BRUSH W/RECEIVER, FRONT (BLACK)
-
65434314 SHIELD, SIDE, RADIATOR (LEFT)SHIELD, SIDE, RADIATOR (LEFT)
-
65434315 SHIELD, SIDE, RADIATOR (RIGHT)SHIELD, SIDE, RADIATOR (RIGHT)
-
77661855 RIVETRIVET
-
85412504 GROMMET, RUBBER MOUNTGROMMET, RUBBER MOUNT
-
95435046 COVER, RADIATORCOVER, RADIATOR
-
107515399 SCREWSCREW
-
115247507-067 GRILL, BRUSH GUARD (BLACK)GRILL, BRUSH GUARD (BLACK)
-
127518046 SCREWSCREW
-
135435357-070 PANEL, BUMPER, FRONT (BLACK)PANEL, BUMPER, FRONT (BLACK)
-
147518383 SCREWSCREW
-
157518382 BOLTBOLT
-
167556341 WASHER, FLATWASHER, FLAT
