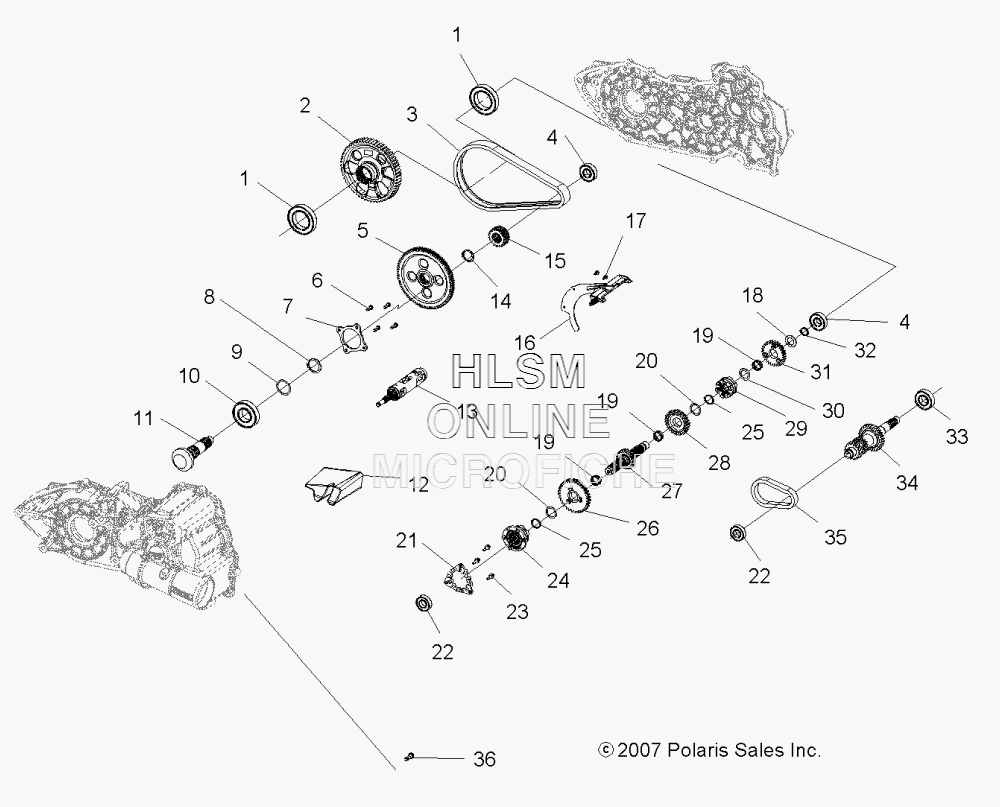

DRIVE TRAIN- MAIN GEARCASE INTERNALS для Polaris SPORTSMAN 500 EFI TRACTOR (A10MN50ET) (TURBO SILVER) - 2010 года выпуска
-
№АртикулНазвание
-
301332626 ASM., GEARCASEASM., GEARCASE
-
13233268 BEARING, BALLBEARING, BALL
-
23234058 SPROCKET, 59TSPROCKET, 59T
-
33234057 CHAINCHAIN
-
43234423 BEARING, BALLBEARING, BALL
-
53234062 GEAR, OUTPUT, 91TGEAR, OUTPUT, 91T
-
63234086 SCREWSCREW
-
73234063 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
83233364 RING, RETAININGRING, RETAINING
-
93234064 SPACERSPACER
-
103234065 BEARING, BALLBEARING, BALL
-
113234066 SHAFT, CENTER DRIVESHAFT, CENTER DRIVE
-
123234088 BAFFLE, OILBAFFLE, OIL
-
133234360 DRUM, SHIFTDRUM, SHIFT
-
143233699 RING, RETAININGRING, RETAINING
-
153234060 SPROCKET, 19TSPROCKET, 19T
-
163234061 DEFLECTOR, OILDEFLECTOR, OIL
-
173233749 SCREWSCREW
-
183233176 WASHERWASHER
-
193233718 BEARING, NEEDLEBEARING, NEEDLE
-
203233851 WASHERWASHER
-
213233915 PLATE, PARKPLATE, PARK
-
223234074 BEARING, BALLBEARING, BALL
-
233233826 SCREWSCREW
-
243234257 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
253233850 RING, RETAININGRING, RETAINING
-
263233852 GEAR, 33TGEAR, 33T
-
273234071 SHAFT, REVERSE, 26TSHAFT, REVERSE, 26T
-
283233854 SPROCKET, 24TSPROCKET, 24T
-
293234258 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
303233855 WASHERWASHER
-
313234068 GEAR, 28TGEAR, 28T
-
323234067 RING, RETAININGRING, RETAINING
-
333233019 BEARINGBEARING
-
343234075 SHAFT, INPUTSHAFT, INPUT
-
353233036 CHAIN, SILENTCHAIN, SILENT
-
363234086 SCREWSCREW
