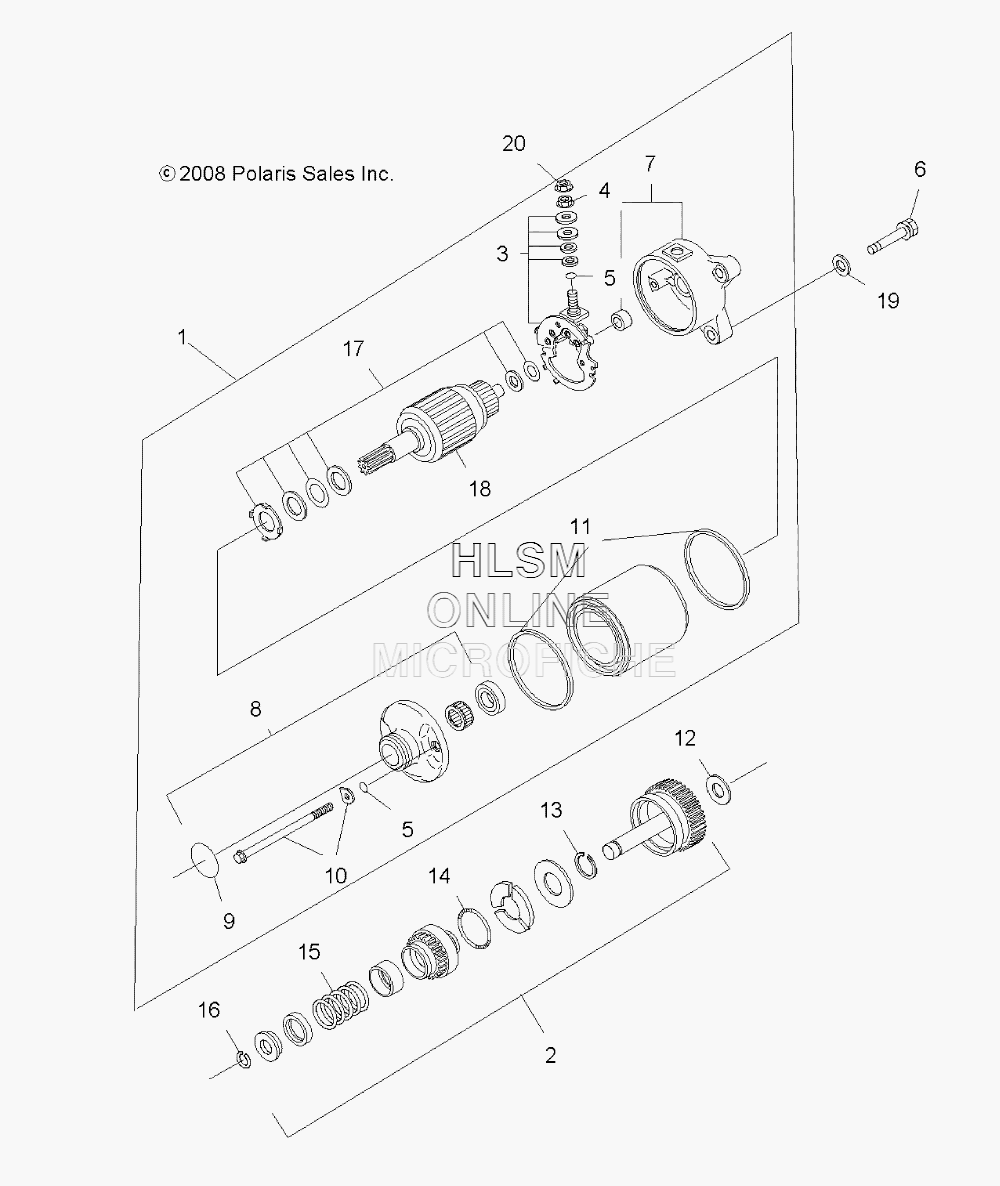

STARTING SYSTEM для Polaris SPORTSMAN 500 HO (A10MH50AX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
13090188 MOTOR, STARTER, COMPLETE (INCL. 1-5,7-11,17,18)MOTOR, STARTER, COMPLETE (INCL. 1-5,7-11,17,18)
-
23087030 ASM., GEAR SHAFT (INCL. 13-16)ASM., GEAR SHAFT (INCL. 13-16)
-
33088169 SET, BRUSH, CARBONSET, BRUSH, CARBON
-
43083649 NUT, FLANGENUT, FLANGE
-
53084408 O-RINGO-RING
-
63082038 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
73085034 ASM., COVER, REARASM., COVER, REAR
-
83085033 ASM., FRONT BRACKET (INCL. 9)ASM., FRONT BRACKET (INCL. 9)
-
93240114 O-RINGO-RING
-
103084983 ASM., SET BOLT (INCL. 5)ASM., SET BOLT (INCL. 5)
-
113084405 RING, RUBBERRING, RUBBER
-
127555908 WASHERWASHER
-
133084412 CLIPCLIP
-
143084411 SPRING, WEIGHTSPRING, WEIGHT
-
153084410 SPRING, RETURNSPRING, RETURN
-
163084409 CLIPCLIP
-
173084982 SET, WASHERSET, WASHER
-
183085353 ASM., ARMATUREASM., ARMATURE
-
197558301 WASHER, FLAT (USED WITH STARTER GROUND CABLE)WASHER, FLAT (USED WITH STARTER GROUND CABLE)
-
203083856 NUT, FLANGENUT, FLANGE
