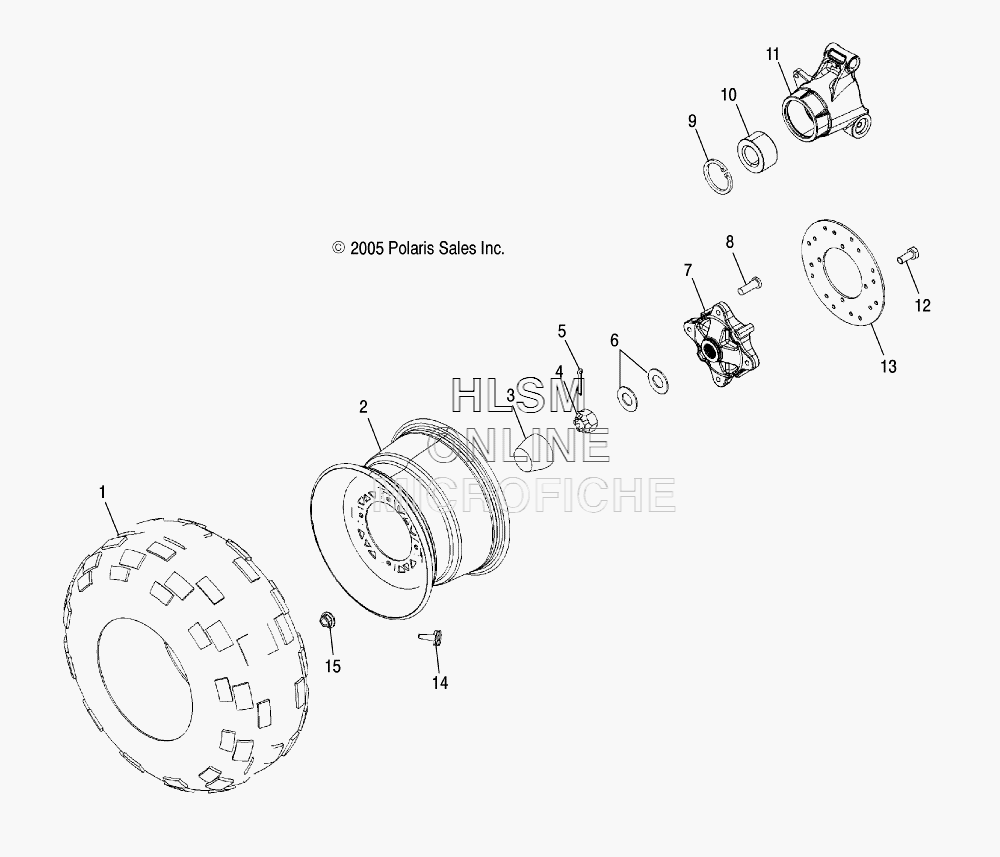

WHEELS- REAR TIRE AND BRAKE DISC для Polaris SPORTSMAN 500 HO (A10MH50AX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
15412451 TIRE, REAR, 25X11-12TIRE, REAR, 25X11-12
-
21520457-067 RIM, REAR (BLACK)RIM, REAR (BLACK)
-
35413427 COVER, DUST, HUBCOVER, DUST, HUB
-
47543005 NUT, CASTLENUT, CASTLE
-
57661404 PIN, COTTERPIN, COTTER
-
67555796 WASHER, CONEWASHER, CONE
-
75135113 HUB, REAR WHEELHUB, REAR WHEEL
-
87518378 STUDSTUD
-
97710440 RING, RETAININGRING, RETAINING
-
103514635 BEARING, WHEELBEARING, WHEEL
-
115135563 CARRIER, BEARING, WHEELCARRIER, BEARING, WHEEL
-
127518653 BOLTBOLT
-
135248250 DISC, BRAKE, REARDISC, BRAKE, REAR
-
141525017 VALVE, RIMVALVE, RIM
-
157547237 NUT, FLANGENUT, FLANGE
