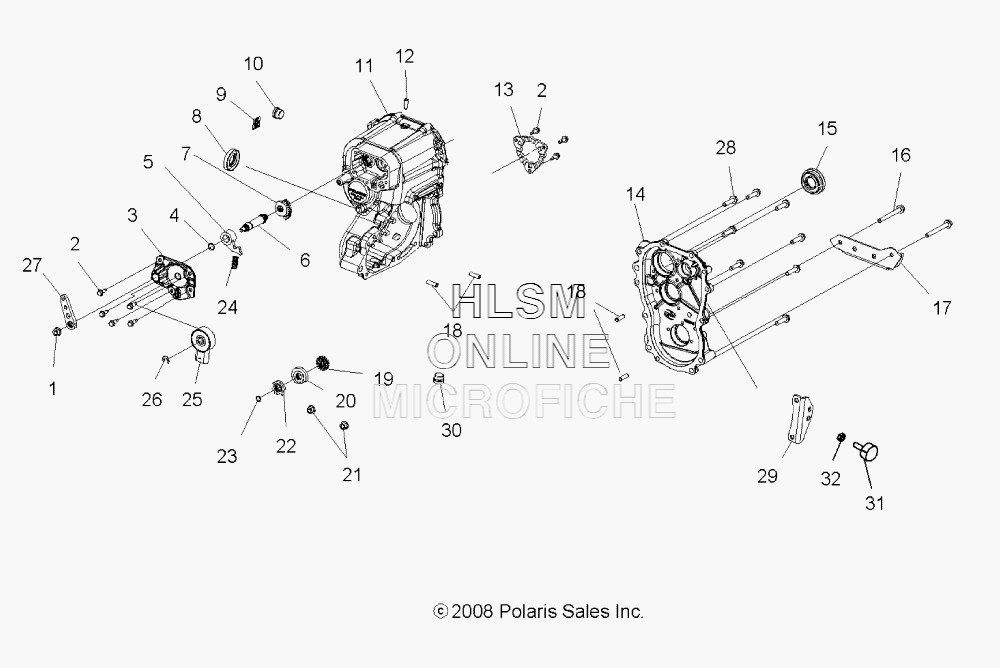

DRIVE TRAIN- MAIN GEARCASE для Polaris SPORTSMAN 800 EFI 6X6 (A10CL76AA) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
291332716 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
13233961 NUT, LOCKNUT, LOCK
-
23233826 SCREWSCREW
-
33234188 COVERCOVER
-
43233828 O-RINGO-RING
-
53233829 PAWL, DETENTPAWL, DETENT
-
63233831 SHAFT, SHIFTSHAFT, SHIFT
-
73233832 GEAR, 31TGEAR, 31T
-
83234892 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
93234143 LABEL, OIL FILL/LEVEL CHECKLABEL, OIL FILL/LEVEL CHECK
-
103233794 PLUG, HEX, HOLLOW W/O-RINGPLUG, HEX, HOLLOW W/O-RING
-
113234358 GEARCASE, MAINGEARCASE, MAIN
-
123233524 TUBE, VENTTUBE, VENT
-
133233915 PLATE, PARKPLATE, PARK
-
143234221 COVER, MAIN (LEFT)COVER, MAIN (LEFT)
-
153233866 SEAL, DUAL LIPSEAL, DUAL LIP
-
163234042 SCREWSCREW
-
173234142 BRACKET, TRANSMISSION MOUNTBRACKET, TRANSMISSION MOUNT
-
183233247 PIN, DOWELPIN, DOWEL
-
193233839 GEAR, 16TGEAR, 16T
-
203233838 DISC, LOCKOUTDISC, LOCKOUT
-
213234043 NUTNUT
-
223233909 STAR, DETENTSTAR, DETENT
-
233233836 O-RINGO-RING
-
243234578 SPRING, COMPRESSION, DETENTSPRING, COMPRESSION, DETENT
-
253233835 SWITCHSWITCH
-
263233834 RING, RETAININGRING, RETAINING
-
273234584 BELLCRANKBELLCRANK
-
283234114 SCREWSCREW
-
291016346 STOP, TORQUESTOP, TORQUE
-
303234529 PLUG, MAGNETICPLUG, MAGNETIC
-
313021354 STOP, TORQUESTOP, TORQUE
-
327542440 NUTNUT
