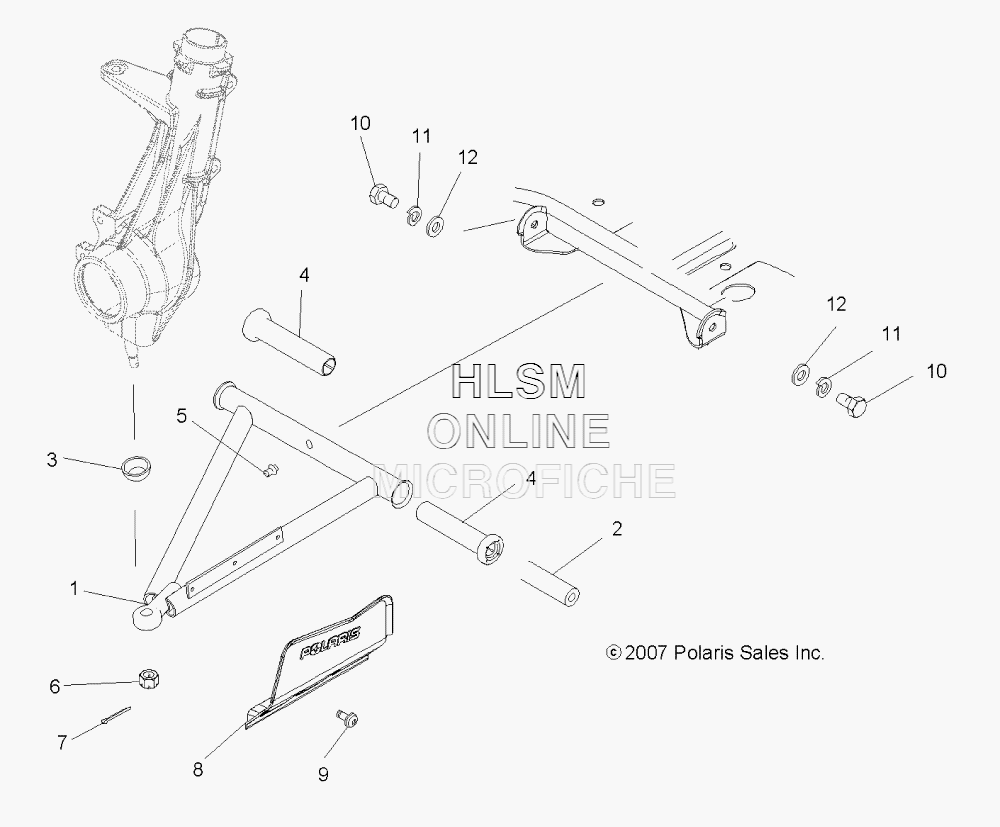

SUSPENSION- A-ARM AND STRUT MOUNTING для Polaris SPORTSMAN 800 EFI 6X6 (A10CL76AA) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
11542656-067 A-FRAME, FLARED (BLACK) (LEFT)A-FRAME, FLARED (BLACK) (LEFT)
-
11542657-067 A-FRAME, FLARED (BLACK) (RIGHT)A-FRAME, FLARED (BLACK) (RIGHT)
-
25133806 SHAFT, A-ARMSHAFT, A-ARM
-
35412658 BOOT, BALL JOINT, GREASELESSBOOT, BALL JOINT, GREASELESS
-
45434551 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
57080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
85435028-070 SHIELD, CV FRONT (BLACK) (LEFT)SHIELD, CV FRONT (BLACK) (LEFT)
-
85435029-070 SHIELD, CV FRONT (BLACK) (RIGHT)SHIELD, CV FRONT (BLACK) (RIGHT)
-
97512084 SCREWSCREW
-
107512492 SCREWSCREW
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127555832 WASHERWASHER
