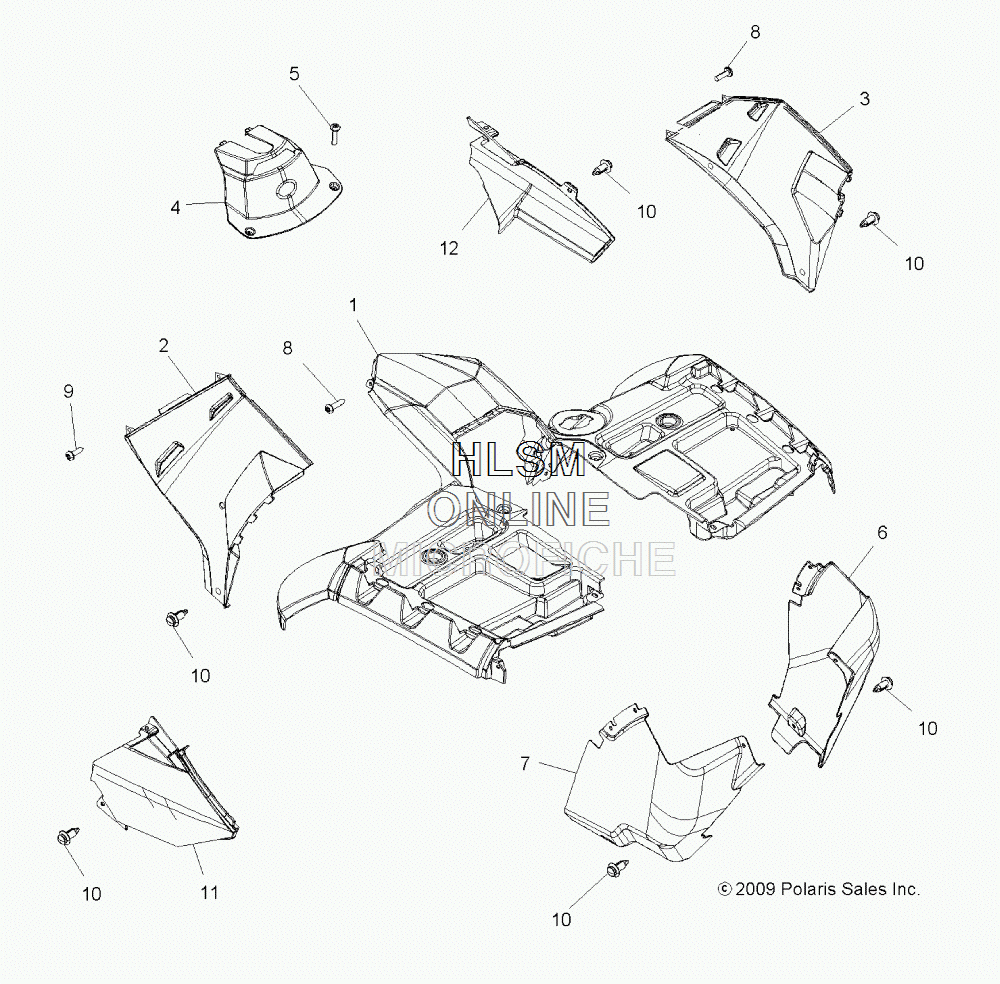

CAB - FRONT для Polaris SPORTSMAN TOURING EPS 550 (A10DX55AF) (BOARDWALK BLUE) - 2010 года выпуска
-
№АртикулНазвание
-
12633877-524 ASM., CAB, FRONT (BROADWALK BLUE) (INCL. WARNING DECALS)ASM., CAB, FRONT (BROADWALK BLUE) (INCL. WARNING DECALS)
-
25435816-524 PANEL, SIDE, UPPER, RIGHT HAND (BROADWALK BLUE)PANEL, SIDE, UPPER, RIGHT HAND (BROADWALK BLUE)
-
35435815-524 PANEL, SIDE, UPPER, LEFT HAND (BROADWALK BLUE)PANEL, SIDE, UPPER, LEFT HAND (BROADWALK BLUE)
-
45435827-524 COVER, FRONT (BROADWALK BLUE)COVER, FRONT (BROADWALK BLUE)
-
57518238 SCREWSCREW
-
65437062-070 GUARD, MUD, FRONT, LEFT HAND (BLACK)GUARD, MUD, FRONT, LEFT HAND (BLACK)
-
75437063-070 GUARD, MUD, FRONT, RIGHT HAND (BLACK)GUARD, MUD, FRONT, RIGHT HAND (BLACK)
-
87519045 SCREWSCREW
-
97519092 SCREWSCREW
-
107661855 RIVETRIVET
-
112633777 SHIELD, EXHAUST COVERSHIELD, EXHAUST COVER
-
125437476-070 PANEL, SIDE, LOWER, LEFT HAND (BLACK)PANEL, SIDE, LOWER, LEFT HAND (BLACK)
