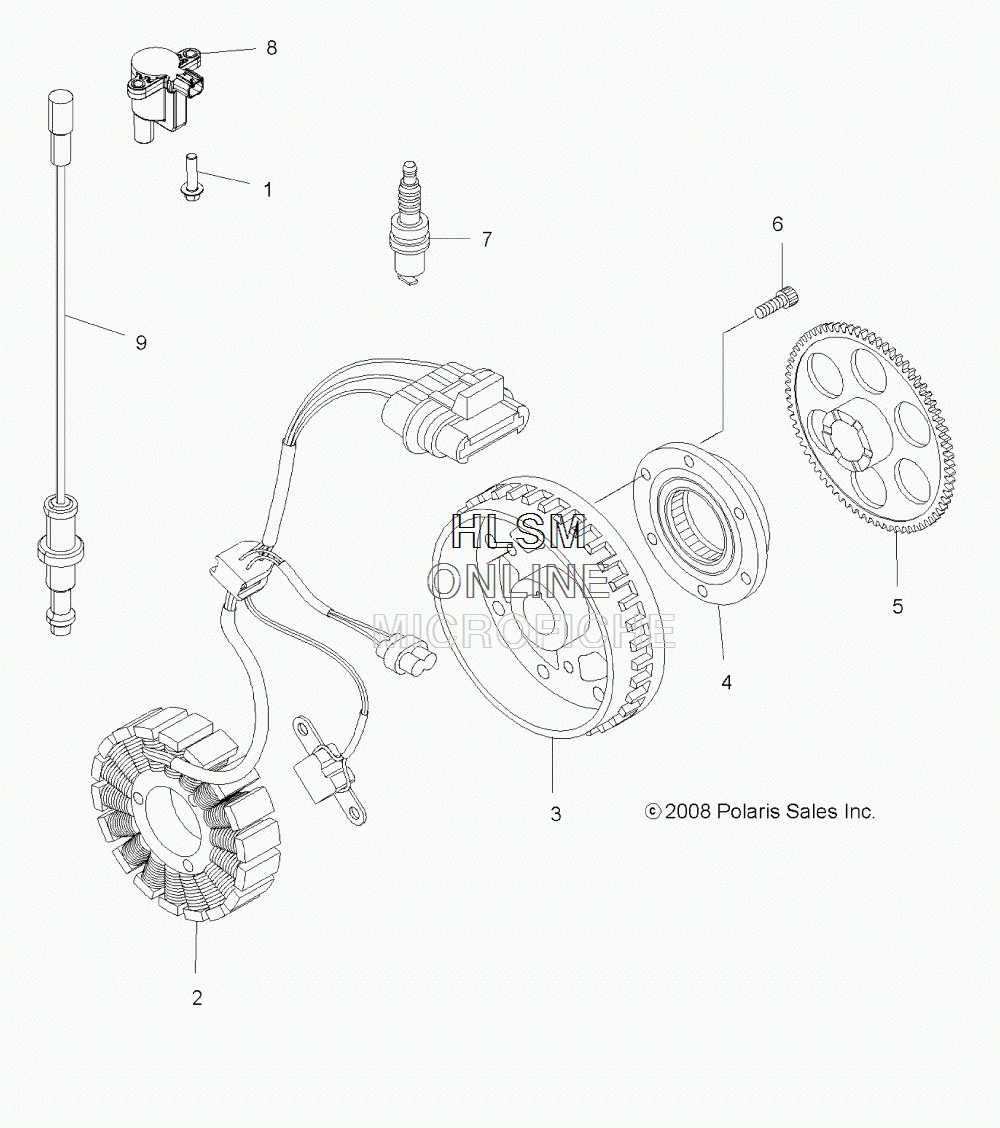

IGNITION SYSTEM для Polaris SPORTSMAN TOURING EPS 550 (A10DX55AF) (BOARDWALK BLUE) - 2010 года выпуска
-
№АртикулНазвание
-
17512098 SCREWSCREW
-
23090155 STATORSTATOR
-
33090156 FLYWHEELFLYWHEEL
-
43090157 ASM., ONE WAY CLUTCHASM., ONE WAY CLUTCH
-
53090158 GEAR, STARTERGEAR, STARTER
-
63090159 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
73070172 PLUG, SPARK, NGK, BKR6EPLUG, SPARK, NGK, BKR6E
-
84011834 COIL, IGNITIONCOIL, IGNITION
-
94012050 WIRE, IGNITION COILWIRE, IGNITION COIL
