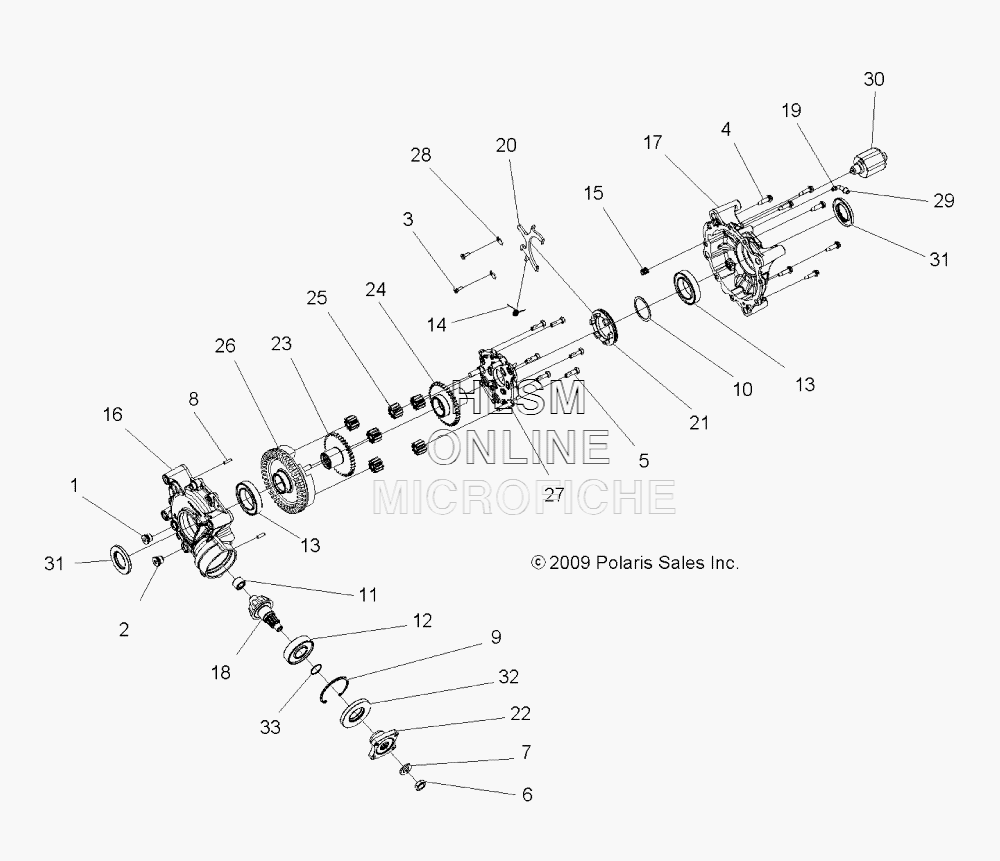

DRIVE TRAIN- REAR DIFFERENTIAL INTERNALS для Polaris SPORTSMAN X2 550 (A10TN55AX) (SAGEBRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
331332723 ASM., GEARCASE, REAR DIFFERENTIAL (INCL. ALL)ASM., GEARCASE, REAR DIFFERENTIAL (INCL. ALL)
-
13234755 PLUGPLUG
-
23234756 PLUG, SOCKET HEAD W/MAGNETPLUG, SOCKET HEAD W/MAGNET
-
33234329 SCREWSCREW
-
43234898 SCREWSCREW
-
53234925 SCREWSCREW
-
63234776 NUT, HEXNUT, HEX
-
73234777 WASHER, LOCKINGWASHER, LOCKING
-
83234330 PINPIN
-
93234158 RING, RETAININGRING, RETAINING
-
103233554 SHIMSHIM
-
113234799 BEARING, NEEDLEBEARING, NEEDLE
-
123233714 BEARING, BALLBEARING, BALL
-
133233268 BEARING, BALLBEARING, BALL
-
143234276 SPRING, TORSION RETURNSPRING, TORSION RETURN
-
153234277 SPRING, COMPRESSIONSPRING, COMPRESSION
-
163234926 CASE, MAINCASE, MAIN
-
173234927 CASE, MAINCASE, MAIN
-
183234798 SHAFT, PINION, 10TSHAFT, PINION, 10T
-
193234230 TUBE, VENTTUBE, VENT
-
203234285 FORK, PIVOT SHAFTFORK, PIVOT SHAFT
-
213234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
223234782 COUPLERCOUPLER
-
233234929 SUBASM., GEAR, SIDE 39TSUBASM., GEAR, SIDE 39T
-
243234930 SUBASM., GEAR, SIDE, 39T, DISCONNECT (INCL. BEARING)SUBASM., GEAR, SIDE, 39T, DISCONNECT (INCL. BEARING)
-
243234241 BEARINGBEARING
-
253234931 GEAR, PLANET SUBASM (INCL. BUSHING)GEAR, PLANET SUBASM (INCL. BUSHING)
-
253234935 BUSHING (1 PER GEAR)BUSHING (1 PER GEAR)
-
263234932 GEAR, 37T, STRAIGHT BEVEL SUBASM (INCL. BEARINGGEAR, 37T, STRAIGHT BEVEL SUBASM (INCL. BEARING
-
263234241 BEARINGBEARING
-
273234933 COVER, CARRIER SUBASM (INCL. BEARINGCOVER, CARRIER SUBASM (INCL. BEARING
-
273234241 BEARINGBEARING
-
283234934 RETAINER, FORKRETAINER, FORK
-
293233578 PLUG, CAP VENTPLUG, CAP VENT
-
303234298 SOLENOIDSOLENOID
-
313235052 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
323235051 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
333234785 O-RINGO-RING
