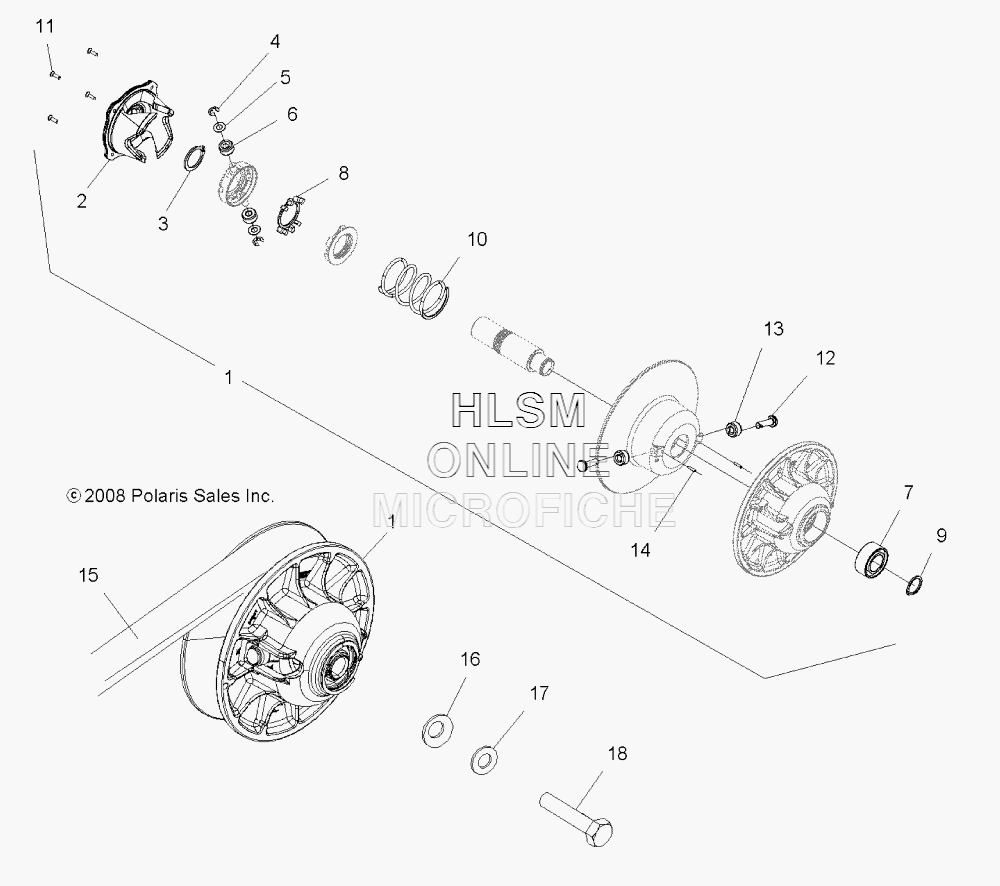

DRIVE TRAIN- SECONDARY CLUTCH для Polaris SPORTSMAN X2 550 (A10TN55AX) (SAGEBRUSH GREEN METALLIC) - 2010 года выпуска
‹-+›
-
№АртикулНазвание
-
11322855 CLUTCH, DRIVEN (INCL. 1-14)CLUTCH, DRIVEN (INCL. 1-14)
-
23234620 ASM., CAMASM., CAM
-
37710522 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
47710523 RING, RETAINING, E-RING, EXTERNALRING, RETAINING, E-RING, EXTERNAL
-
57556226 WASHER, THRUSTWASHER, THRUST
-
63234207 ROLLER, CLUTCHROLLER, CLUTCH
-
73234203 BEARING, BALLBEARING, BALL
-
87710564 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
93234205 RING, RETAININGRING, RETAINING
-
103234621 SPRING, COMPRESSIONSPRING, COMPRESSION
-
113234192 SCREWSCREW
-
123234201 PIN, ROLLERPIN, ROLLER
-
133234197 ROLLER, CLUTCHROLLER, CLUTCH
-
143234202 PIN, SPRING SLOTTEDPIN, SPRING SLOTTED
-
153211123 BELT, DRIVEBELT, DRIVE
-
165250562 WASHER, DOMEDWASHER, DOMED
-
177552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
187518935 BOLTBOLT
