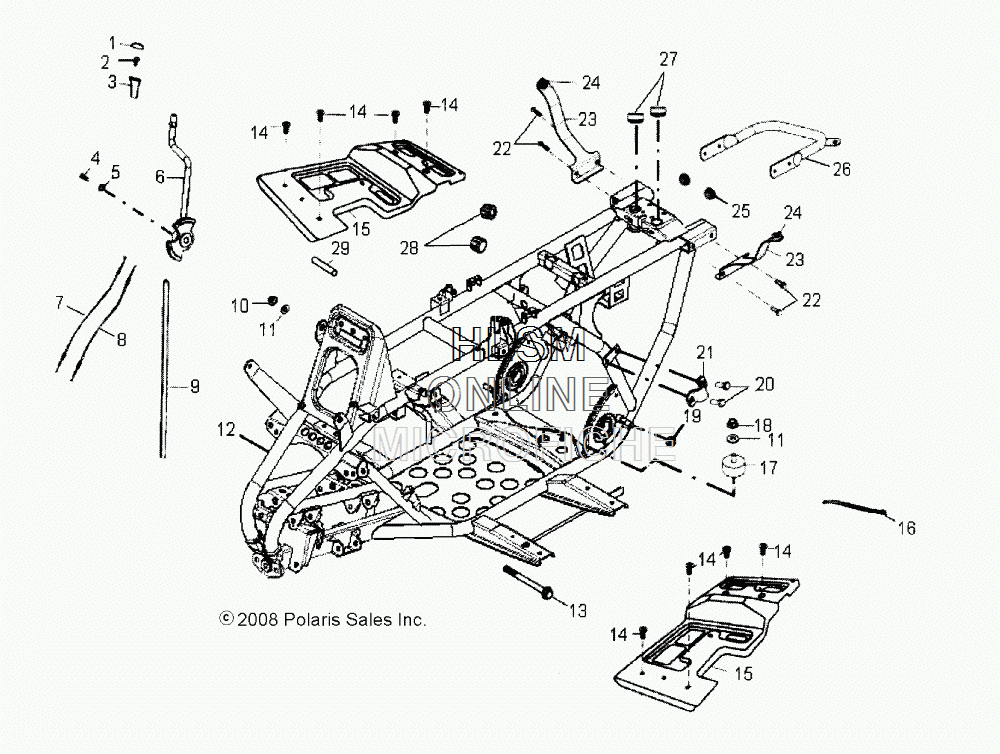

FRAME для Polaris PHOENIX 200 (A11PB20AB) - 2011 года выпуска
-
№АртикулНазвание
-
10450967 COVERCOVER
-
20454011 BOLTBOLT
-
30452168 KNOB, TRANSMISSION LEVERKNOB, TRANSMISSION LEVER
-
40450298 BOLTBOLT
-
50452198 WASHER, FLATWASHER, FLAT
-
60454232 LEVER, SHIFTLEVER, SHIFT
-
70454233 CABLE, SHIFTCABLE, SHIFT
-
80454234 CABLE, SHIFTCABLE, SHIFT
-
90452603 TRIM, RUBBERTRIM, RUBBER
-
100450276 NUT, LOCKNUT, LOCK
-
110450279 WASHERWASHER
-
120454235-067 ASM., FRAME (BLACK)ASM., FRAME (BLACK)
-
130452599 BOLTBOLT
-
140453242 BOLTBOLT
-
150452594 PLATE, FOOTWELLPLATE, FOOTWELL
-
160450559 STRAPSTRAP
-
170452592 MOUNT, ENGINEMOUNT, ENGINE
-
180453866 NUTNUT
-
190452799 NUTNUT
-
200453762 BOLTBOLT
-
210452602 BRACKET, KICK STARTBRACKET, KICK START
-
220453126 BOLTBOLT
-
230452593 BRACKETBRACKET
-
240450800 RUBBER, MOUNTRUBBER, MOUNT
-
250453125 CAP, RUBBERCAP, RUBBER
-
260453261-067 BAR, GRAB, REAR (BLACK)BAR, GRAB, REAR (BLACK)
-
270450290 RUBBER, SEATRUBBER, SEAT
-
280452591 GROMMET, SEATGROMMET, SEAT
-
290452596 DAMPNER, FOOT BRAKE LEVERDAMPNER, FOOT BRAKE LEVER
