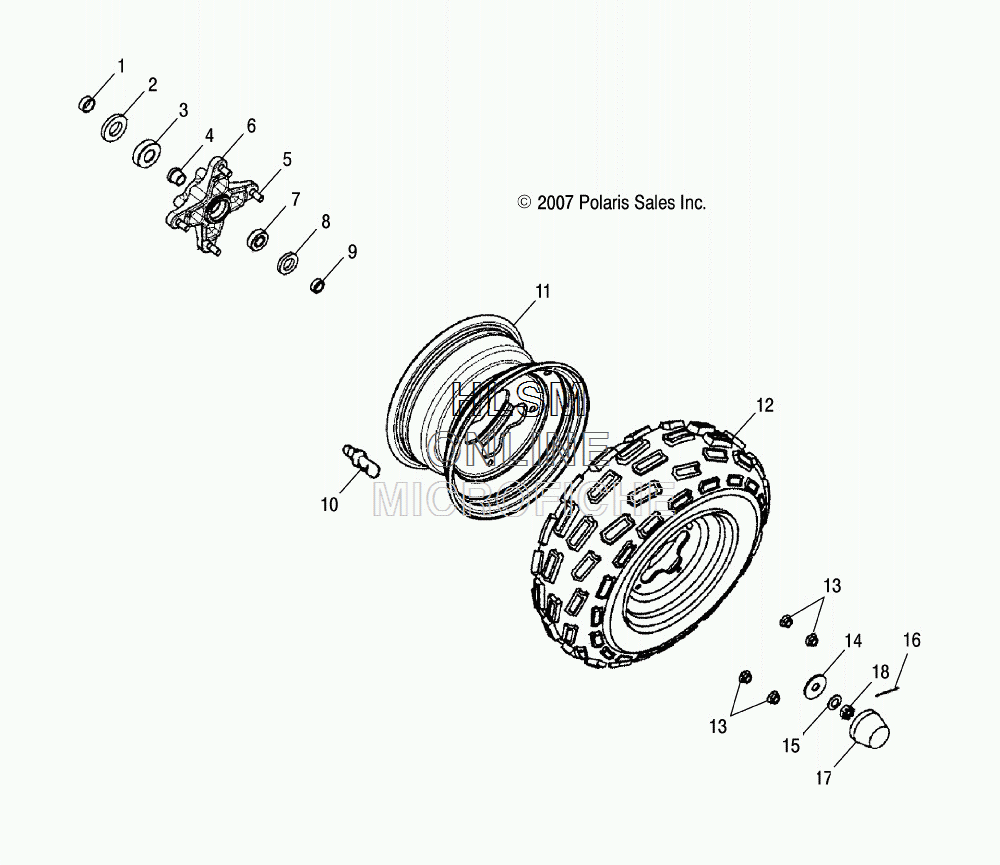

FRONT WHEELS для Polaris PHOENIX 200 (A11PB20AB) - 2011 года выпуска
-
№АртикулНазвание
-
10453005 SPACER, COLLAR, INSIDESPACER, COLLAR, INSIDE
-
20453008 SEAL, OIL, OUTSIDESEAL, OIL, OUTSIDE
-
30454238 BEARING, BALLBEARING, BALL
-
40453006 SPACER, COLLAR, CENTERSPACER, COLLAR, CENTER
-
50453054 BOLT, STUD, WHEELBOLT, STUD, WHEEL
-
60452273 ASM., HUB, FRONT (INCL. 5)ASM., HUB, FRONT (INCL. 5)
-
70453004 BEARING, BALLBEARING, BALL
-
80453003 SEAL, OILSEAL, OIL
-
90453007 SPACER, COLLAR, OUTSIDESPACER, COLLAR, OUTSIDE
-
100454715 VALVE, RIMVALVE, RIM
-
110453000-067 RIM, WHEEL (BLACK)RIM, WHEEL (BLACK)
-
120452786 TIRE, DURO, 21X7-10TIRE, DURO, 21X7-10
-
130453213 NUT, LOCKNUT, LOCK
-
140453001 WASHER, FLATWASHER, FLAT
-
150452663 WASHERWASHER
-
160450395 PIN, COTTERPIN, COTTER
-
170452661 CAP, HUBCAP, HUB
-
180453002 NUTNUT
