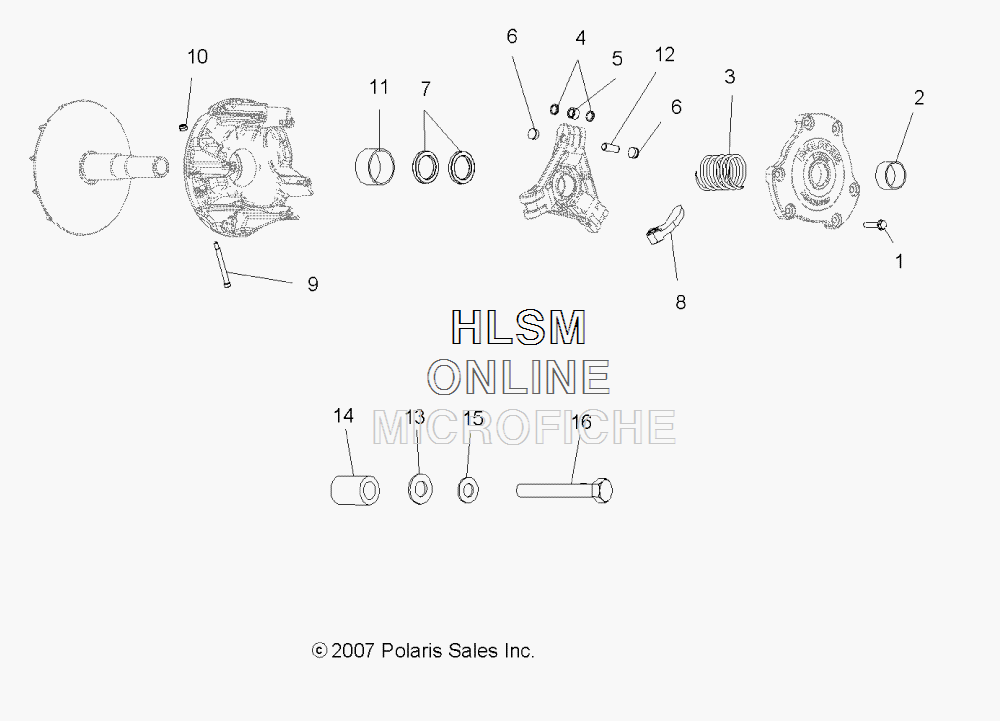

CLUTCH - PRIMARY для Polaris SPORTSMAN 400 HO 4X4 (A11MH46AX) - 2011 года выпуска
-
№АртикулНазвание
-
-1322682 ASM., DRIVE CLUTCH (INCL. 1,2,4-7,9-12)ASM., DRIVE CLUTCH (INCL. 1,2,4-7,9-12)
-
17518062 SCREWSCREW
-
23576510 BEARING, COVERBEARING, COVER
-
37042202 SPRING, CLUTCH, BLUE/GRAYSPRING, CLUTCH, BLUE/GRAY
-
45438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
51321457 ROLLER AND BUSHINGROLLER AND BUSHING
-
65431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
75210752 SPACER, .020SPACER, .020
-
75242981 SPACER, .025SPACER, .025
-
75210753 SPACER, .032SPACER, .032
-
75210754 SPACER, .050SPACER, .050
-
85632283 WEIGHT, SHIFT, 10-WHFWEIGHT, SHIFT, 10-WHF
-
97512266 BOLT, SHOULDERBOLT, SHOULDER
-
107541906 NUT, FLEXLOCNUT, FLEXLOC
-
113576504 BEARING, MOVEABLE, 1/2 INCHBEARING, MOVEABLE, 1/2 INCH
-
125020422 PIN, ROLLERPIN, ROLLER
-
135210748 WASHERWASHER
-
145430261 BUSHINGBUSHING
-
157575202 WASHER, LOCKWASHER, LOCK
-
167512566 BOLTBOLT
