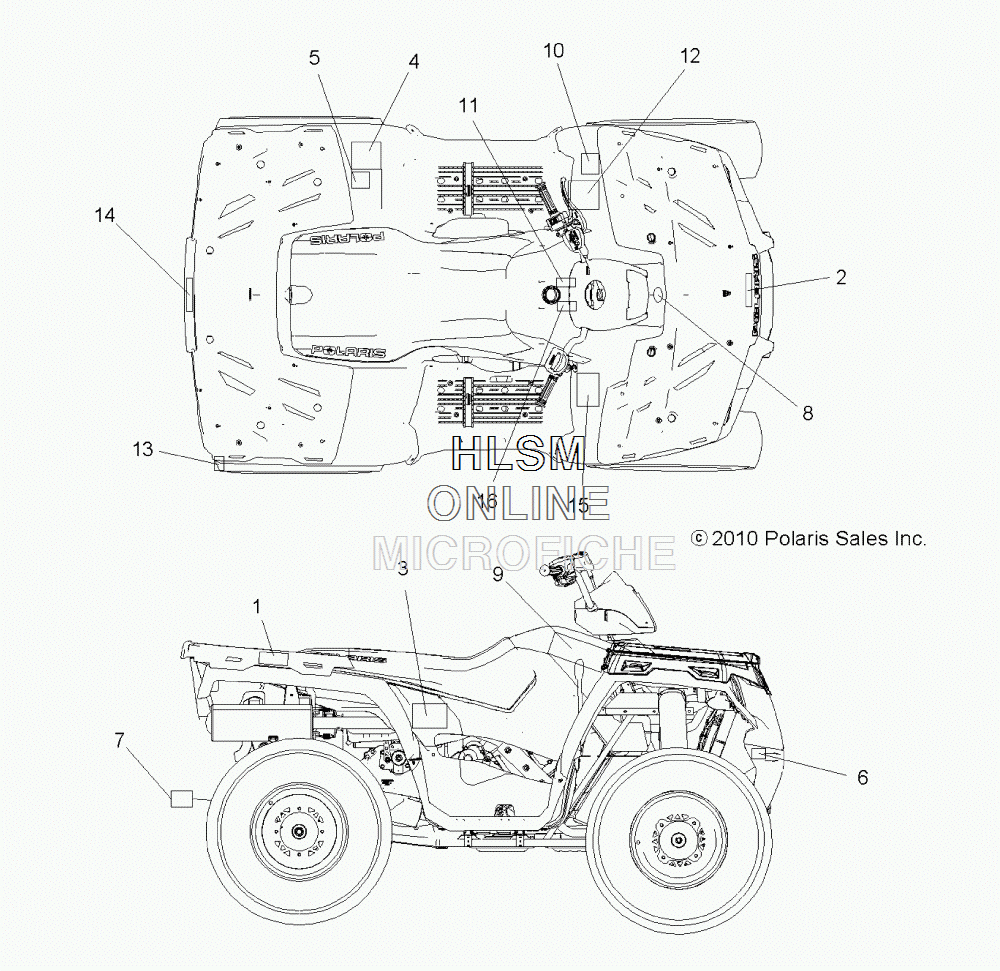

DECALS для Polaris SPORTSMAN 400 HO 4X4 (A11MH46AX) - 2011 года выпуска
-
№АртикулНазвание
-
17174412 DECAL, REFLECTOR, REDDECAL, REFLECTOR, RED
-
27172572 DECAL, WARNING FRONT AND REAR RACKDECAL, WARNING FRONT AND REAR RACK
-
37177065 DECAL, REAR, 'AWD', LEFT HANDDECAL, REAR, 'AWD', LEFT HAND
-
37177066 DECAL, REAR, 'AWD', RIGHT HANDDECAL, REAR, 'AWD', RIGHT HAND
-
47175642 DECAL, WARNING, TIRE/LOADDECAL, WARNING, TIRE/LOAD
-
57175378 DECAL, NO PASSENGER WARNINGDECAL, NO PASSENGER WARNING
-
62670134 ASM., , REFLECTOR, AMBERASM., , REFLECTOR, AMBER
-
77170911 DECAL, HITCH, 1225 LBS. (BUILT 1/03/11 AND BEFORE)DECAL, HITCH, 1225 LBS. (BUILT 1/03/11 AND BEFORE)
-
77174159 DECAL, HITCH, 1225 LBS. (BUILT 1/04/11 AND AFTER)DECAL, HITCH, 1225 LBS. (BUILT 1/04/11 AND AFTER)
-
87078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
97177059 DECAL, SIDE, 'SPORTSMAN 400', LEFT HANDDECAL, SIDE, 'SPORTSMAN 400', LEFT HAND
-
97177060 DECAL, SIDE, 'SPORTSMAN 400', RIGHT HANDDECAL, SIDE, 'SPORTSMAN 400', RIGHT HAND
-
107175374 DECAL, AGE WARNING, 16+DECAL, AGE WARNING, 16+
-
117175486 DECAL, WARNING, OVERRIDEDECAL, WARNING, OVERRIDE
-
127175376 DECAL, WARNING, GENERAL, 1-UPDECAL, WARNING, GENERAL, 1-UP
-
137175618 DECAL, FLAGDECAL, FLAG
-
147172572 DECAL, WARNING, RACK, FRONT/REARDECAL, WARNING, RACK, FRONT/REAR
-
157175511 DECAL, WARNING, DISCRETIONARYDECAL, WARNING, DISCRETIONARY
-
167175485 DECAL, CAUTION, 4X4, AWDDECAL, CAUTION, 4X4, AWD
