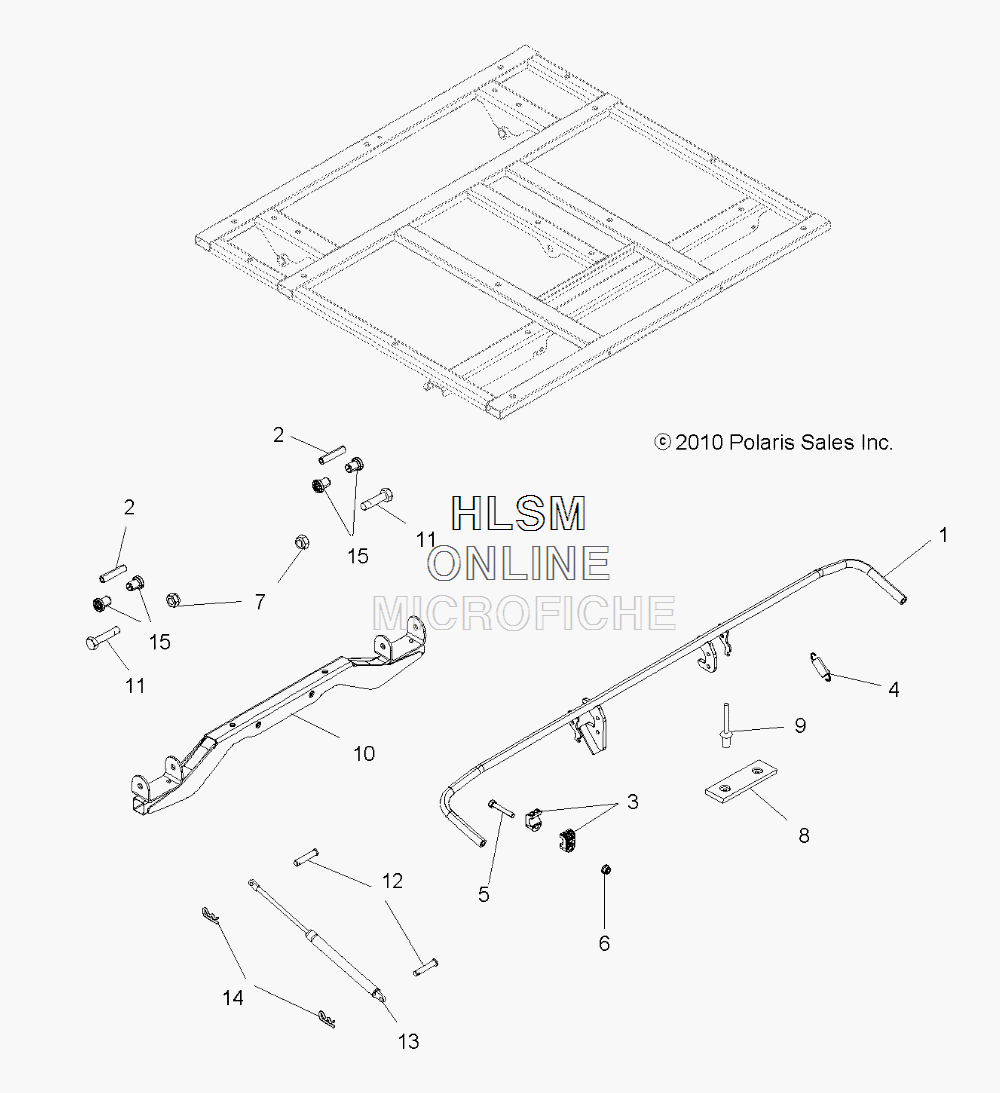

DUMP BOX LEVER AND STRUT MOUNT для Polaris SPORTSMAN 800 EFI 6X6 [A12CF76AA] - 2012 года выпуска
-
№АртикулНазвание
-
11016753-067 LATCH, BOX, BLACKLATCH, BOX, BLACK
-
25020826 SHAFT, A-ARM, SHORTSHAFT, A-ARM, SHORT
-
35434226 BUSHING, BOX, LATCHBUSHING, BOX, LATCH
-
47041687 SPRINGSPRING
-
57515319 BOLTBOLT
-
67542343 NUT, FLANGENUT, FLANGE
-
77542439 NUT, NYLOKNUT, NYLOK
-
85413690 BUMPER, BOX BASEBUMPER, BOX BASE
-
97621418 RIVETRIVET
-
101016882-067 FRAME, PIVOT, BOX, BLACKFRAME, PIVOT, BOX, BLACK
-
117518263 SCREWSCREW
-
127661878 PIN, CLEVISPIN, CLEVIS
-
137043232 SHOCK, DUMP BOXSHOCK, DUMP BOX
-
147661067 CLIPCLIP
-
155438895 BUSHING, A-ARM, SHORT, BLACKBUSHING, A-ARM, SHORT, BLACK
