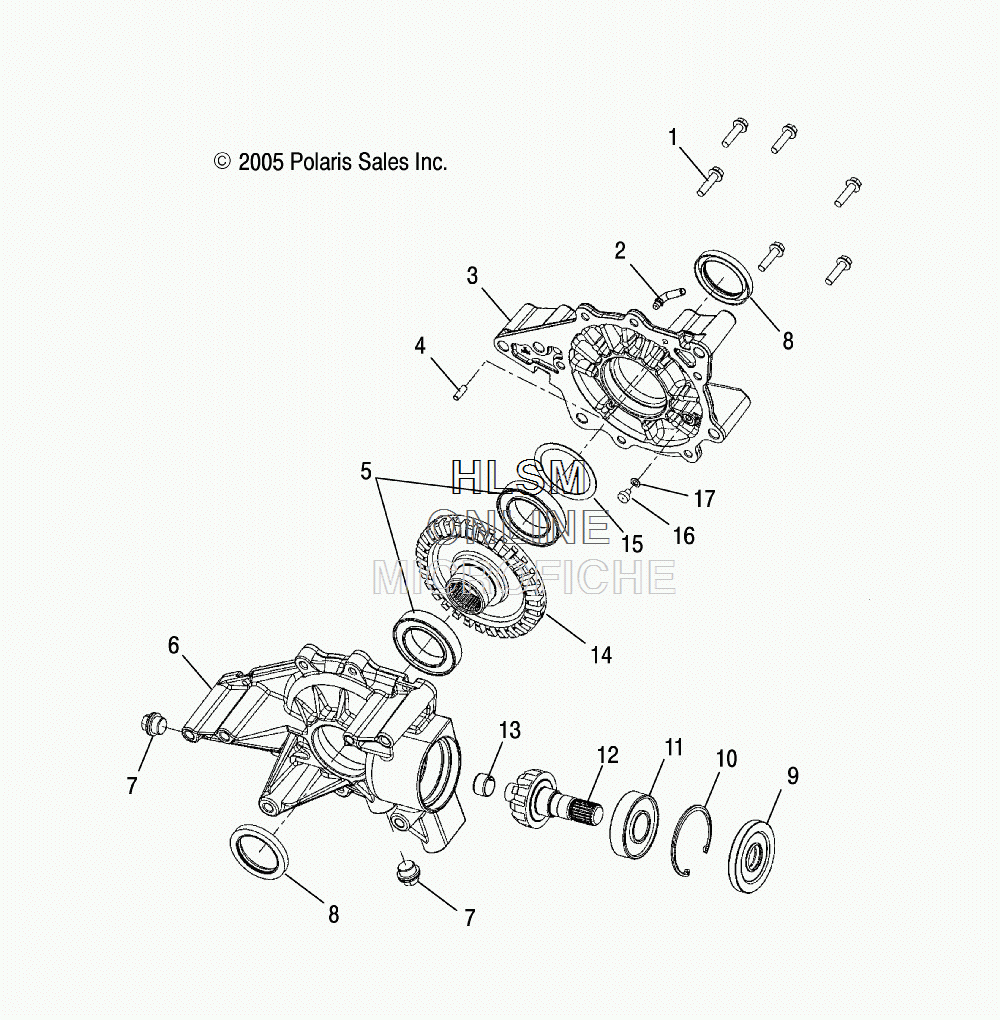

GEARCASE - REAR - INTERNAL COMPONENTS для Polaris SPORTSMAN 800 EFI 6X6 [A12CF76AA] - 2012 года выпуска
-
№АртикулНазвание
-
51332660 ASM., GEARCASE, REAR, DIC (INCL. ALL)ASM., GEARCASE, REAR, DIC (INCL. ALL)
-
17519008 BOLT, FLANGEBOLT, FLANGE
-
23234673 TUBE, VENTTUBE, VENT
-
33234659 COVER, REAR, LEFT HANDCOVER, REAR, LEFT HAND
-
43234670 PIN, DOWELPIN, DOWEL
-
53234662 BEARING, BALLBEARING, BALL
-
63234664 GEARCASE, REAR, RIGHT HANDGEARCASE, REAR, RIGHT HAND
-
77519007 PLUGPLUG
-
75413615 O-RINGO-RING
-
83234660 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
93234669 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
103234667 RING, RETAININGRING, RETAINING
-
113234666 BEARING, BALLBEARING, BALL
-
123234668 SHAFT, PINION, 10TSHAFT, PINION, 10T
-
133234665 BUSHINGBUSHING
-
143234663 GEAR, 31TGEAR, 31T
-
153234661 SHIMSHIM
-
163234671 BUTTON, THRUSTBUTTON, THRUST
-
173234672 SHIMSHIM
