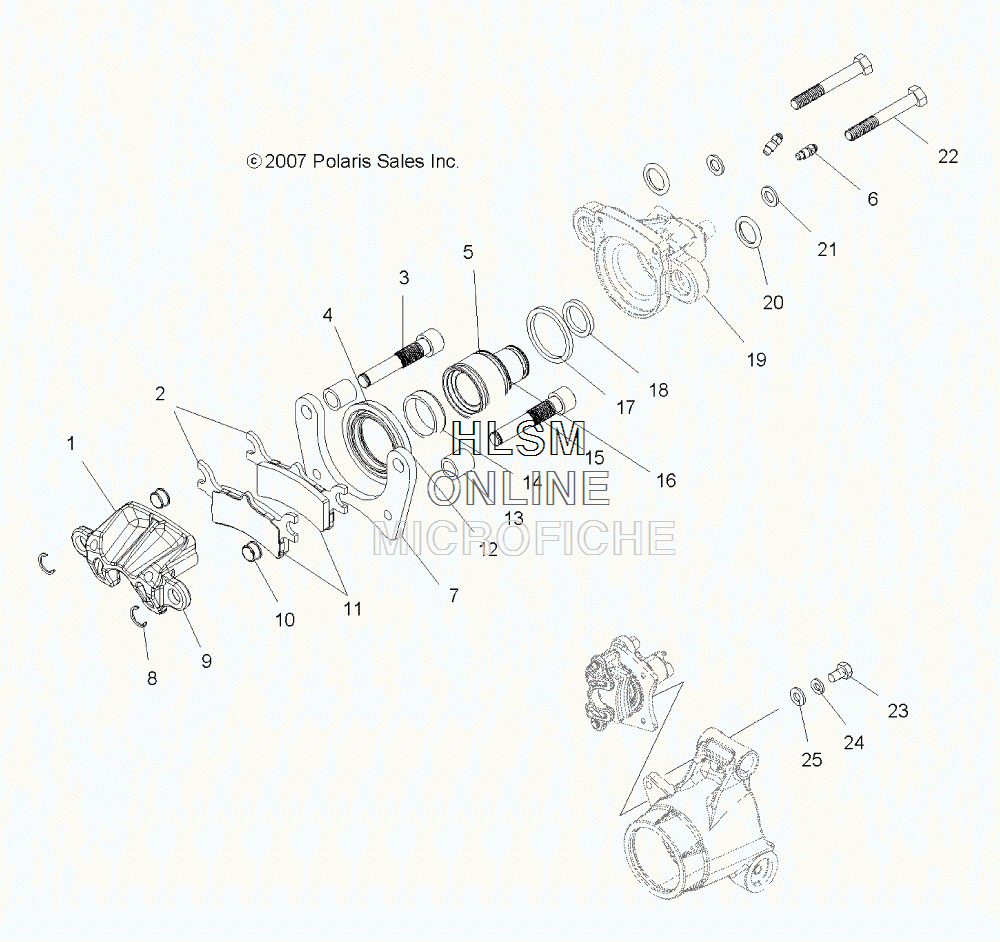

BRAKE - REAR CALIPER для Polaris SPORTSMAN FOREST 800 6X6 - SAGEBRUSH GREEN METALLIC [A13CF76FF] - 2013 года выпуска
-
№АртикулНазвание
-
1911075 ASM., CALIPER (INCL. 1-22) (MID RIGHT HAND, REAR RIGHT HAND)ASM., CALIPER (INCL. 1-22) (MID RIGHT HAND, REAR RIGHT HAND)
-
11911478 ASM., CALIPER (INCL. 1-22) (REAR LEFT HAND)ASM., CALIPER (INCL. 1-22) (REAR LEFT HAND)
-
12201873 KIT, ANVIL BODY (INCL. 8,9,10,21,22)KIT, ANVIL BODY (INCL. 8,9,10,21,22)
-
22202414 KIT, ASM., BRAKE PAD (INCL. 11)KIT, ASM., BRAKE PAD (INCL. 11)
-
32201870 KIT, SLIDE BOLT (INCL. 8,10,13,15,20)KIT, SLIDE BOLT (INCL. 8,10,13,15,20)
-
42201872 KIT, SEAL (INCL. 12,17,18)KIT, SEAL (INCL. 12,17,18)
-
52201869 KIT, PISTON AND SEAL (INCL. 12,14,16,17,18)KIT, PISTON AND SEAL (INCL. 12,14,16,17,18)
-
61910538 FITTING, BLEED, COMPACTFITTING, BLEED, COMPACT
-
237512457 SCREWSCREW
-
247552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
257556188 WASHER, FLATWASHER, FLAT
