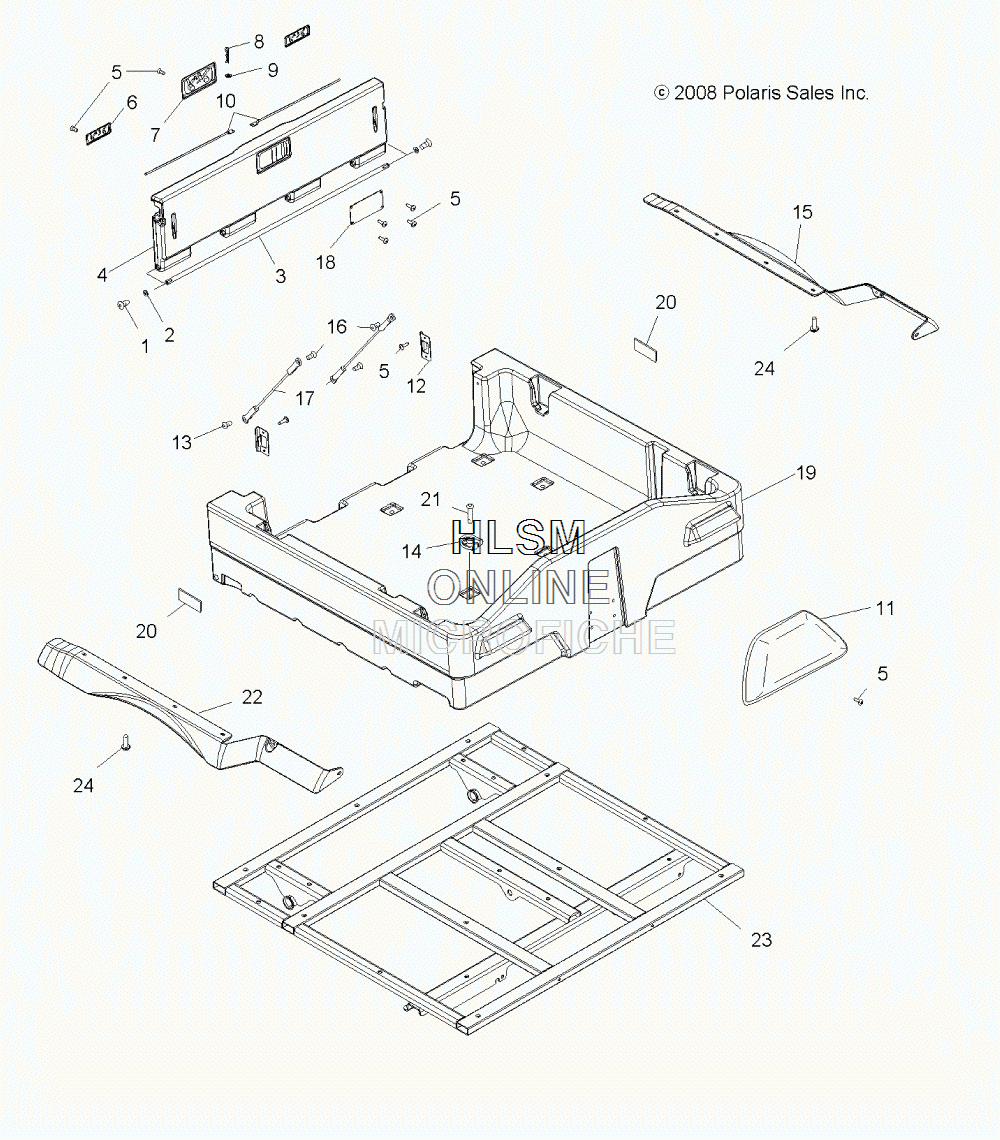

DUMP BOX ASSY. для Polaris SPORTSMAN FOREST 800 6X6 - SAGEBRUSH GREEN METALLIC [A13CF76FF] - 2013 года выпуска
-
№АртикулНазвание
-
17515177 SCREWSCREW
-
27558221 WASHERWASHER
-
35132358 ROD, HINGEROD, HINGE
-
45433388 TAILGATETAILGATE
-
57517561 SCREWSCREW
-
65433656 LATCHLATCH
-
75433655 LATCH, PADDLELATCH, PADDLE
-
87661644 PIN, HITCHPIN, HITCH
-
97556143 WASHER, RUBBERWASHER, RUBBER
-
105132373 SHAFT, LATCHSHAFT, LATCH
-
112684915-070 ASM., BACKREST (BLACK) (INCL. COVER)ASM., BACKREST (BLACK) (INCL. COVER)
-
112681664-070 COVERING, BACKREST (BLACK)COVERING, BACKREST (BLACK)
-
125243304 BRACKET, BOX LATCHBRACKET, BOX LATCH
-
137517938 SCREWSCREW
-
147081101 RING, TIE DOWNRING, TIE DOWN
-
155437873-070 GUARD, MUD, BOX, LEFT HAND (BLACK)GUARD, MUD, BOX, LEFT HAND (BLACK)
-
167517742 SCREWSCREW
-
177080881 CABLE, TAILGATECABLE, TAILGATE
-
185244068-067 COVER, TAILGATE (BLACK)COVER, TAILGATE (BLACK)
-
195439200 BOX, MOLDED (BLACK) (INCL. WARNING DECAL)BOX, MOLDED (BLACK) (INCL. WARNING DECAL)
-
207079925 DECAL, REFLECTOR (RED)DECAL, REFLECTOR (RED)
-
217517686 SCREWSCREW
-
225437874-070 GUARD, MUD, BOX, RIGHT HAND (BLACK)GUARD, MUD, BOX, RIGHT HAND (BLACK)
-
231016881-067 SUPPORT, BOX (BLACK)SUPPORT, BOX (BLACK)
-
247519047 SCREWSCREW
