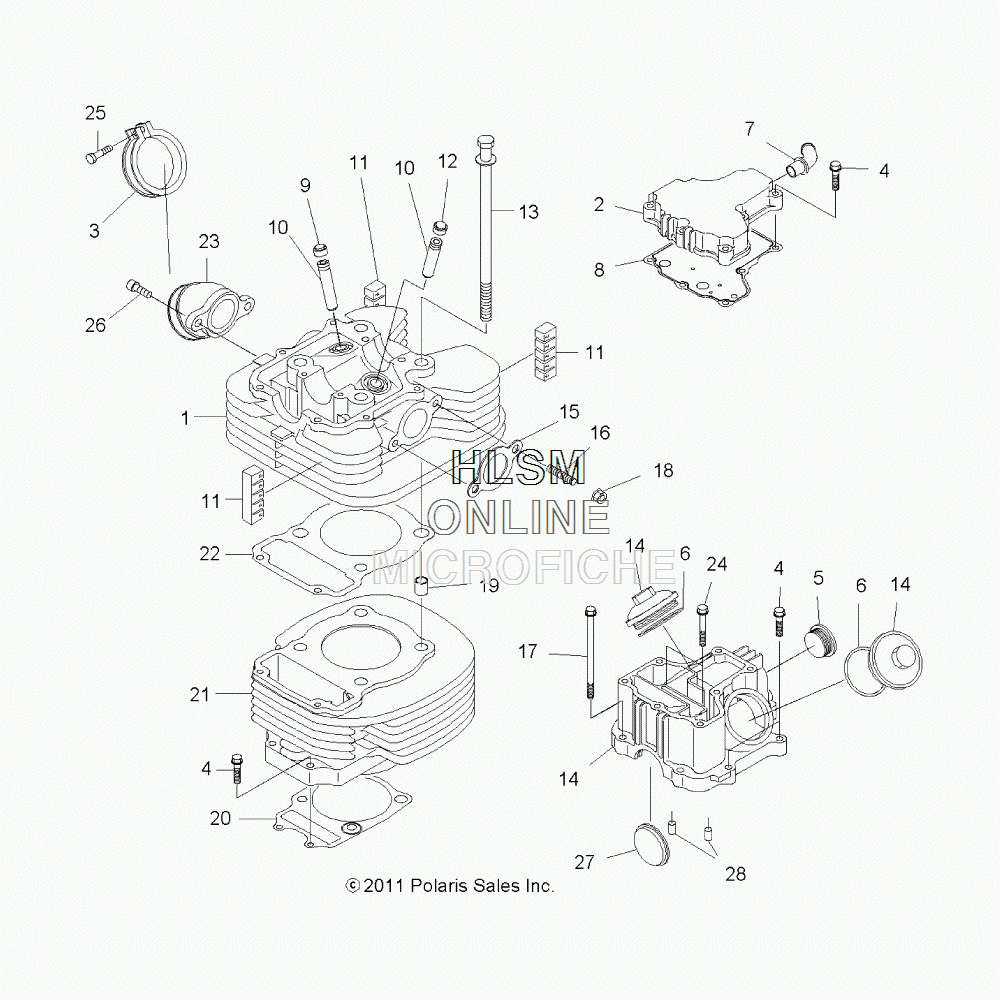

CYLINDER HEAD W/ CYLINDER для Polaris TRAIL BLAZER 330 - BOARDWALK BLUE [A13NA32AA] - 2013 года выпуска
-
№АртикулНазвание
-
13090321 ASM., CYLINDER HEAD (INCL. 9,10,12,14,16,28)ASM., CYLINDER HEAD (INCL. 9,10,12,14,16,28)
-
23089271 ASM., COVER, BREATHER (INCL. 7)ASM., COVER, BREATHER (INCL. 7)
-
33090180 ASM., ADAPTER BAND (INCL. 25)ASM., ADAPTER BAND (INCL. 25)
-
43084874 BOLT, FLANGEBOLT, FLANGE
-
53089272 ASM., PLUGASM., PLUG
-
63086414 O-RINGO-RING
-
73085850 ASM., PIPEASM., PIPE
-
83087034 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
93084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
103084994 GUIDE, VALVEGUIDE, VALVE
-
113084798 FIN, DAMPER AFIN, DAMPER A
-
123084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
133086418 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
143087259 COVER, VALVECOVER, VALVE
-
153086421 GASKET, EXHAUSTGASKET, EXHAUST
-
163090095 STUDSTUD
-
173087160 BOLT, FLANGEBOLT, FLANGE
-
183082910 NUT, FLANGENUT, FLANGE
-
193087266 KNOCK, PIPEKNOCK, PIPE
-
203086407 GASKET, CYLINDERGASKET, CYLINDER
-
213087236 UNIT, CYLINDERUNIT, CYLINDER
-
223087238 GASKET, HEADGASKET, HEAD
-
233087050 ASM., ADAPTERASM., ADAPTER
-
243087159 BOLT, FLANGEBOLT, FLANGE
-
253081497 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
263081330 BOLT, SOCKET, HEADBOLT, SOCKET, HEAD
-
273086416 GASKET, CAMGASKET, CAM
-
283087275 KNOCK, PIPEKNOCK, PIPE
