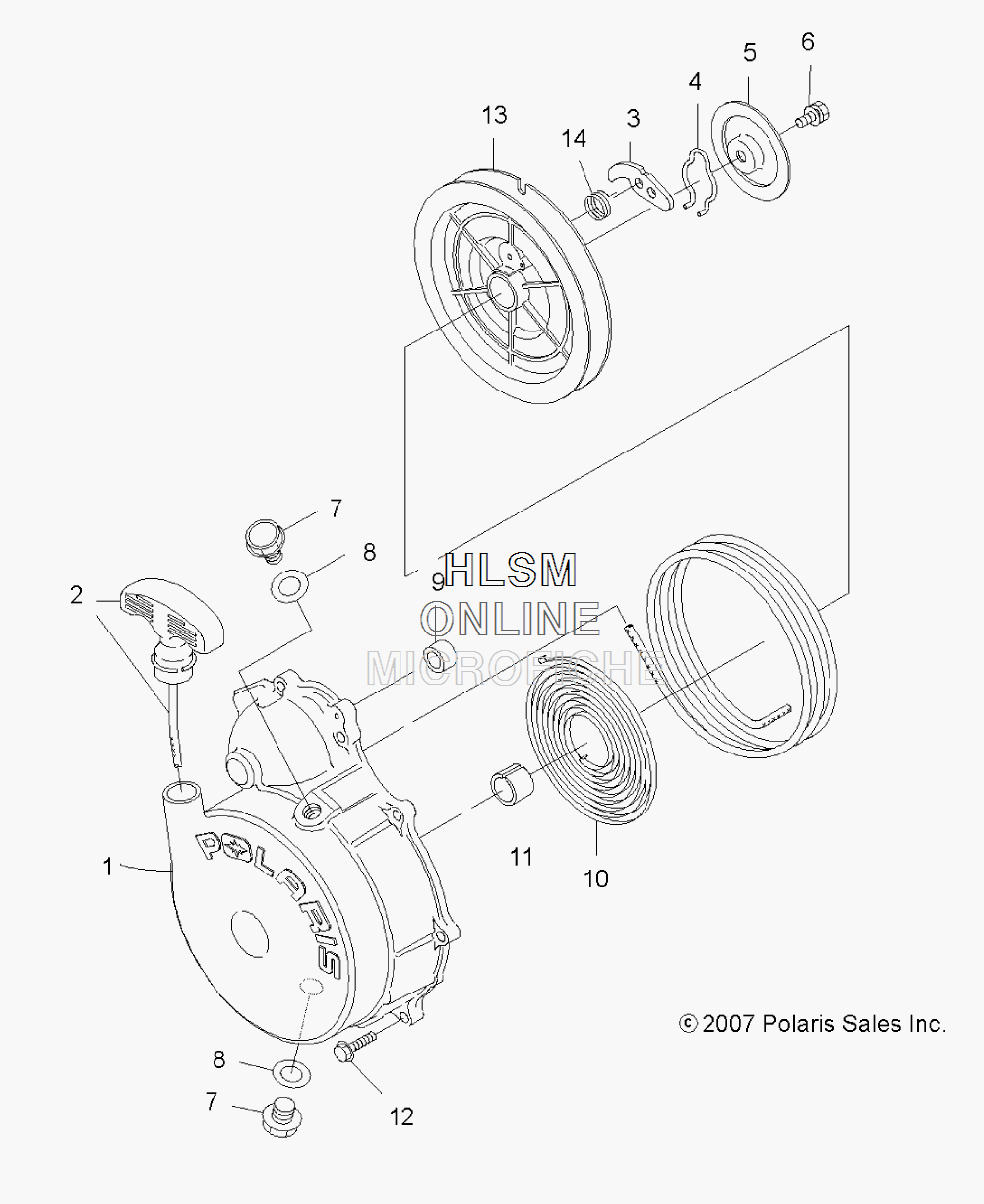

RECOIL STARTER для Polaris TRAIL BLAZER 330 - BOARDWALK BLUE [A13NA32AA] - 2013 года выпуска
-
№АртикулНазвание
-
13087163 ASM., RECOIL (INCL. 1-6,9-11,13,14)ASM., RECOIL (INCL. 1-6,9-11,13,14)
-
13087164 ASM., STARTER CASE (INCL. 11)ASM., STARTER CASE (INCL. 11)
-
23085083 ASM., ROPE (INCL. HANDLE)ASM., ROPE (INCL. HANDLE)
-
33083378 RATCHETRATCHET
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53089842 PLATE, FRICTIONPLATE, FRICTION
-
63089843 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
73086749 PLUGPLUG
-
83082956 GASKETGASKET
-
93083669 BUSHING, STARTERBUSHING, STARTER
-
103083185 SPRING, SPIRALSPRING, SPIRAL
-
113084750 BUSHINGBUSHING
-
123084877 BOLT, FLANGEBOLT, FLANGE
-
133084822 ASM., REELASM., REEL
-
143083463 SPRING, RETURNSPRING, RETURN
