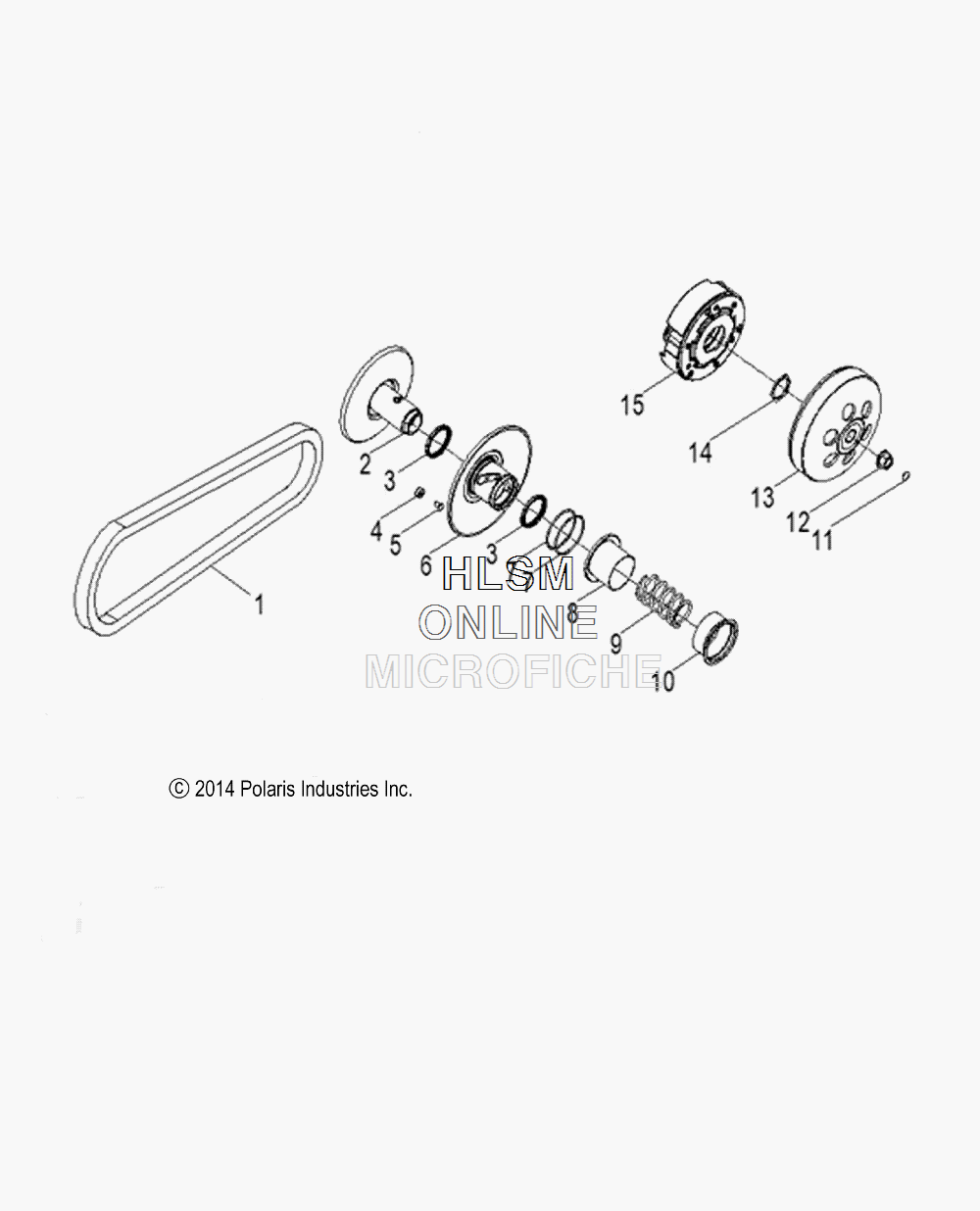

CLUTCH- SECONDARY для Polaris RZR 170 VOODOO BLUE [R14VA17AF] - 2014 года выпуска
-
№АртикулНазвание
-
10454497 BELT, DRIVEBELT, DRIVE
-
20454498 ASM., DRIVEN SHEAVEASM., DRIVEN SHEAVE
-
30452493 SEAL, DRIVENSEAL, DRIVEN
-
40454499 GUIDE, ROLLER, CLUTCHGUIDE, ROLLER, CLUTCH
-
50454500 PIN, GUIDE, CLUTCHPIN, GUIDE, CLUTCH
-
60454501 ASM., SHEAVE, MOVEABLEASM., SHEAVE, MOVEABLE
-
70454502 O-RINGO-RING
-
80454525 SEAL, COLLARSEAL, COLLAR
-
90454526 SPRING, CLUTCHSPRING, CLUTCH
-
100454527 SEAL, COLLAR, CLUTCHSEAL, COLLAR, CLUTCH
-
110454634 O-RINGO-RING
-
120450529 NUT, FLANGENUT, FLANGE
-
130454528 CLUTCH, OUTERCLUTCH, OUTER
-
140454529 NUTNUT
-
150454530 PLATE, DRIVE CLUTCH, INNERPLATE, DRIVE CLUTCH, INNER
-
160454531 BUSHING, RUBBER, CLUTCHBUSHING, RUBBER, CLUTCH
-
170454532 WEIGHT, CLUTCHWEIGHT, CLUTCH
-
180454533 SPRING, CLUTCHSPRING, CLUTCH
-
190454534 PLATE, CLUTCH SIDEPLATE, CLUTCH SIDE
-
200450052 CLIP, CIR, EXTERNALCLIP, CIR, EXTERNAL
-
210454535 ASM., DRIVEN CLUTCH (INCL. 15-20)ASM., DRIVEN CLUTCH (INCL. 15-20)
