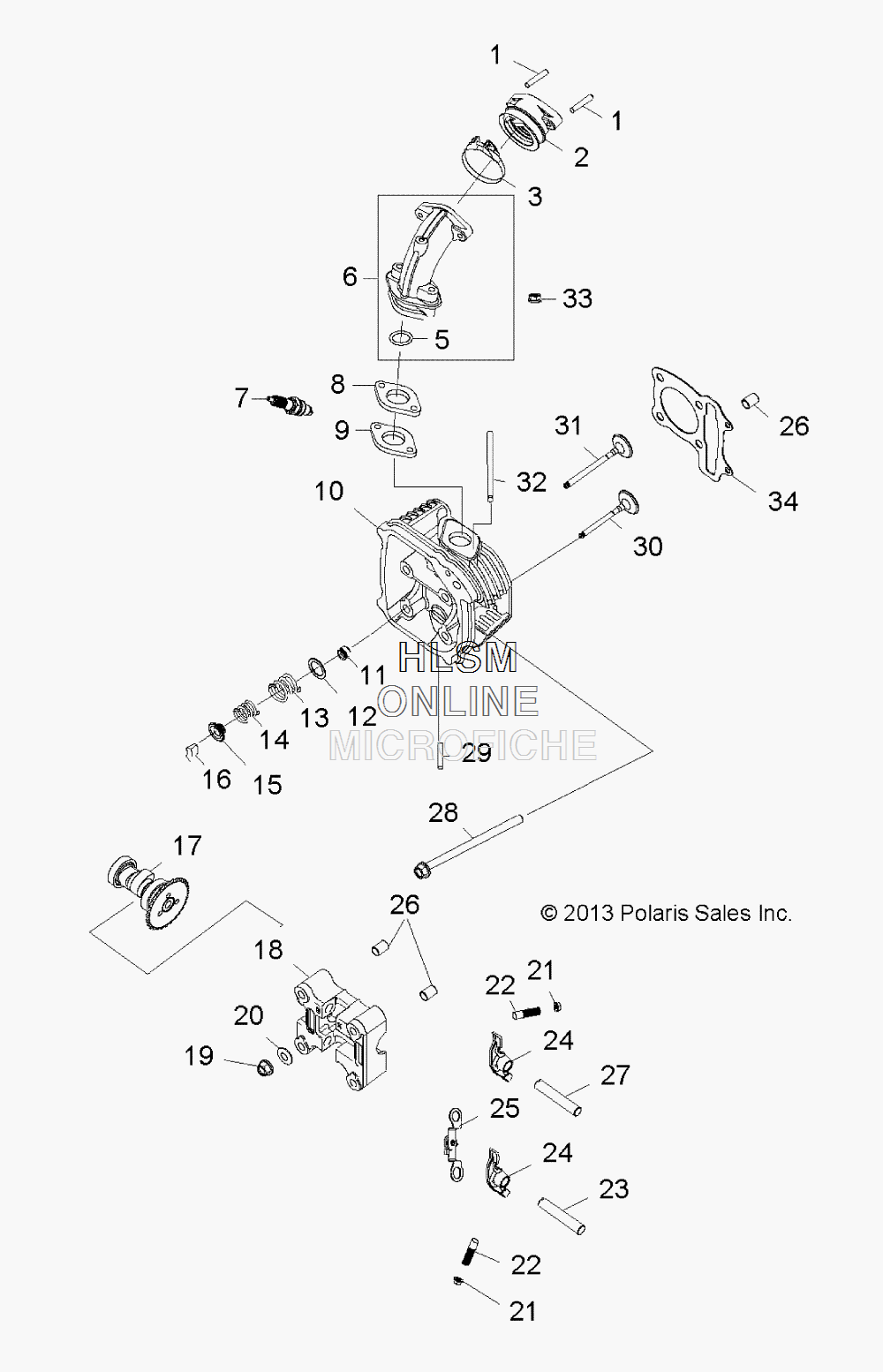

CYLINDER HEAD W/ VALVES для Polaris RZR 170 VOODOO BLUE [R14VA17AF] - 2014 года выпуска
-
№АртикулНазвание
-
-0454808 ASM., ENGINE, W/O CARB.ASM., ENGINE, W/O CARB.
-
10452405 STUDSTUD
-
20454511 ADAPTER, CARBURETORADAPTER, CARBURETOR
-
30454512 CLAMP, HOSECLAMP, HOSE
-
50452459 O-RINGO-RING
-
60454513 ASM., MANIFOLD, INTAKEASM., MANIFOLD, INTAKE
-
70453034 PLUG, SPARKPLUG, SPARK
-
80453449 INSULATOR, MANIFOLDINSULATOR, MANIFOLD
-
90453451 GASKET, MANIFOLDGASKET, MANIFOLD
-
100454848 ASM., CYLINDER, HEAD (INCL. 11-16,30,31)ASM., CYLINDER, HEAD (INCL. 11-16,30,31)
-
110452390 SEAL, VALVESEAL, VALVE
-
120452388 WASHER, VALVE, SPRING, OUTERWASHER, VALVE, SPRING, OUTER
-
130454515 SPRING, VALVE, OUTERSPRING, VALVE, OUTER
-
140454516 SPRING, VALVE, INNERSPRING, VALVE, INNER
-
150452387 RETAINER, VALVE, SPRINGRETAINER, VALVE, SPRING
-
160452389 CLIP, RETAINERCLIP, RETAINER
-
170454517 ASM., CAM SHAFTASM., CAM SHAFT
-
180454518 BRACKET, CAM SHAFTBRACKET, CAM SHAFT
-
190450268 NUT, FLANGENUT, FLANGE
-
200452425 WASHERWASHER
-
210452424 NUT, TAPPET ADJUSTNUT, TAPPET ADJUST
-
220452423 SCREW, TAPPET ADJUSTSCREW, TAPPET ADJUST
-
230454519 SHAFT, EXHAUST, ROCKER ARMSHAFT, EXHAUST, ROCKER ARM
-
240452409 ARM, VALVE, ROCKERARM, VALVE, ROCKER
-
250452414 ASM., DECOMP. RELEASEASM., DECOMP. RELEASE
-
260450142 PIN, DOWELPIN, DOWEL
-
270454520 SHAFT, INTAKE, ROCKER ARMSHAFT, INTAKE, ROCKER ARM
-
280454521 BOLTBOLT
-
290452398 BOLT, STUDBOLT, STUD
-
300454522 VALVE, EXHAUSTVALVE, EXHAUST
-
310454523 VALVE, INTAKEVALVE, INTAKE
-
320454524 BOLT, STUDBOLT, STUD
-
330450880 NUT, FLANGENUT, FLANGE
-
340454365 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
